Home Switch Micro switch Metal limit micro switch with screw

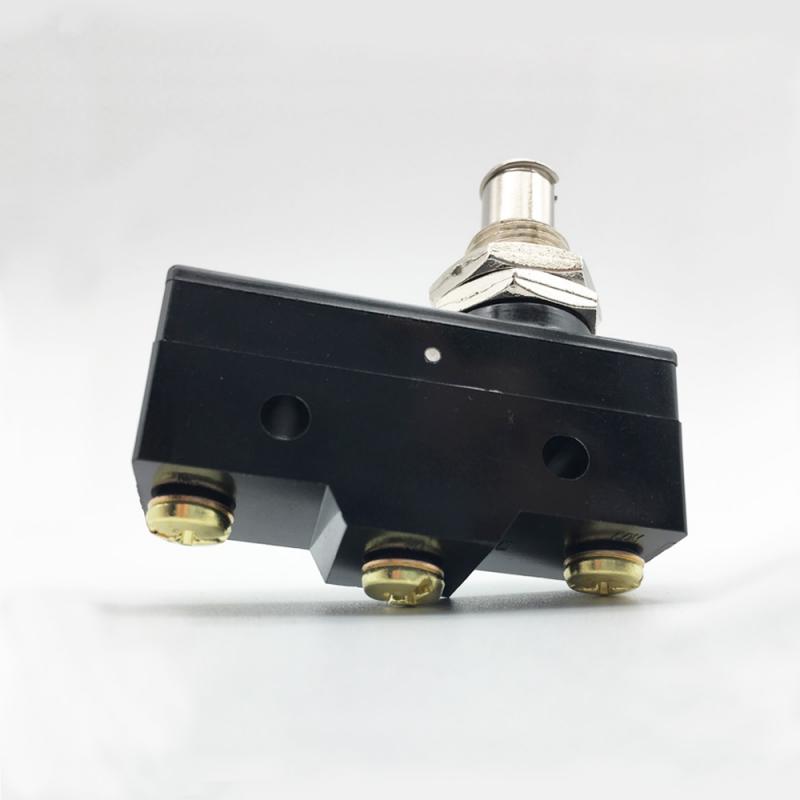

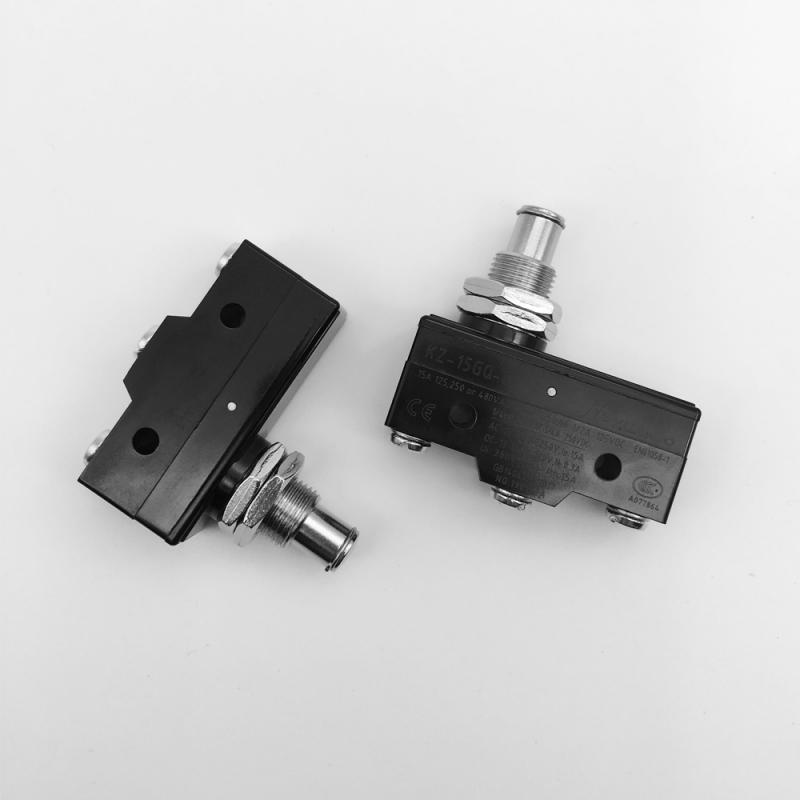

Metal limit micro switch with screw

Micro limit switch 15A /AC250V

Life: 40 0000times

  • Brand:

    Gangyuan
  • Item NO.:

    KZ-15GQ-B
  • Order(MOQ):

    500pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-15 working days for payment
  • Product Detail

15 A 125/250VAC 25T125 5E4 metal limit micro switch

Widely used on automotive fields and consumer electronics

 Micro switch datasheet


Product type Micro limit switch
Rating 15A 125/250V AC
Contact resistance ≤200mΩ
Insulation resistance ≥100MΩ
Insulation voltage
380V
Life 400 000 times
Operating temperature range -20℃~+80℃
Operating relative humidity 35%~85%RH

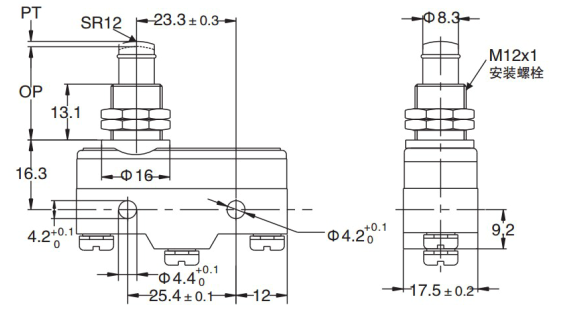

 Dimension

 Product features


1. Type: Limit Micro switch

2. Circuit Code: SPDT

3. Lever Type: wire soldering

4. Terminal Style: screws



 Micro switches application


Such as: Washing Machines– Micro switches are used at the power supply to turn the machine off/on, they are used for detecting switching power, angle of drums and filter.

They will detect the door open-close status and are used on the control panel buttons.


What is an electrical snap switch?


A manually operated electric switch with a blade which makes contact with a snap and in which the speed of making or breaking of the circuit is independent of the speed of operation of the switch.

  FAQ


1. Q: Are you Micro Switch manufacturer / factory? Location?

    A: Yes, three plants located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 10-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
