Home Switch Micro switch D48x d45x micro switch limit keyboard switch

D48x d45x micro switch limit keyboard switch

  1. Excellent R&D team, Clients design of micro switch requests are welcome.

2.The more quantity, the price more competitive.

3.Available free micro switch samples, within 3-5 working days.


  • Brand:

    Gangyuan
  • Item NO.:

    KZ-15GQ-B
  • Order(MOQ):

    1
  • Payment:

    EXW
  • Market Price:

    $1.78
  • Price:

    $1.78/pc
  • Price Range:500 - 5000/$1.78
  • Price Range:50 - 500/$1.89
  • Product Origin:

    Wenzhou China
  • Color:

    black
  • Shipping Port:

    Shanghai , Shenzhen
  • Lead Time:

    15 working days
  • Product Detail

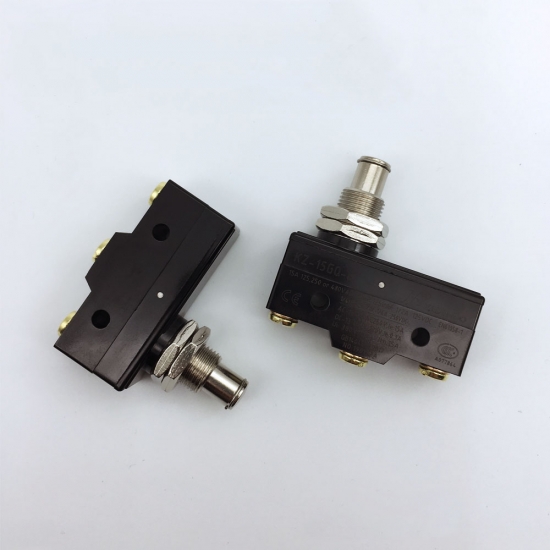

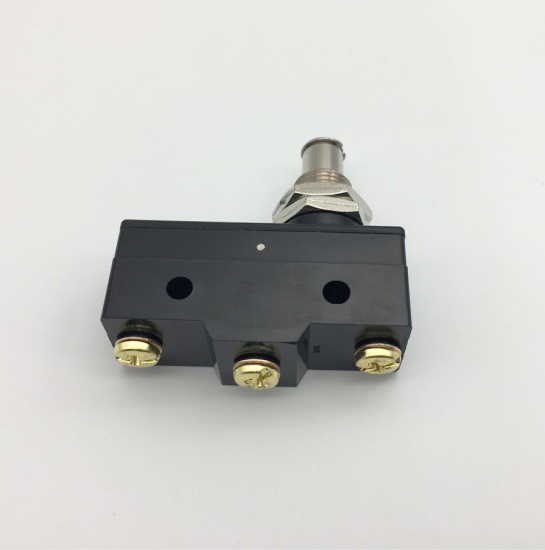

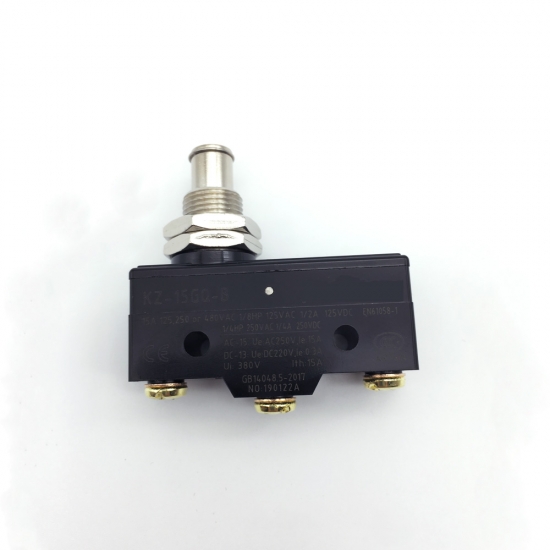

D48x d45x micro switch limit keyboard switch

Quick details:

Model Number: KZ-15GQ-B

Max. Current: 15A

Rating : 1.5A

Max. Voltage: AC 250V
Operating Temperature: -20℃to+80℃
Protection Level: High Level
Operating moisture: 35%~85%RH

Application type: AC-15  DC-13

Application speed: 0.1mm~1m/ Sec.

Load life Time: 400000 times
Insulation voltage: 380v

Dielectric Withstanding working period: 240 times /Min

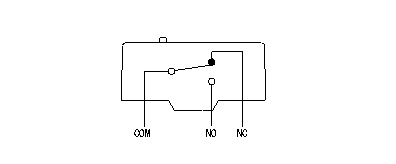

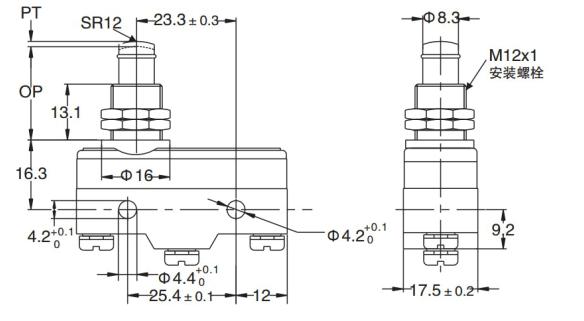

Drawing :

Package Type:
20pcs/plate per box 10box /CTN    G.W. 15 KGS

Certifications:
Factory passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
Products passed CE,ROHS, UL, REACH, ENEC, CQC,CCC

FAQ:
Q1: Where is your factory located ?

   A:We have three factories locates in Wenzhou,Hubei and Shenzhen

Q2: Is free samples available ?

   A: Sure

Q3:How to deal with the quality control ?
   A:  1) Factories all passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
        2) Supply kinds of tactile switch for famous brand such as SAMSUNG,LG,PANASONIC, MIDEA, HISENSE, SCHNEIDER, ARCADUAN,FLYCO, OMARON, CANON for more than 24 years.
        3) The the defected rate of production can be controlled within less than 0.1 %. once problem happen, we will offer you problem solution within 8 hours once get complaint and deal with the problem at customer processline or online guide.
Please set assurance to do business with us.
