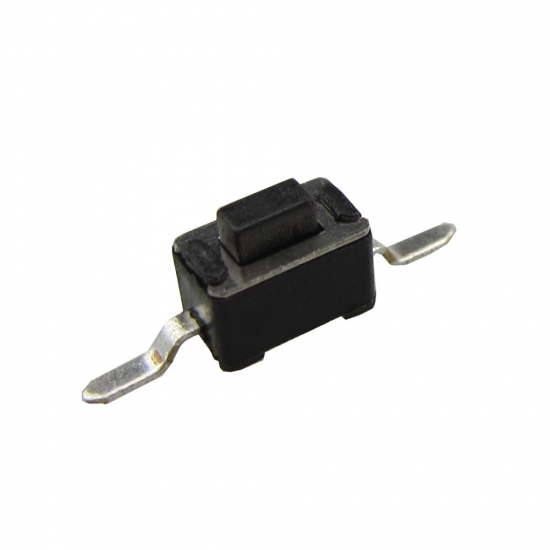

Factory 2 Pin 12V 50mA SMD Tact Switch

KAN3541-0501B: 3.5*3.5mm, DC 12v 50mA, SMD type.

  • Brand:

    Gangyuan
  • Item No.:

    KAN3541-0501B
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/Ningbo port
  • Min Order:

    1000
  • Lead Time:

    7-15working days
Product Details

Factory 2 Pin 12V 50mA SMD Tact Switch


Basic Information

                    P/N
KAN3541-0501B
Dimension
6x3.5mm
Height
4.3mm/5mm
Rating current
12VDC 50mA
Operating force
100gf, 160gf, 260gf(at customers request)
Life cycles
60,000/80,000/100,000cycles

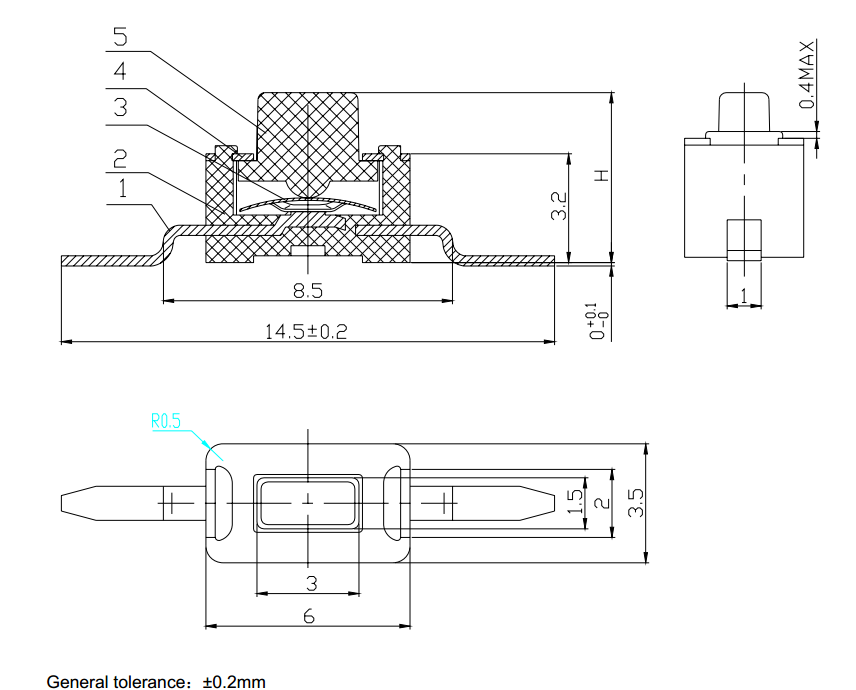

Outline Drawing




Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton


Appliance


Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
