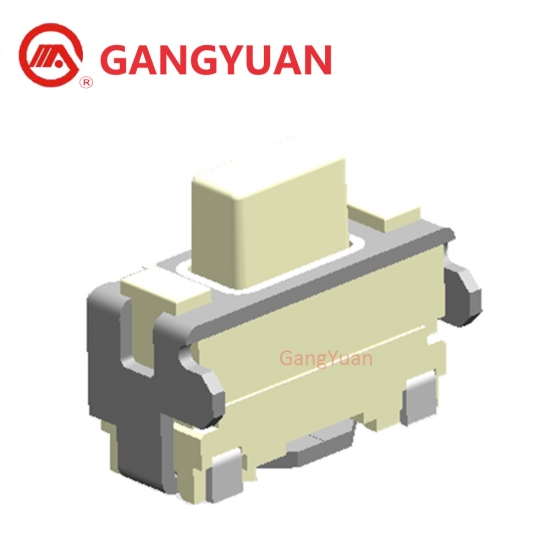

Hot intelligent electronic tactile button switch dustproof and waterproof SMD tact switch
Brand:
GangyuanItem NO.:
KAN0241FOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentHot intelligent electronic tactile button switch dustproof and waterproof SMD tact switch
Product Description
Tact Switch Features:
Tact Switch Specification:
|
Contact Rating |
Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min) |
|
Contact Resistance |
≤100mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Operating Force |
16±05N |
|
Operation life |
50,000cycles |
|
Height |
2.3mm~3.5mm |
|
Heat resistance |
80±2℃, 96h |
|
Sulfuration resistance |
40±2℃, 72h |
|
Free samples range |
30~50pcs |
OUTLINE,WIRING DIAGRAM,MOUNTING HOLE LAYOUT (UNIT:mm)
