Home Switch Tactile switch Device used Mini Switch Tactile Switch

Device used Mini Switch Tactile Switch

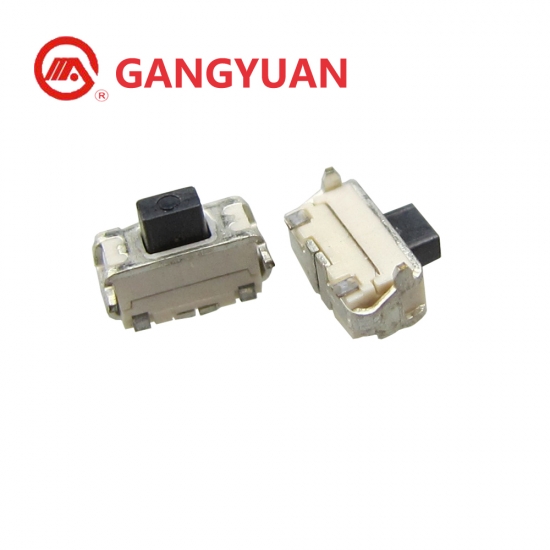

New Product Miniature Smart Device used Mini Switch Tactile Switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0241
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

New Product Miniature Smart Device used Mini Switch Tactile Switch

Basic Information

Operating temperature

-20℃to+70℃

Rated current

50mA.12V DC

Insulation resistance

100MΩ min.100V DC

Dielectric strength

250V AC for 1 min

Contact resistance

100m Ω max

Travel

0.25±0.1mm

Dimension

smd tactile micro push button switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
