6 pin auto lock key electrical dpst push button switch

30Vdc 6 pin auto lock key electrical dpst push button switch sell

  • Brand:

    Gangyuan
  • Item No.:

    PB12E06
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

30Vdc 6 pin auto lock key electrical dpst push button switch sell

Product Description:

Use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment, Industrial control.



Model Name:

Self lock switch

Model No.:

PB12E06

Dimension:

5.8x5.8mmx H

Operating force:

200±80gf

Life cycles:

10000 times

Operating Rate:

 35%-75%

Electrical rating:

DC 30V 0.1A

Insulation resistance:

≥100MΩ  100V DC

Withstand voltage:

250V  AC  / 1 min

Contact resistance:

≤100mΩ

Full travel :

0.30±0.1mm

Return Force:

≥ 20gf



Dimension:

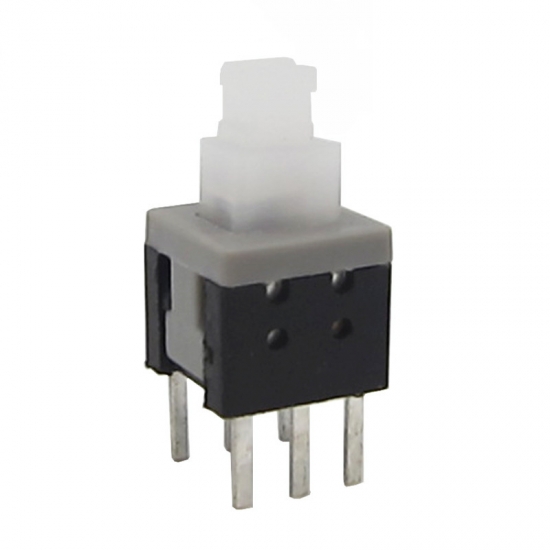

Products photos:

 PB12E0622E GP-no logo (4).jpg
