Home Switch Push button switch 16mm Momentaty OFF ON Metal Push Button Switch

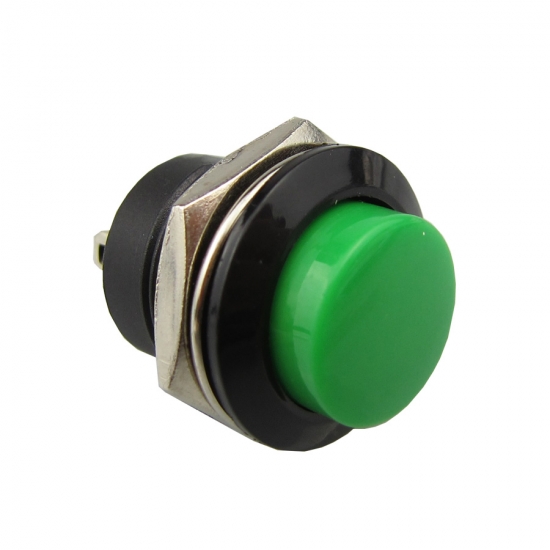

16mm Momentaty OFF ON Metal Push Button Switch

PB-02 series push button switch, diameter of 16mm, well performance of IP67 protection standard, compliant with CE, ROHS, pleasing in apprearance, button color with red, blue, green, yellow, white, purple options.

  • Item NO.:

    PB-02-MM-XX
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Red green black yellow blue white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


Product Item: 16mm Momentaty OFF ON Metal Push button switch


Parameter


Contact resistance: 50mΩ Max

Insulation resistance: 100MΩ Min

Dielectric strength: AC 1000V (50Hz-60Hz) 1 min

Operating temperature: 0℃~﹢85℃

Rating current: 6A 125VAC 3A 250VAC

Operating force: 250gf±50gf

Electrical life: 10,000cycels

Mechanical life: 50,000cycles

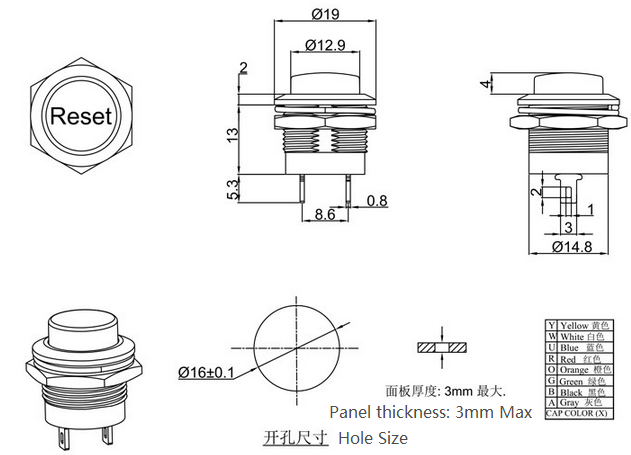

Dimension
