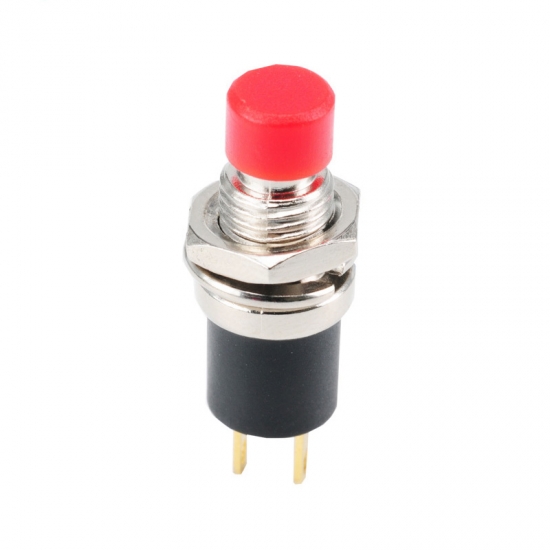

PB-05 Series Mini Push Button Switch

PB-05 series push button switch provides with fire protection rating 94V-2, good abrasion resistance.

  • Item No.:

    PB-05B-R
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Red green black yellow blue white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Product Item: PB-05 Series Mini Push Button Switch

This item well performed in shock resistance, corrosion resistance by using ABS push button. it's widely used in Video products, digital products, remote controller, telecommunications, home appliance etc.


Technical parameter

Contact resistance: 20mΩ Max

Insulation resistance: 100MΩ Min

Dielectric strength: AC 1000V (50Hz-60Hz) 1 min

Operating temperature: 0℃~﹢85℃

Rating current: 6A 125VAC 3A 250VAC

Operating force: 250gf±50gf

Electrical life: 10,000cycels

Mechanical life: 50,000cycles

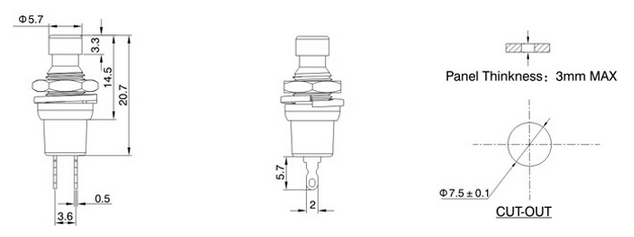

Dimension
