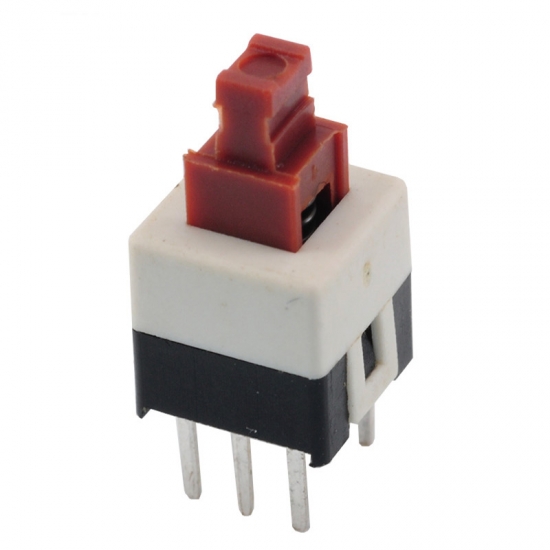

30V Best Price 2 step DIP plastic Push Button Switch
Item No.:
PB21E07Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
red and blackShipping Port:
Ningbo/ShenzhenMin Order:
1000pcsLead Time:
7 Working Days after payment30V Best Price 2 step DIP plastic Push Button Switch
Product Description:
|
Model Name: |
Lock push button switch |
|
Model No.: |
PB21E07 |
|
Dimension: |
7*7mmx H |
|
Operating force: |
200±50gf |
|
Life cycles: |
10000 times |
|
Operating Rate: |
35%-75% |
|
Electrical rating: |
DC 30V 0.1A |
|
Insulation resistance: |
≥100MΩ 100V DC |
|
Withstand voltage: |
250V AC / 1 min |
|
Contact resistance: |
≤100mΩ |
|
Full travel : |
2±0.2mm |
|
Return Force: |
≥ 20gf |
|
Certifications: |
CQC CE ROHS ISO9001 |

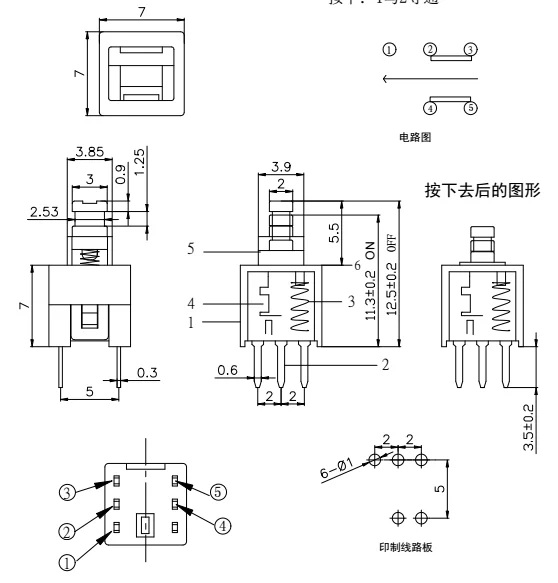

Dimension:

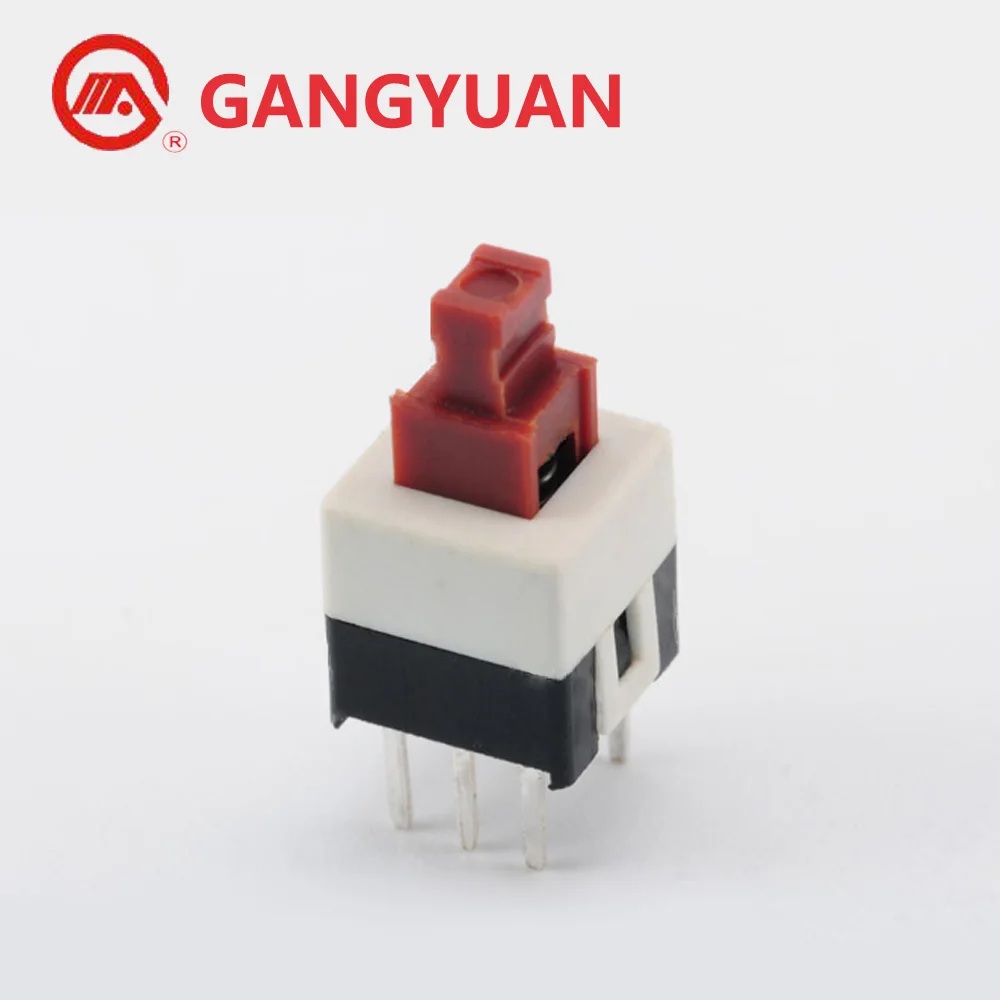

Products photos:
