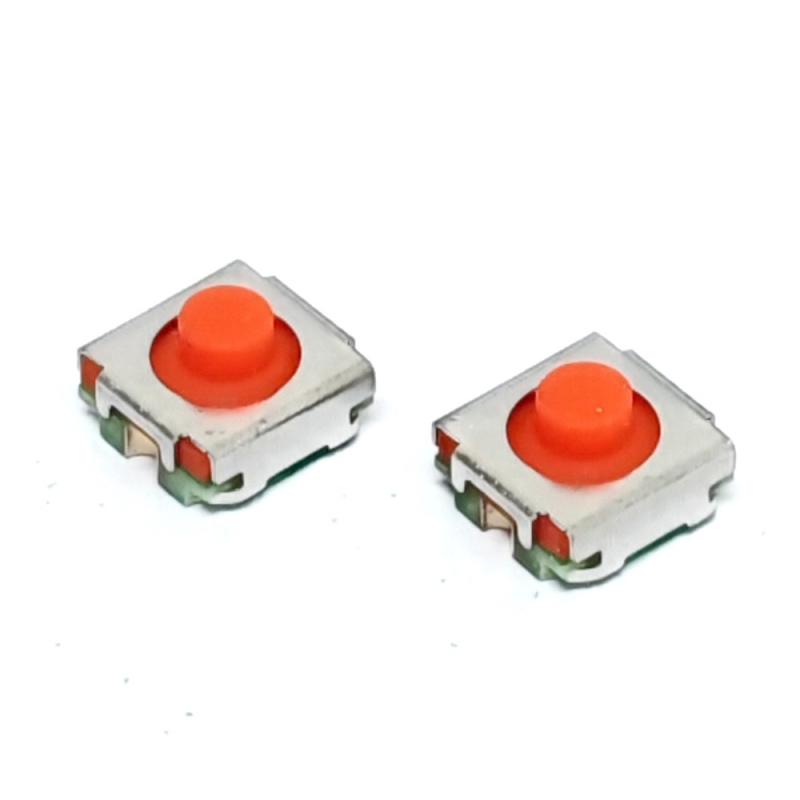

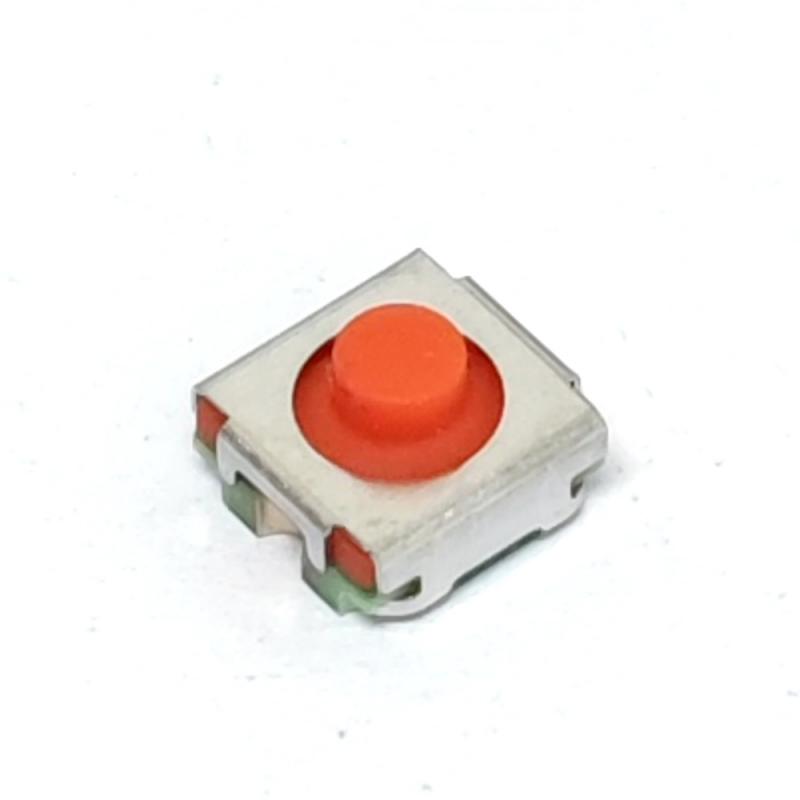

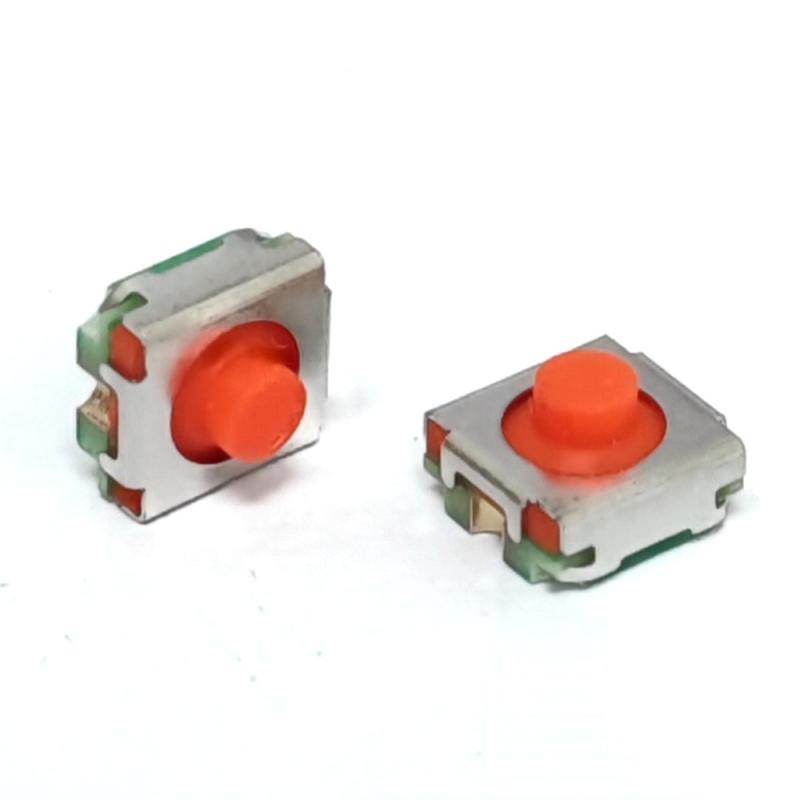

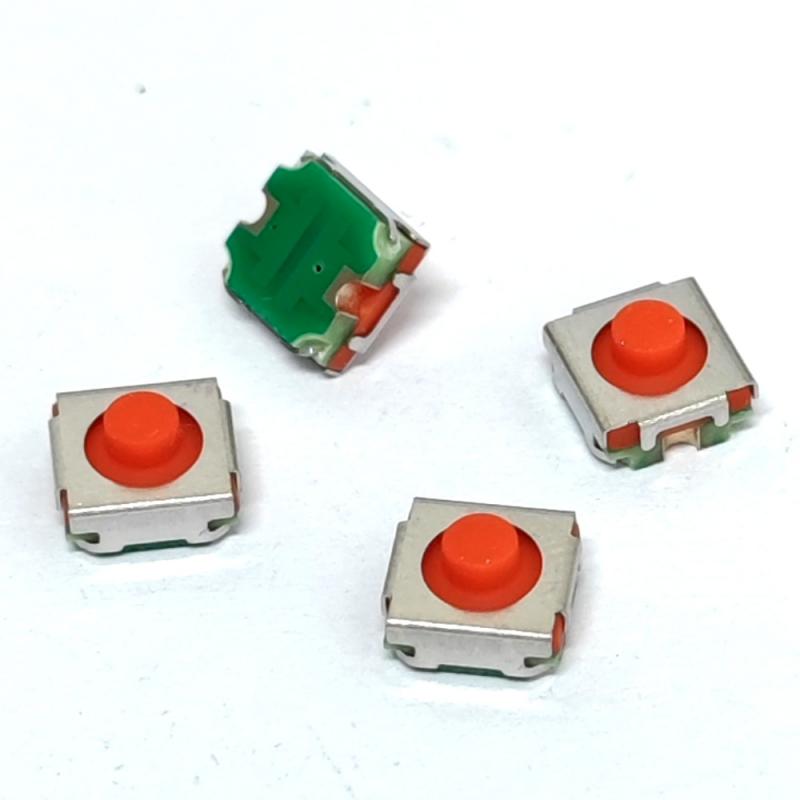

The touch switch is a 6.3mm square surface-mount tactile switch. It is engineered for applications requiring a clear operating feel, middle-stroke travel, and high environmental resistance (dust-proof/IP6X).
Brand:
GangyuanItem NO.:
KAN6140F-0412Z0201Order(MOQ):
1300Payment:
100% before productionProduct Origin:
WenzhouColor:
SilverShipping Port:
Ningbo or ShenzhenLead Time：
15-20 working daysOutline (mm)
6.80mm x 6.30mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP67
Typical Specifications
Operating Force: 400±80gf
Operation life: 200,000 cycles
Full Travel: 0.75±0.15mm
Return Force: 0.5N Min
Waterproof Level: IP67
Product height: 4.1±0.2mm

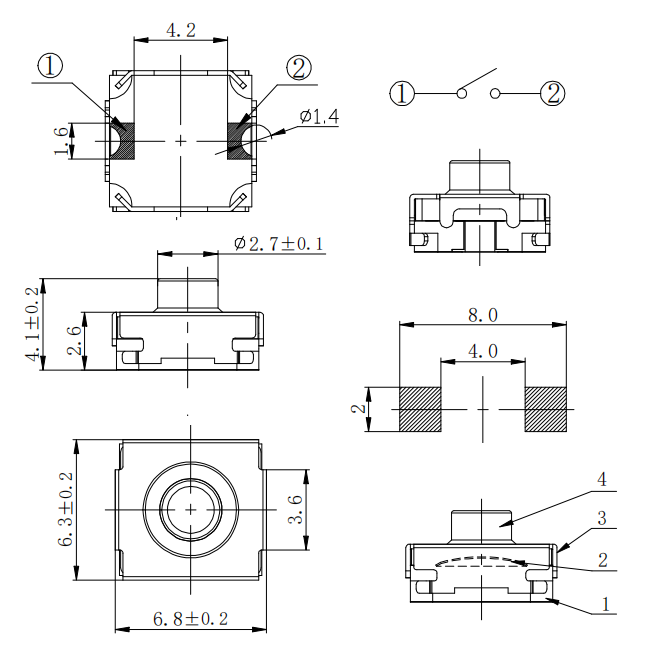

Tact switch schematic
Panasonic EVPBD series SKTRAEE010 alternative tactile switch
Advantages

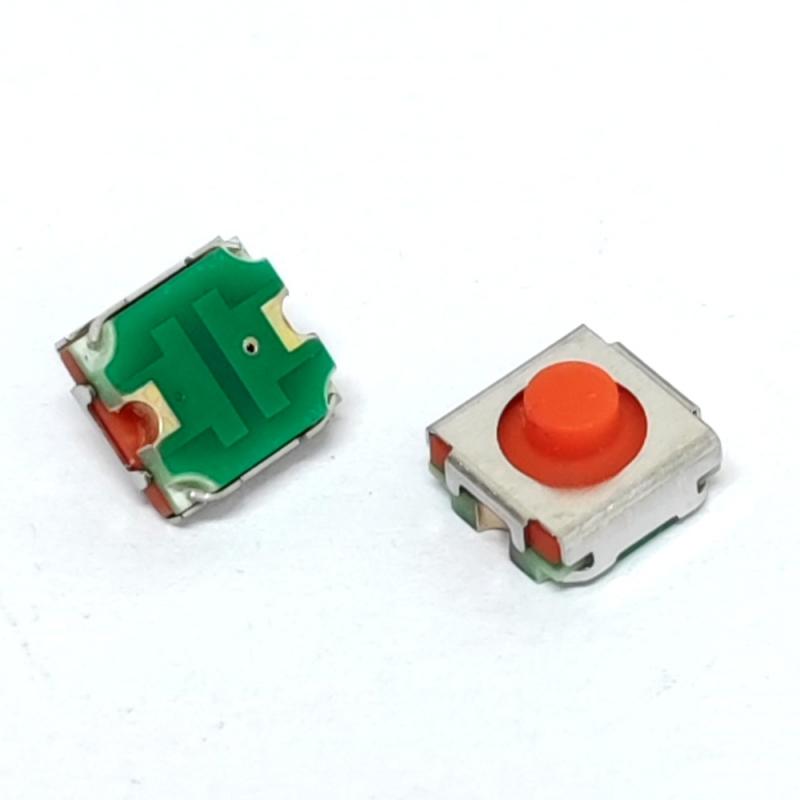

1. The base utilizes a PCB to prevent contamination from foreign matter during injection molding.
2. The solder leads are flat and feature an immersion gold finish, facilitating SMT soldering.
3. IP67 waterproof rating prevents flux ingress.
Core advantages of the switch compared to competing products（ ALPS SKTRAEE010 and Panasonic EVPBD）:
1. More Rigorous Environmental Durability Testing (Key Advantage)
We conducted hydrogen sulfide (H2S) and sulfur dioxide (SO2) gas corrosion tests.
These tests—often required for high-reliability applications such as automotive electronics and industrial controls—effectively verify the long-term stability of the switches in environments with poor air quality.
2. Comprehensive Reliability Validation
Across multiple environmental tests, Gangyuan switches underwent 1,000 hours of testing, matching the duration used by ALPS.
This demonstrates that our products have undergone reliability validation just as rigorous as that of industry benchmarks.
3. Excellent Shock Resistance
Gangyuan switches can withstand a shock acceleration of 980 m/s², exceeding the 784 m/s² rating of the ALPS SKTRAEE010.
This means our switches maintain their performance even under severe physical shock—a significant advantage for portable devices and automotive applications.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
