Home Switch Tactile switch 3x6mm 2pin tact push button switch

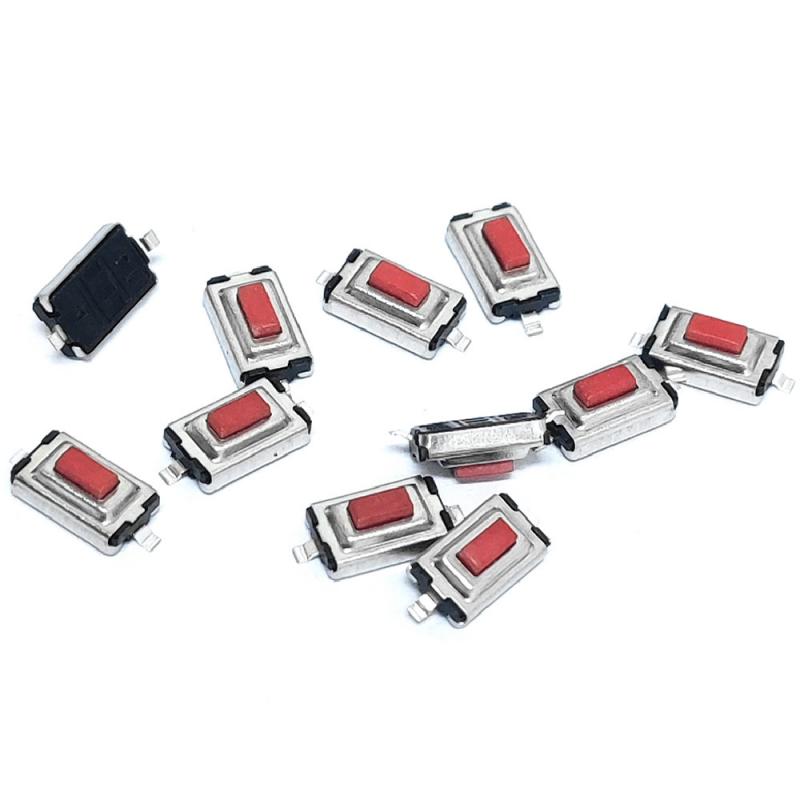

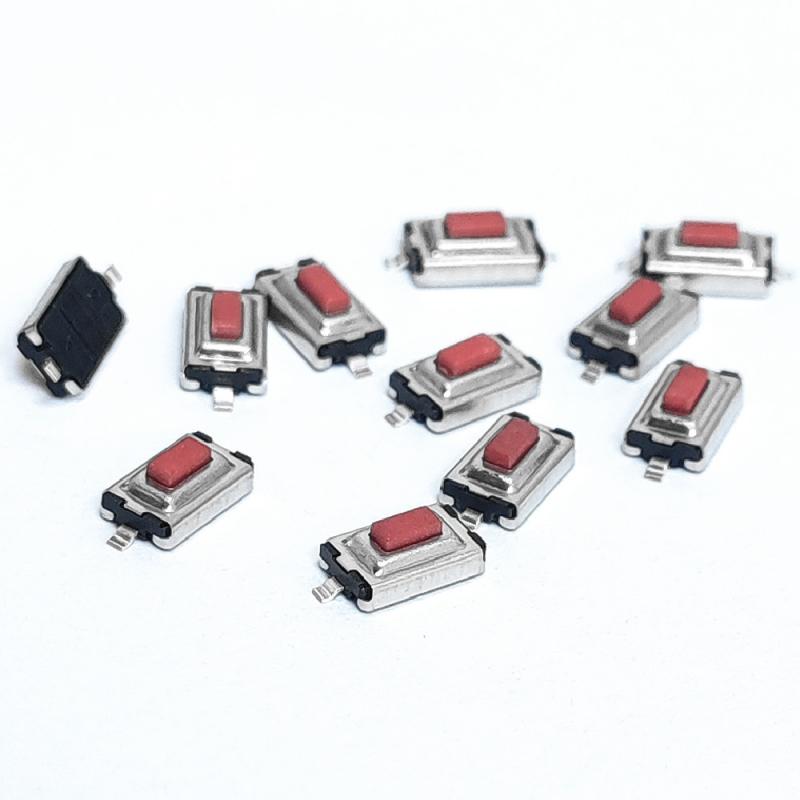

3x6mm 2pin tact push button switch

Tactile mechanical switches are defined by the small bump you feel when using them.  When you press a tactile switch, you'll feel resistance until you apply a certain amount of force to overcome the bump and actuate the key.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441B-0252B1-14
  • Order(MOQ):

    3000
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Outline (mm)

    6.00mm x 3.75mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

Momentary action 2.5mm SMT surface mount 2 pin tact switch


 Specification

Type:6.0 x 3.5mm Top Actuated tact switch

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)

Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ

Operating Force: 160±50 gf

Product height: 2.5mm

Full Travel: 0.25±0.1mm

Operation life: 20,000 cycles

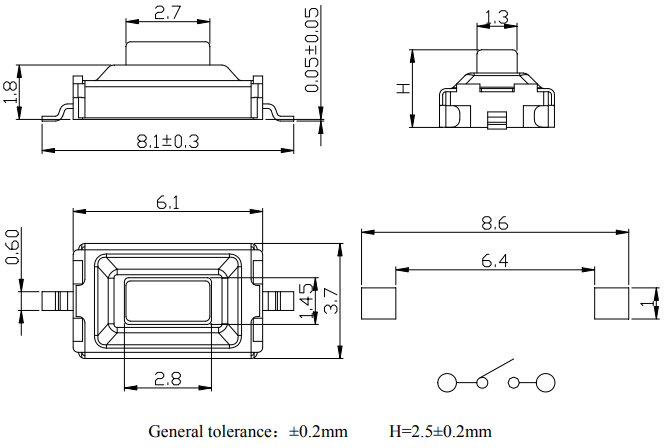

 Mechanical drawing



 J Lead type


tactile switch button electronics J lead 2 pin touch switch

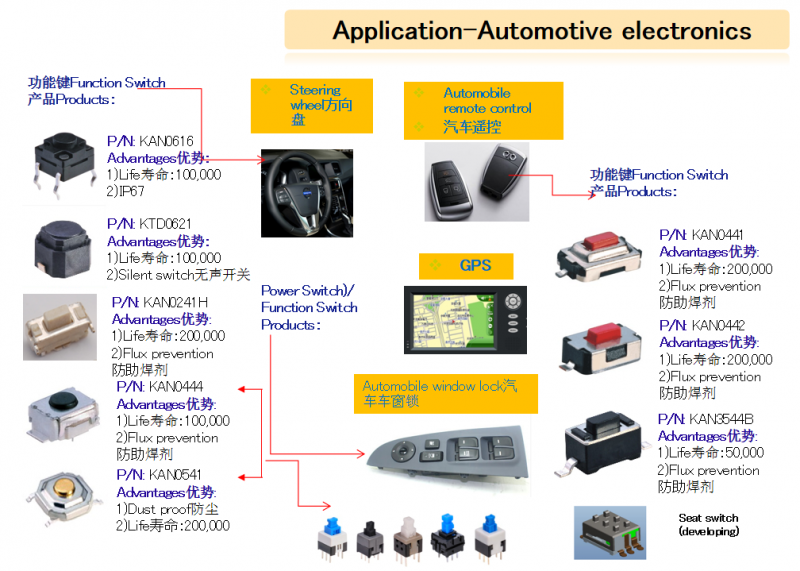

 Tactile switch application


IoT devices / Home automation /

Remote controls / Air conditioner controller

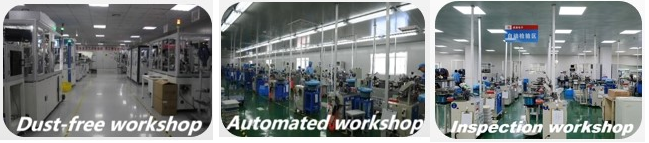

 Company strength

Gangyuan Electronics was established in 1994 and has 30 years ofmanufacturing experience. For 30 years, it has been focusing on

the researchand development and manufacture of tact switches, micro switches and otherelectronic switches. More than 2000 products.

The company's registeredcapital is 34.48 million RMB, and it has 3 modern standard workshops. Covers a total area of 63148 m³.
