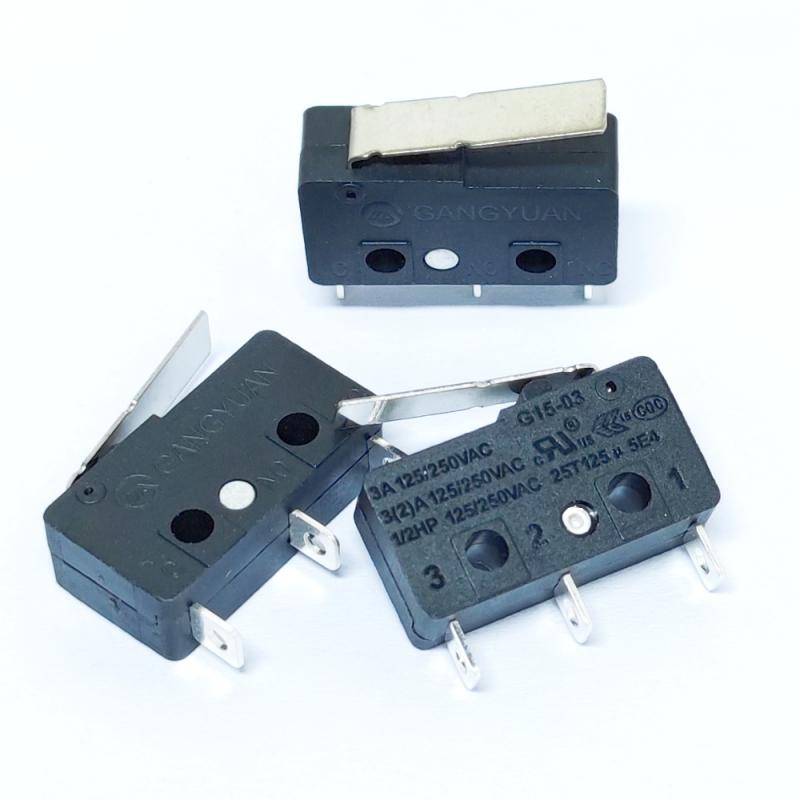

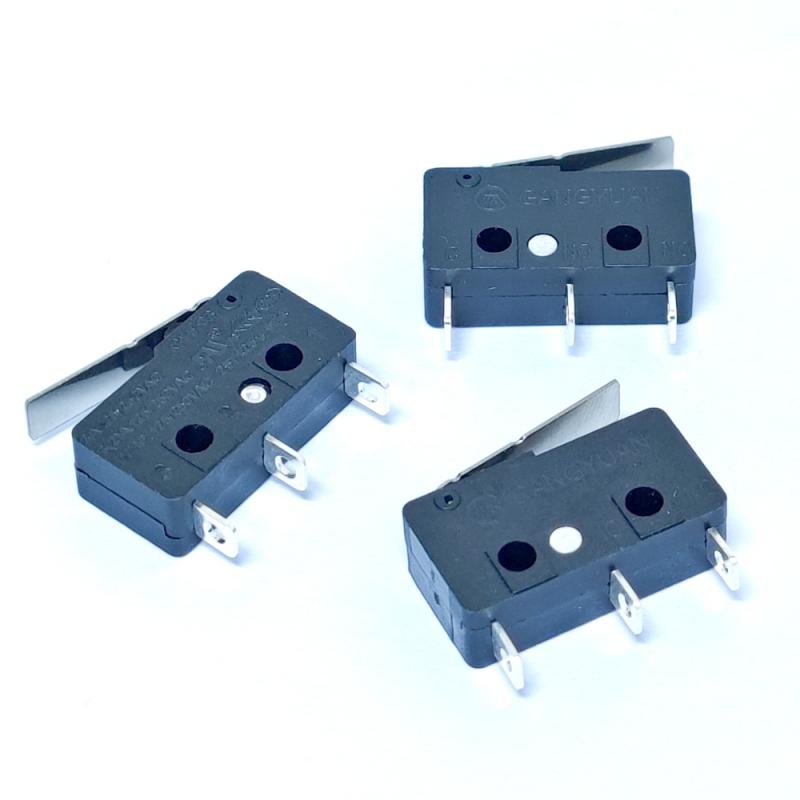

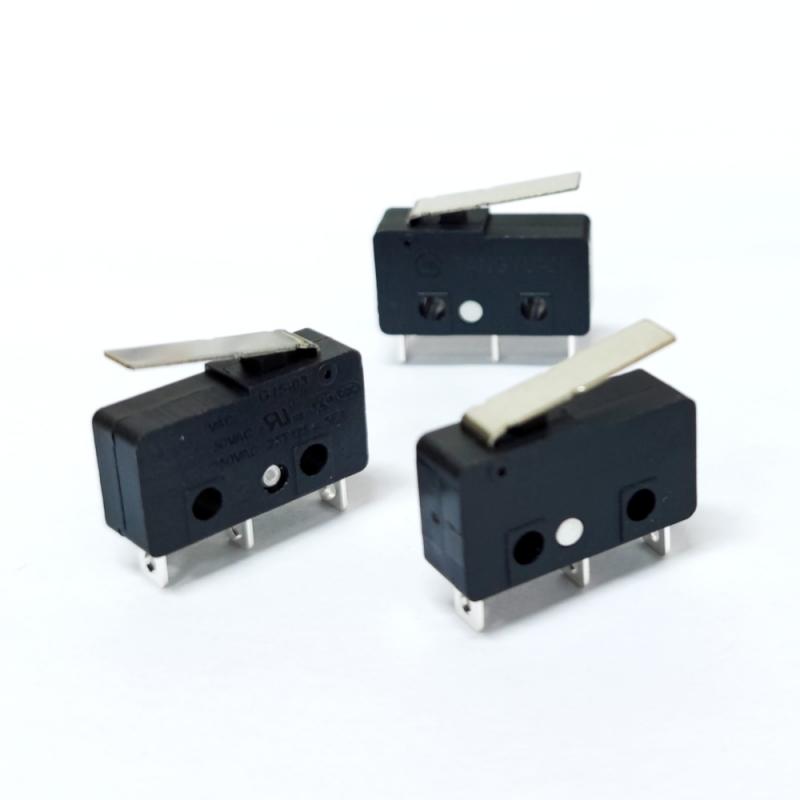

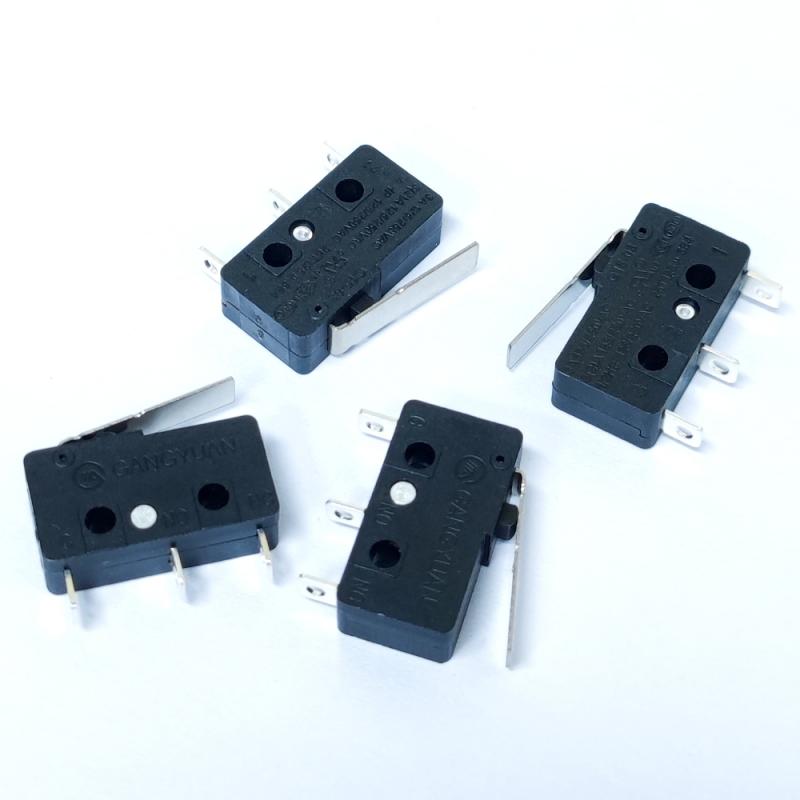

3A 250V AC Micro Switch with Lever

Solder Type SPDT Momentary Micro switch hinge lever

 Specification

Type: 25T125 5E4 Micro Switch

Voltage Rating: 125/250V AC

Current Rating: 3A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1000V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Temperature Range: -25℃～+85℃

Operating Force: 40±20gf

Life Time(mating cycles): 10000 Cycles

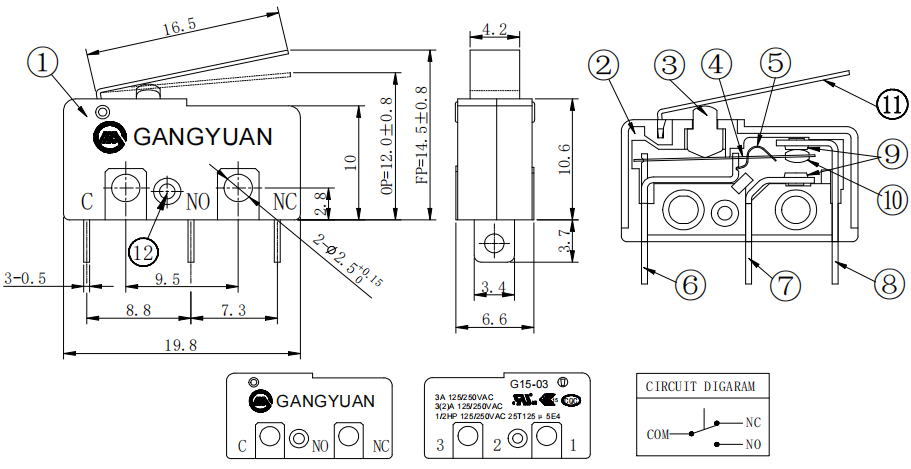

 Micro switch circuit

 Application Cases

Specific scenarios:

1. Coffee machine (start/stop button)

2. Electric kettle (anti-dry-boil protection switch)

3. Oven (door-controlled safety switch)

4. Microwave oven (child lock/function switch)

5. Vacuum cleaner (power on/off)

 Core Advantages

Structural design: 3 soldering pins support direct soldering to the PCB or fixing to the panel with screws, ensuring a secure installation.

The handle provides a clear pressing stroke and tactile feedback to avoid accidental touches, making it suitable for scenarios requiring

"manual precise control" (such as device start and stop, mode switching).

Electrical Performance: Supports a wide voltage range of 125V/250V AC (covering global household and commercial power standards)

and carries 3A current (meeting the circuit requirements of most small devices). No additional step-down or shunt design is required, simplifying customer circuit development.

Standardized design: As a conventional model, it adopts mature production technology, with a stable supply of raw materials (such as contact materials and shell plastics),

can respond to orders quickly (short delivery time), and the unit cost is controllable, suitable for bulk purchases.

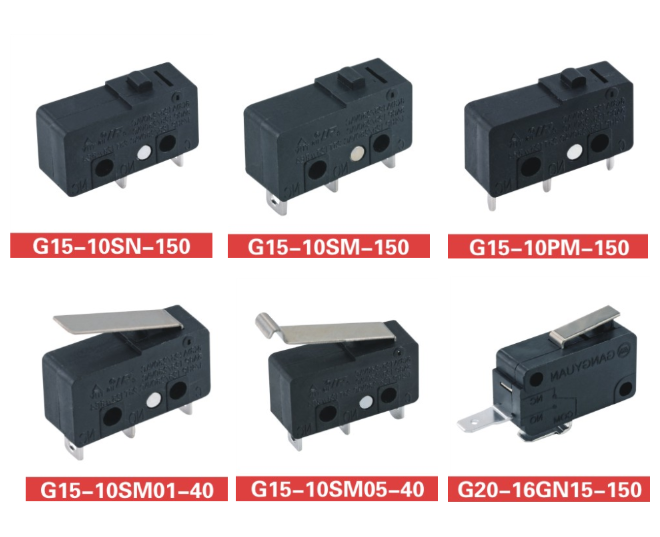

Scenario Adaptation: By adjusting the handle shape (such as flat head, roller, with lock) or solder pin layout, you can quickly match the installation requirements of different devices

(such as panel opening size, PCB layout) without major design modifications.

Certification Value: The switch has passed UL, ENEC, KC, ROHS and other certifications and can be directly integrated into customer products without additional modification, helping customers quickly gain access to target markets.
