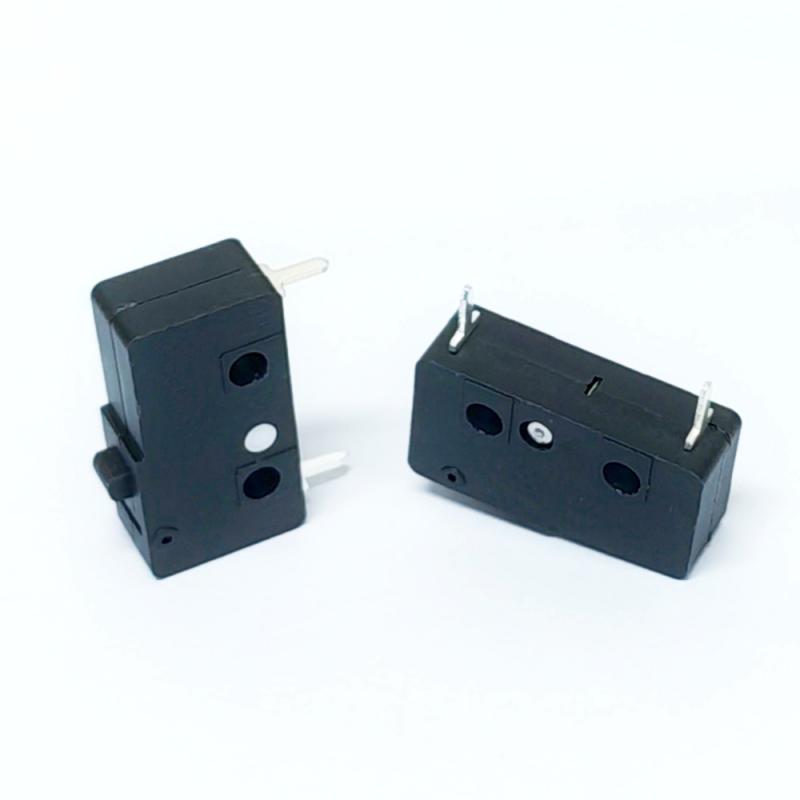

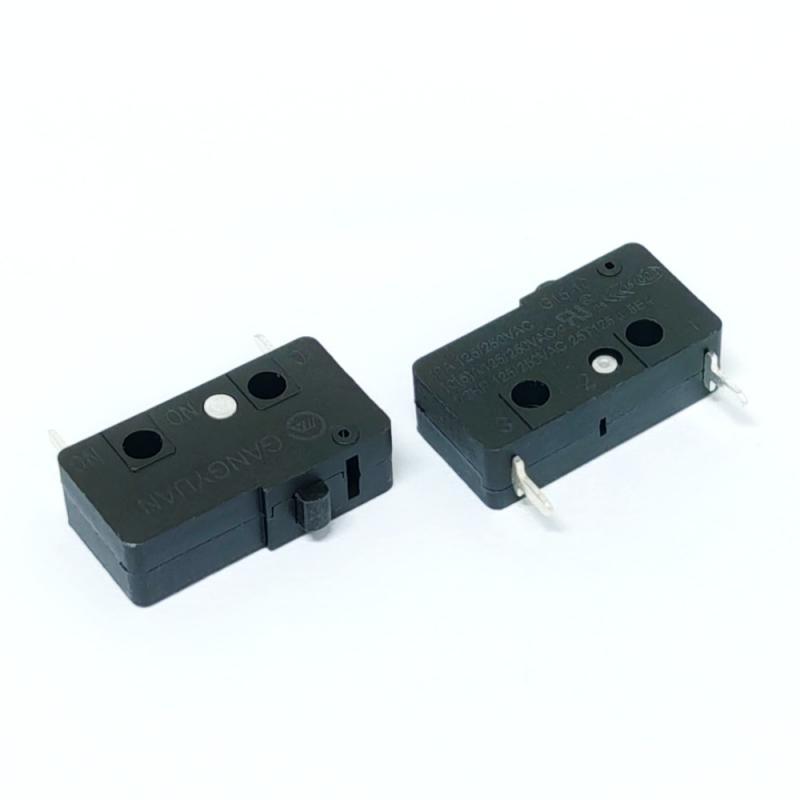

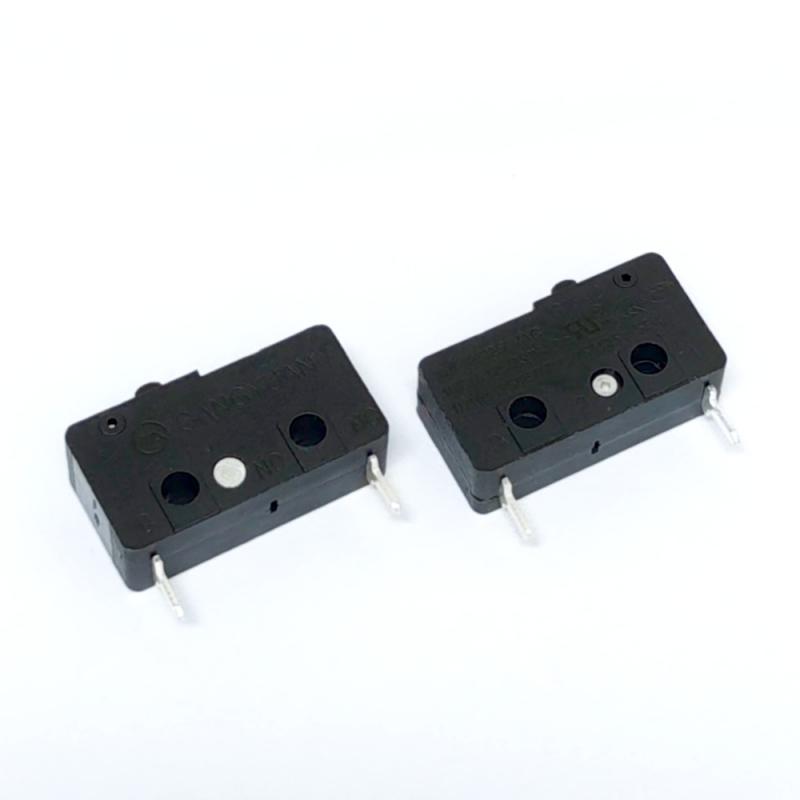

An industrial-grade SPDT momentary-action microswitch rated at 10A/250VAC, featuring an operating force of 150gf, an operating temperature range of -25°C to 125°C, and a mechanical lifespan of 100,000 cycles; suitable for applications such as automotive electronics, home appliance door controls, and industrial control systems.
Brand:
GangyuanItem NO.:
G15-10PV-150-61Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
19.80mm x 12.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XBasic Plunger Actuator Micro switch for Home Appliance & Industrial Control
Specification
Type:UL Micro Switch
Voltage Rating: 125/250V AC
Current Rating: 10A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Dielectric Withstanding Voltage: 1000V AC 1Min
Soldering Temperature: 260±5℃ 5s
Operating Temperature Range: -25℃～+85℃
Operating Force: 150±50gf
Life Time(mating cycles): 10000 Cycles

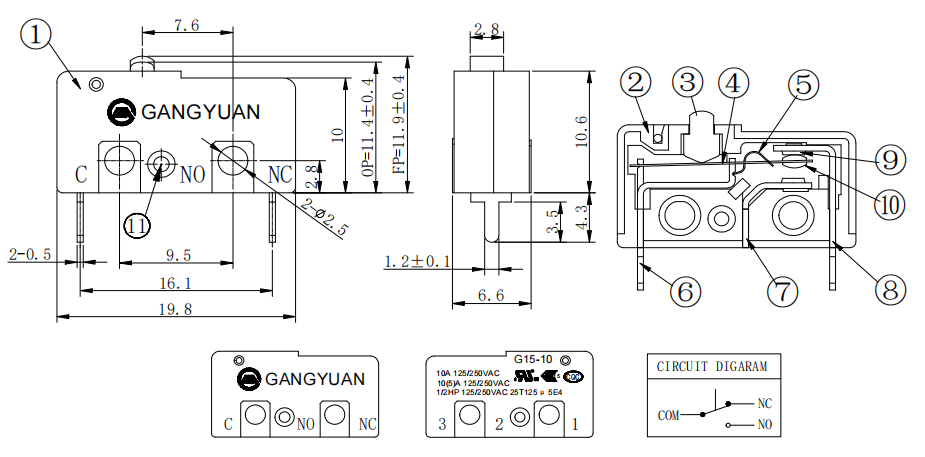

Micro switch circuit
Application Cases
Specific scenarios:
1. Coffee machine (start/stop button)
2. Electric kettle (anti-dry-boil protection switch)
3. Oven (door-controlled safety switch)
4. Microwave oven (child lock/function switch)
5. Vacuum cleaner (power on/off)
Why Choose Our Micro Switches?
Unlike generic alternatives, our micro switches are built with premium materials and precision manufacturing to ensure long-term reliability even in high-vibration or frequent-actuation environments.
We provide dedicated technical support for OEM partners, including custom design assistance and sample testing services.
