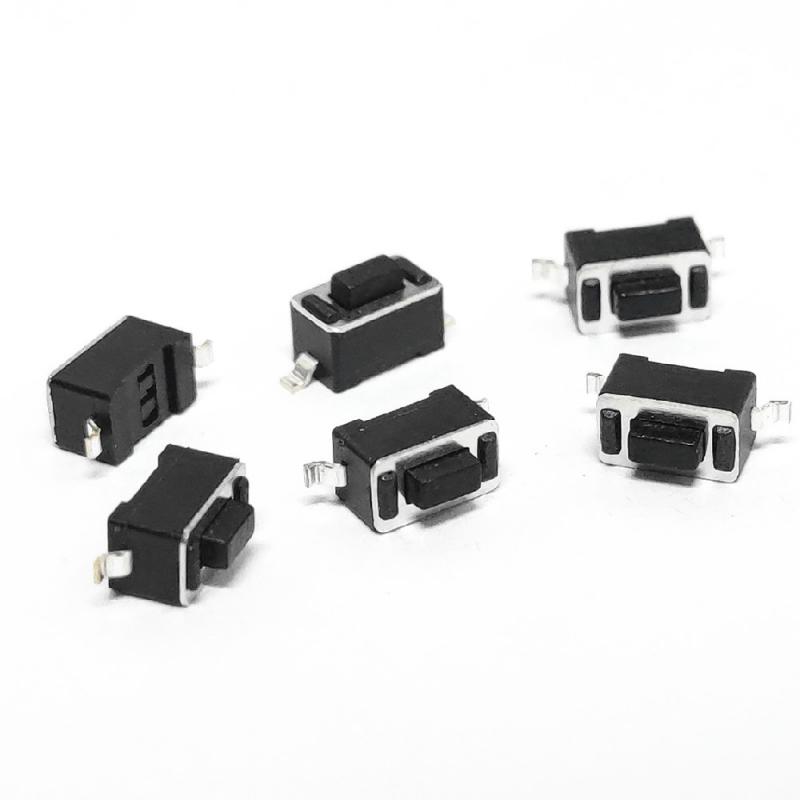

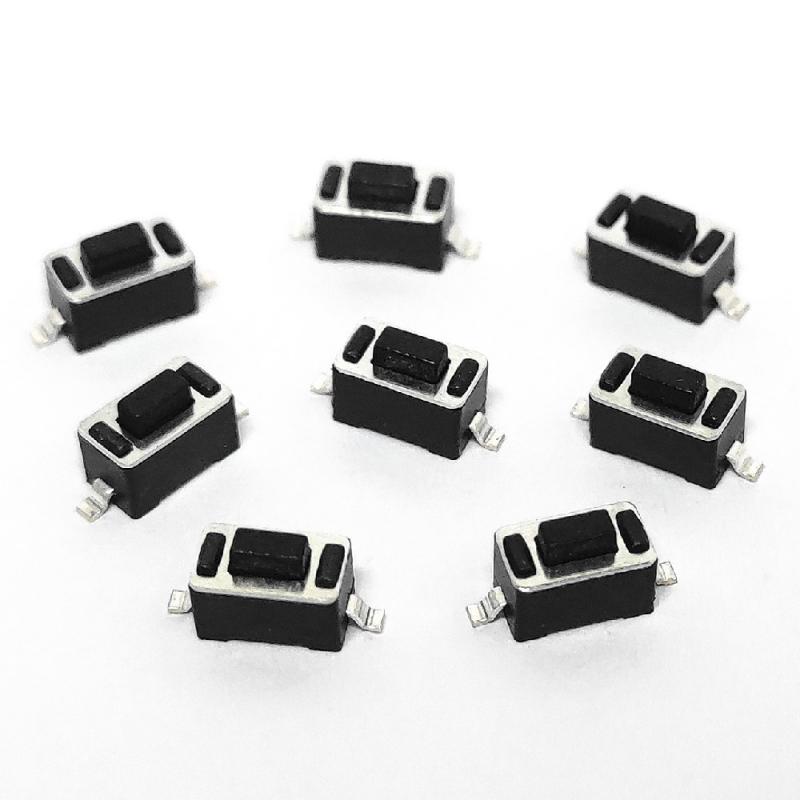

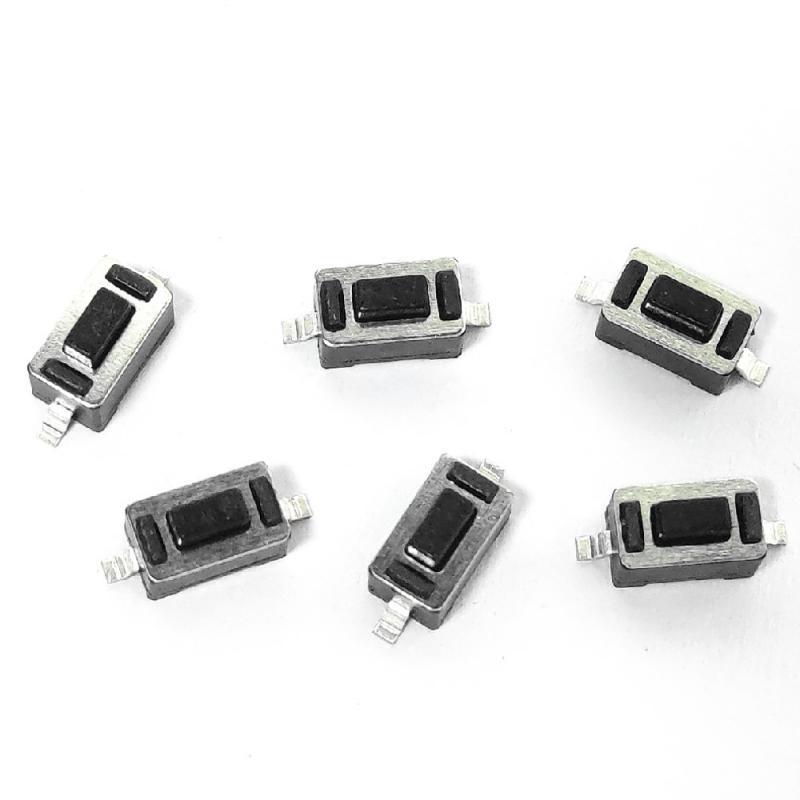

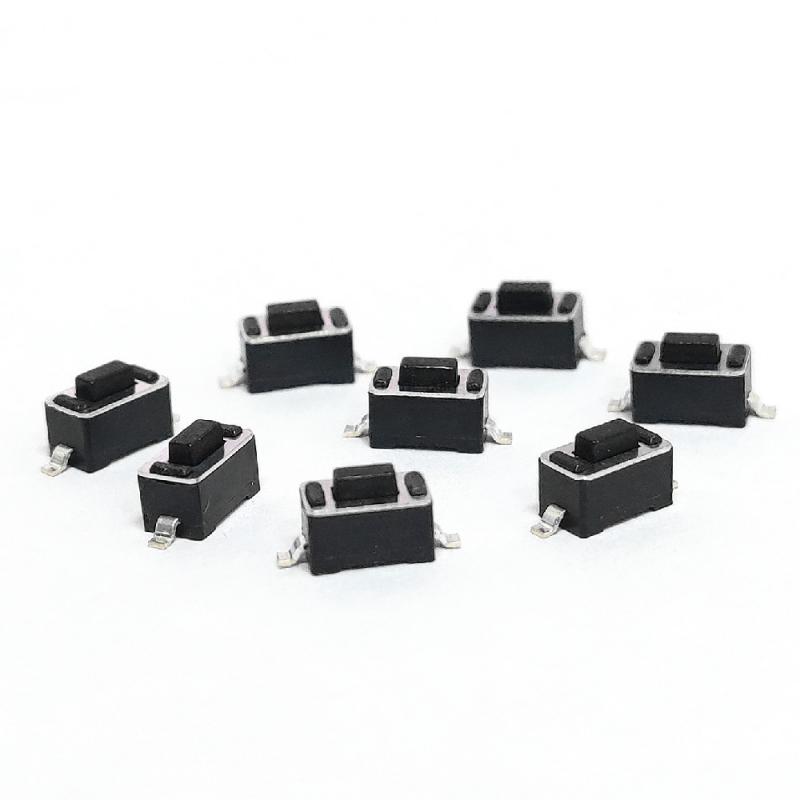

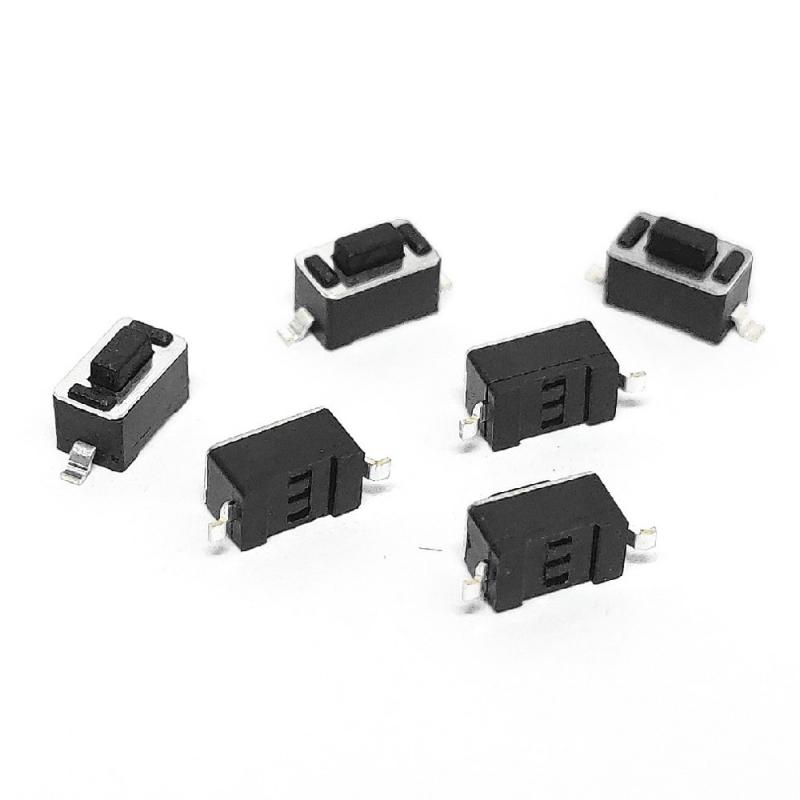

3*6mm 2 pin tact switch

smd 3*6 2pin push button micro tactile switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3542H-0431C1
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

electronic components mini push button switch 2 pin tactile switch


 Tact switch datasheet

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 260±70 gf
Full Travel: 0.25±0.1mm
Life Time(mating cycles): 50,000 cycles
Height: 4.3mm

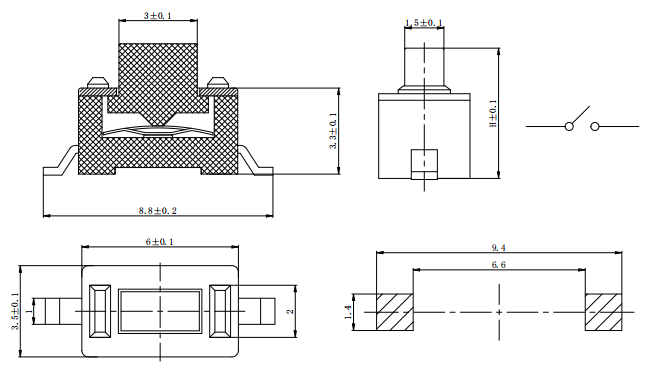

 Drawing

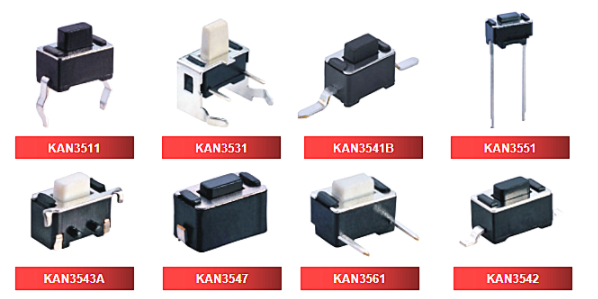

 3*6mm tactile push button smd/dip/side switch

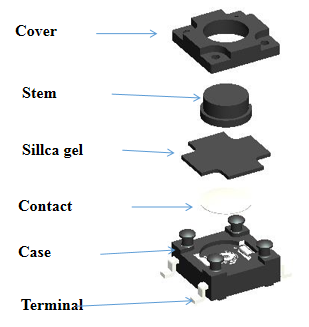

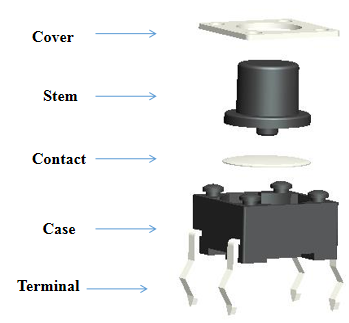

 What is a tactile switch ?  ( Tact switch structure )


The tact switch is an electronic switch, also known as a key switch, which belongs to the category of electronic components.

It consists of a lug, a base, a shrapnel, a button, and a cover plate. When in use, lightly press the switch button to make the switch

connect The switch is disconnected when the hand is released, and its internal structure is realized by the elastic force of the shrapnel.
