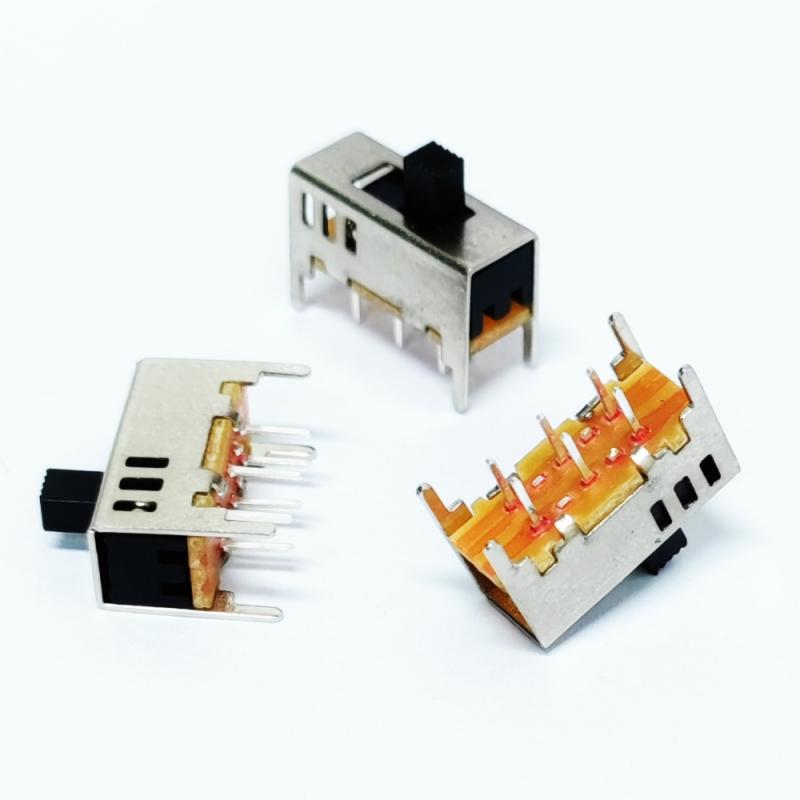

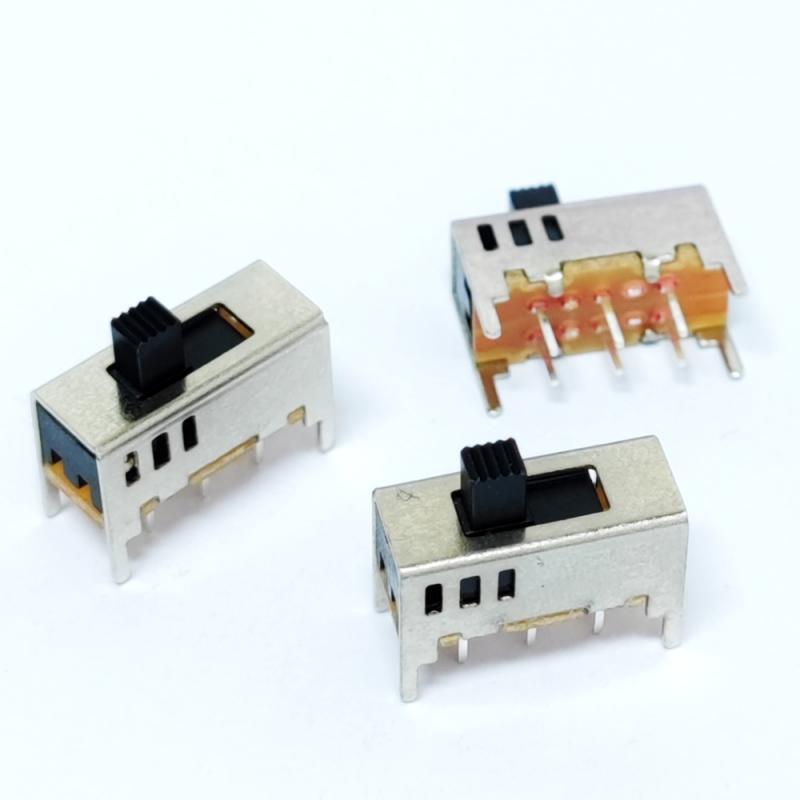

The 2P3T Slide Switch a double-pole three-throw (2Pole 3Throw) control switch that enables three-state switching for two independent circuits (e.g., on/off/mode selection) via a rocking operation, ideal for complex scenarios requiring synchronized multi-circuit control.
Brand:
GangyuanItem NO.:
SS23D01-EG4Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
16.00mm x 6.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP Rating
Typical Specifications
Ratings: DC50V 0.3A
Operating Force: 250±100gf
Full Travel: 2.0±0.2mm
Timing: Non-shorting
Operation life: 10,000 cycles
Slide switch knob: 4mm
Practical Temperature Range: -20℃～+70℃

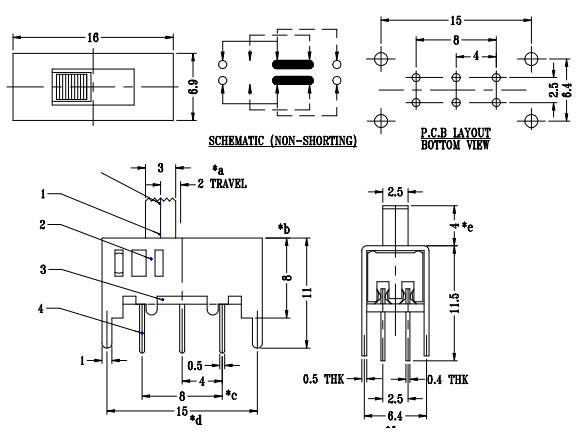

Slide switch dimensions
Non-shorting slide switches

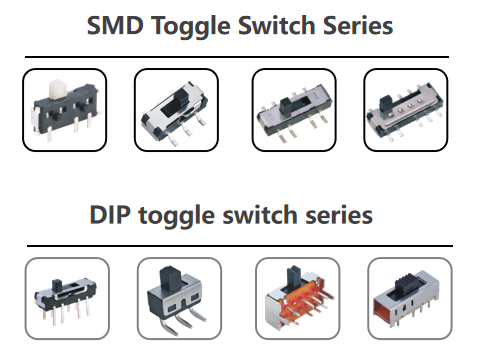

Toggle Switch Introduction
A toggle switch is a device that switches a circuit on or off by toggling the switch handle. Common types of toggle switches include
single-pole double-position, single-pole three-position, bipolar double-position, and bipolar three-position. It is generally used in low-voltage
circuits and has the characteristics of flexible slider movement and stable and reliable performance. Toggle switches are widely used in various
instruments/meters, various electric toys, fax machines, audio equipment, medical equipment, beauty equipment, and other electronic products.
