2 pin tact switch

6x6mm 2 pin small mini switch waterproof 12v

  • Brand:

    Gangyuan
  • Item No.:

    KAN0651F2
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

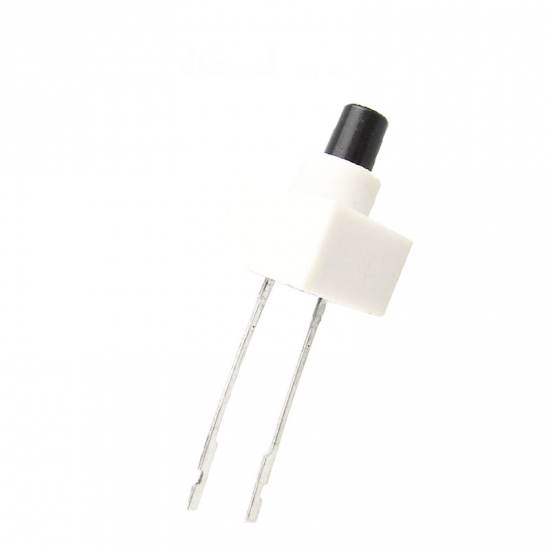

6x6mm 2 pin small mini switch waterproof 12v



Product Description:



Model Name:

6x6mm 2pin tact switch with shell

Model No.:

KAN0651F2

Dimension:

6x6xH

Operating force:

100±30gf /160±50gf /260±50gf

Life cycles:

100,000/80000/60000 Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

10mA 5VDC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm

Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of

temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:

CE,ROHS, REACH, ENEC,

Features:

High quality, durable using life,with protective shell



Dimension:



A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
