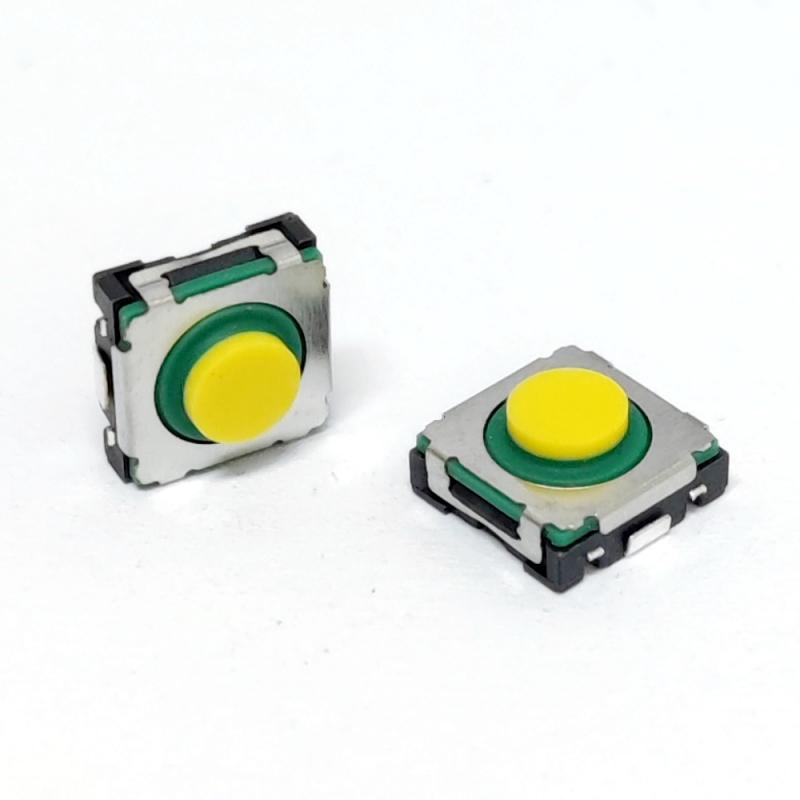

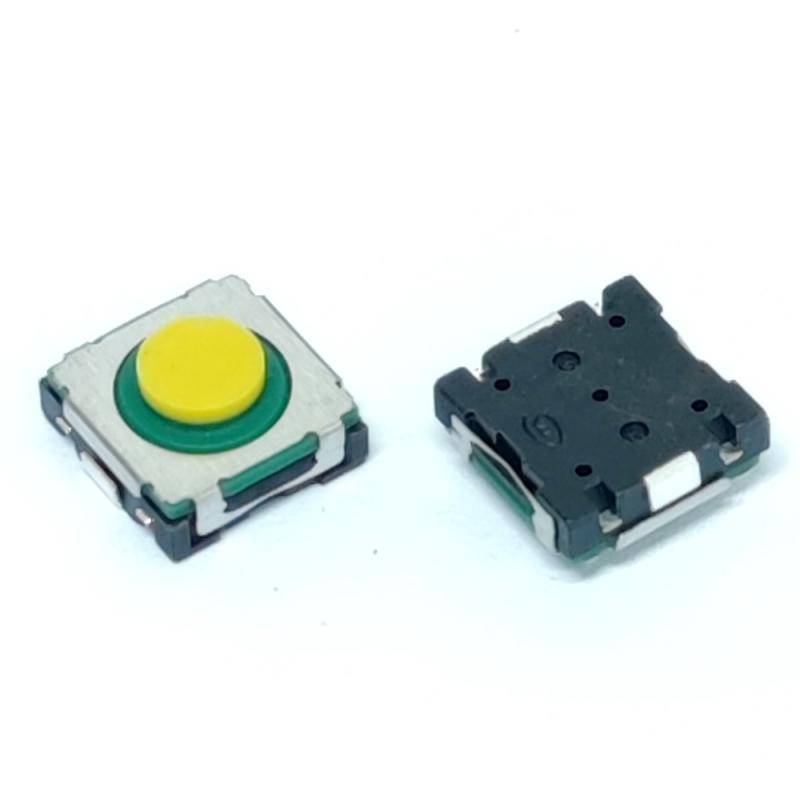

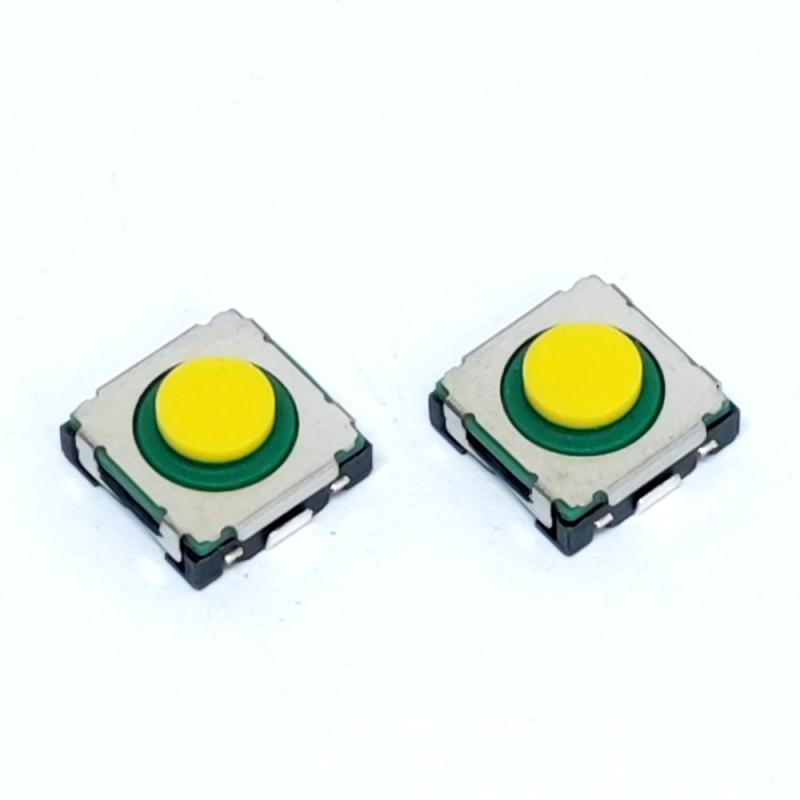

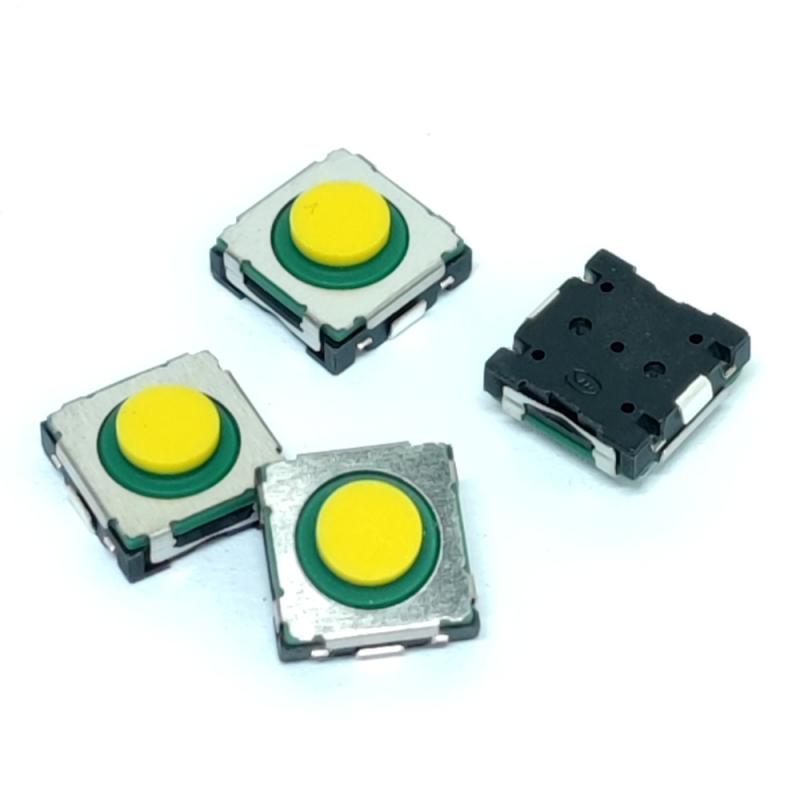

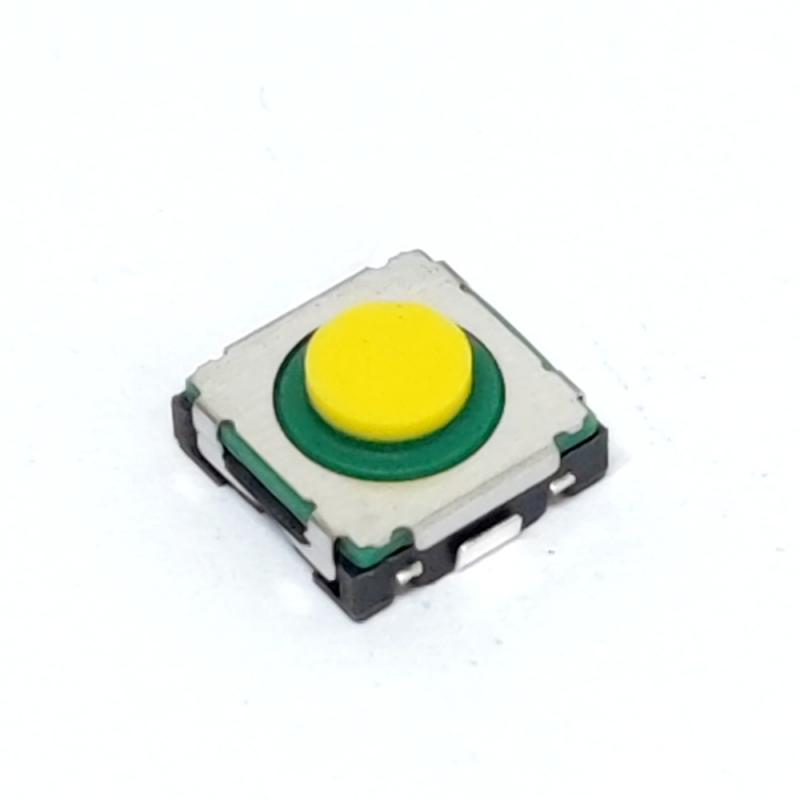

2 Pin Round Actuator Quiet SMT Micro Tact Switch

 High Force 7N Top Actuated SMT Tactile Switch

 Typical Specifications

Operating Force: 700±150gf

Operation life: 100,000 cycles

Full Travel: 0.9±0.3mm

Return Force: 100gf Min

Product height: 4.05±0.2mm

 Tact switch schematic

ALPS SKST series replacement tactile switch

 Key Features and Advantages

Superior Tactile Feedback: Features a 0.9mm middle-stroke and a high operating force (up to 4N), providing a distinct, confident click that prevents accidental presses—critical for automotive and industrial control panels.

Exceptional Durability: Rated for up to 100,000 cycles mechanical life, ensuring long-term reliability in high-use applications.

Robust Construction: Operating temperature range of -40°C to +85°C with SPST-NO (Off-Mom) circuitry and a compact 8.3mm x 8.3mm footprint.

Versatile Termination: Available with Gull Wing or J-Bend terminals, supporting standard SMT soldering processes.

Application-Ready: Packaged in Tape & Reel (1,500pcs/reel) for automated assembly.

 FAQ

1. Can this switch directly replace the ALPS SKSTACE010 ?

A pin-to-pin direct replacement. It features an approximately 8.3 × 8.3 mm standard SMD package and a J-lead design, allowing for direct soldering without modifying the PCB layout.

2. How does it feel to use, and what is its lifespan ?

It falls into the "sharp feeling" category, offering distinct tactile feedback. Key specifications include an operating force of 7.0 N, a travel distance of 0.9 mm,

and a mechanical lifespan of 100,000 cycles—sufficient to cover 95% of real-world application scenarios.

3. Are there any specific things to watch out for during welding ?

This is a critical technical point. Do not clean the switch; prevent flux from seeping in through the top of the switch;

do not apply flux to the terminals or PCB prior to soldering; and strictly adhere to the recommended temperature profiles for reflow and manual soldering.

 More choose

Part number:       KAN8540-04053M0101           KAN8540-04055C0101       KAN8540-040556T0101

Operating force:              400±80 gf                               260±50 gf                            700±150 gf

Stem:                                 White                                     Yellow                             Yellow+Green
