12v waterproof push button tact switch

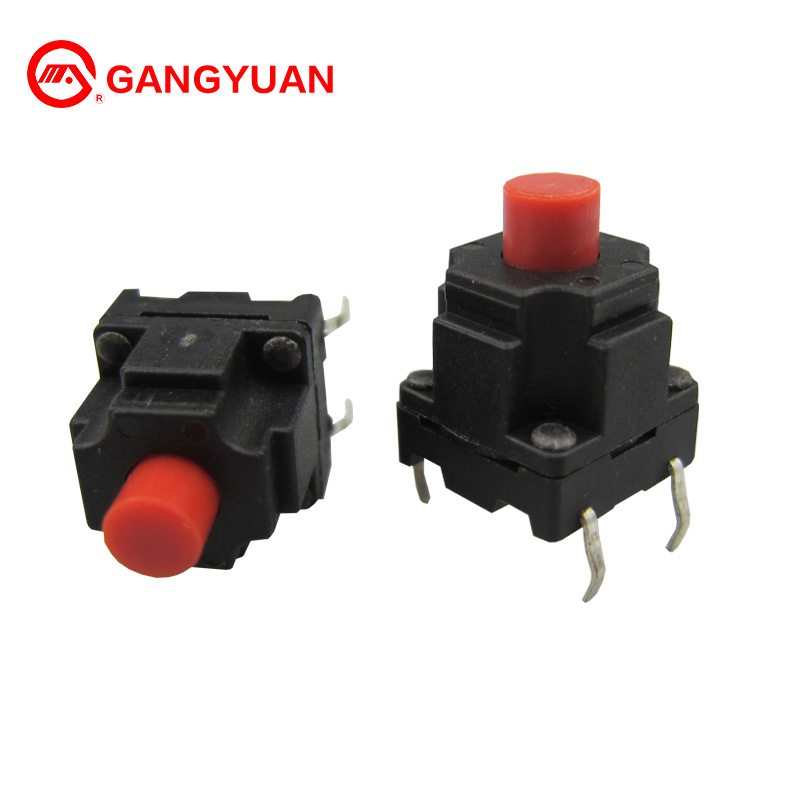

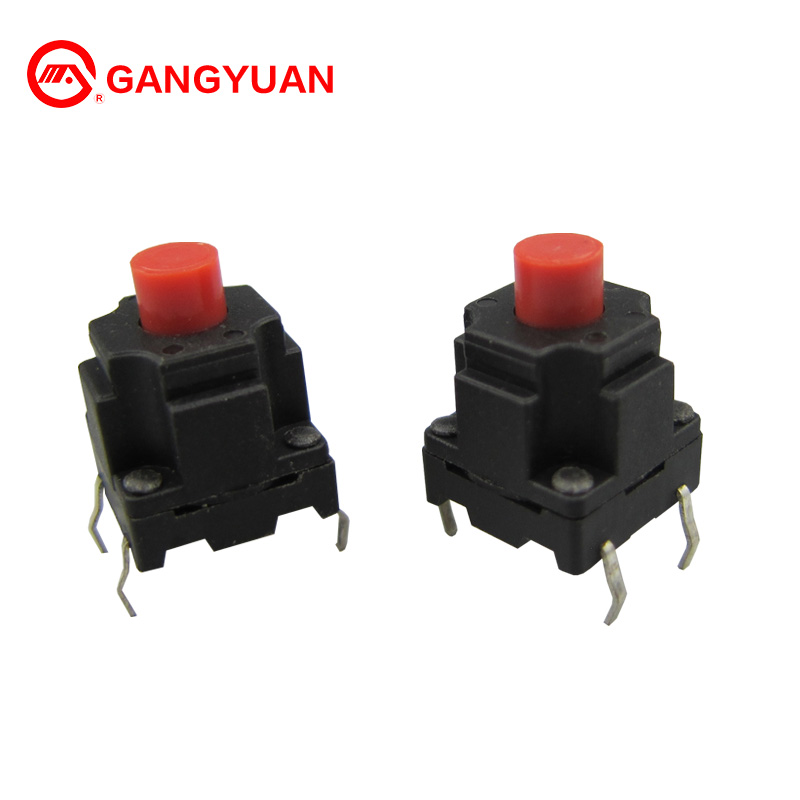

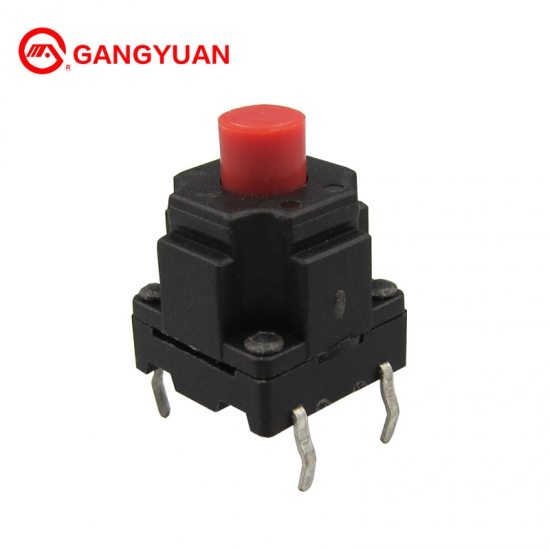

Red button customizable small 12v waterproof push button tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN1011
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Red button customizable small 12v waterproof push button tact switch

Basic Information

Model Name:

tact switch

Model No.:

KAN1011

Dimension:

10*10mm

Operating force:

3.5±0.5N

Life cycles:

60,000 Cycles

DC rating:

50mA 12V DC

Contact resistance:

100mΩ max.

Full travel :

0.25±0.1mm



Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:   CE,ROHS, REACH, ENEC and so on

Dimension

push button tact switch.jpg

best tactile switches custom keyboard.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
