Home Switch Tactile switch 12V Red Knob Right Angle Tactile Switch

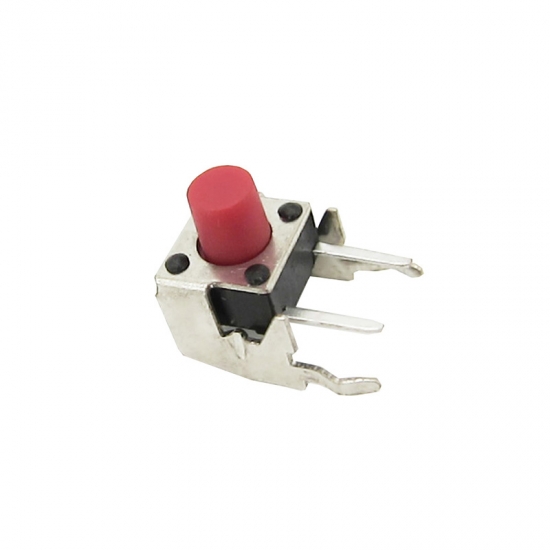

12V Red Knob Right Angle Tactile Switch

Right Angle tactile switch, knob colors with black, grey, red, white, pink etc.  Long life 100,000/1,000,000 cycles could be normally made.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0631-0702B
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black Grey Red Pink etc
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

Product Item: 12V Red Knob Right Angle Tactile Switch


Feature

- Excellent electrical property

- Horizontal with bracket

- Product height value  range 4.3mm-18mm, L value range 3.15mm-16.85mm

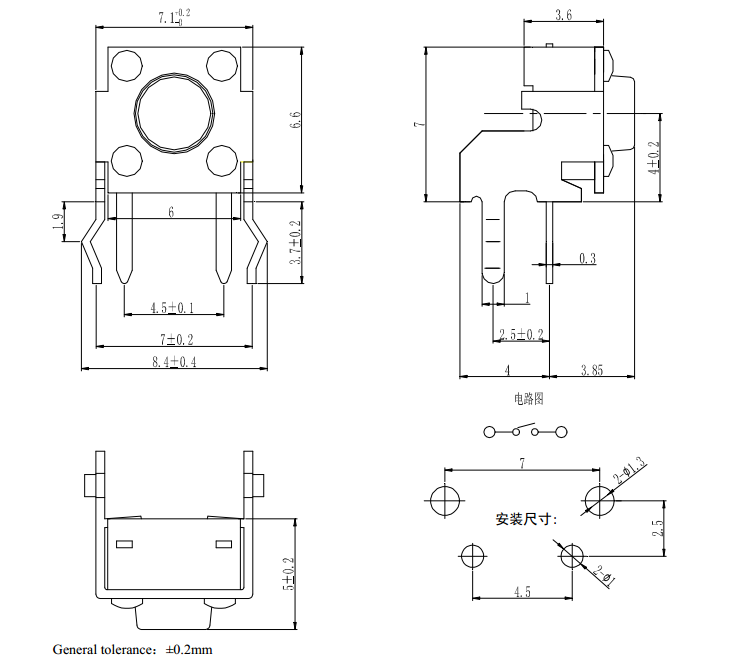

Dimension

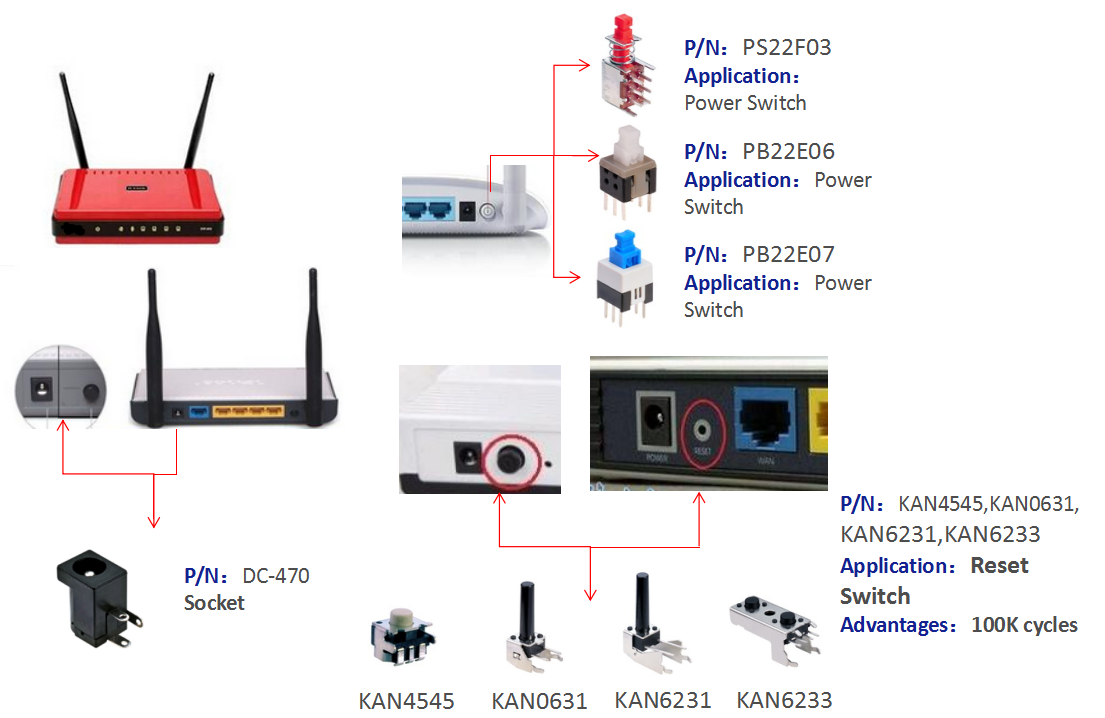

Application

Router, security product, small househould appliance, consumer electronics, medical device etc.


Note: there are over 2,000 set of models, if you don't find exact item, please contact us for further discussion.
