Home Switch Detector Switches 1 position push button detector switch

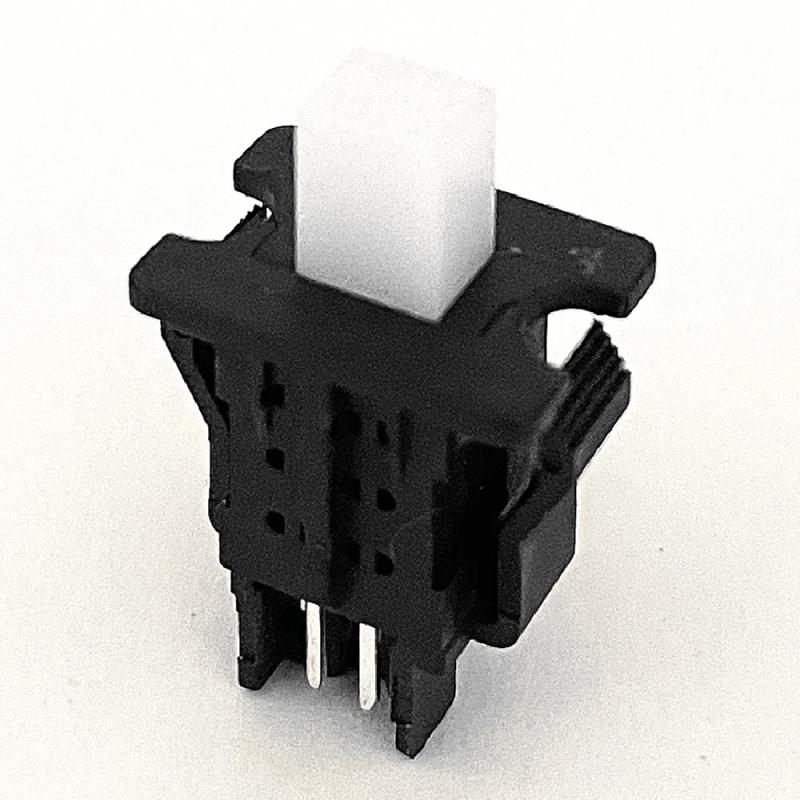

1 position push button detector switch

Application: MFPs, inkjet printers, laser printers, cover opening inspection and paper inspection.

  • Brand:

    Gangyuan
  • Item NO.:

    PB21HA01-B04
  • Order(MOQ):

    4000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and White
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

100μA,3VDC ~ 10mA 5VDC Vertical downward press detector switch

SPST Advanced technology detector switch


Parameters


China detector switch manufacture


Contact Resistance: 100mΩ Max

Insulation Resistance: 100mΩ Min

Operating Force: 80±20 gf

Operation life: 200,000 cycles

Operating Temperature Range: -40℃~85℃

Storage Temperature Range: -40℃~90℃
Bounce:  ON-10ms max OFF-10ms max


Drawing



Application


1. Automotive (sensors, indicators)

2. Consumer Electronics (Audio-Visual, Handheld)
3. Consumer Devices (Appliances, Household Goods)
4. Computers (peripherals, printers, infrastructure, servers/storage, IT)
5. Industrial (sensors, factory automation equipment, test equipment)
6. Safety/Security Controls (Network PCs, Telecom Equipment, Cell Phone Base Stations, Intrusion/Alarm Switches in Door and Window Alarms)
7. Medical equipment (including portable monitoring equipment)
8. Telecommunications equipment (ATCA and microTCA equipment)
9. Mobile communication equipment

10. Door interlocks for use as detectors (computer and industrial enclosures)
11. Payment Terminal (Card Detection)


Packing


  • 400pcs in each bag, tightly sealed. (21*19cm)
  • 1 bags in each inner box, 400pcs in total. (21.6*16*6.1cm)
  • Each outside box is packed with 16 inner boxes, 6400pcs in total, gross weight is around 9kg.(45.5*35*28cm)
