Home Switch Detector Switches 4 pins smd mini detector switches push button switch

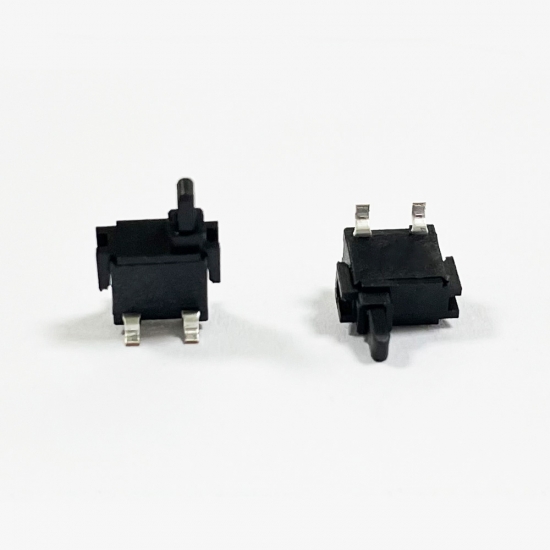

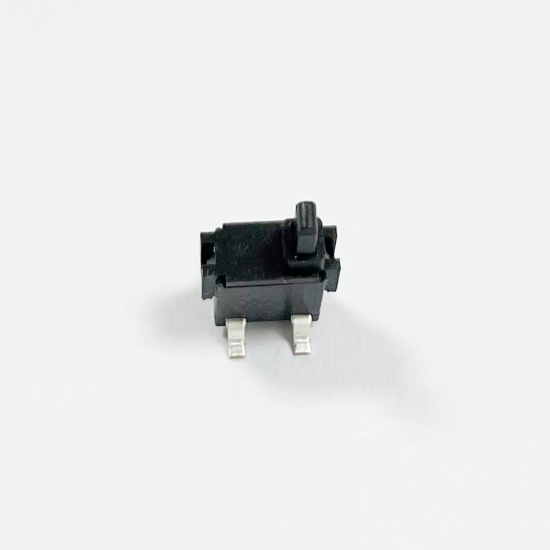

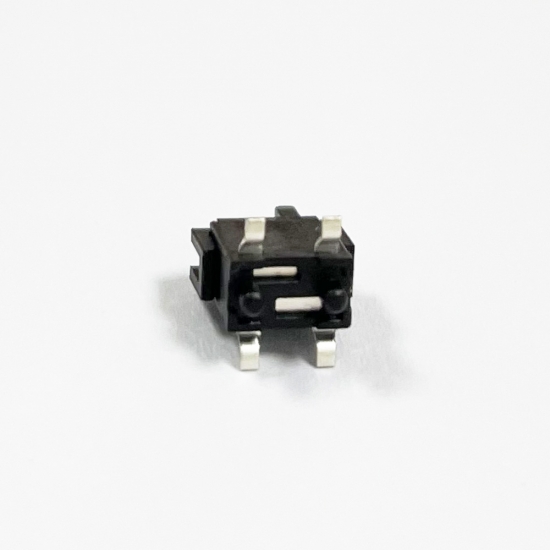

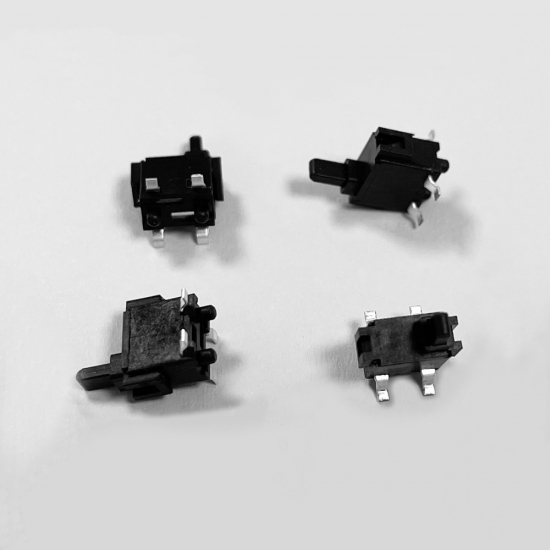

4 pins smd mini detector switches push button switch

4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.

  • Brand:

    Gangyuan
  • Item NO.:

    KAM6403-4-KEL
  • Order(MOQ):

    2000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Product Item:

4 pins smd mini detector switches push button switch


Feature:

Model Name:

SMT detector switch

Model No.:

KAM6403-4-KEL

Dimension:

6.4*5.1*8.5MM

Operating force:

30+-20gf

Life cycles:

50,000Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

0.1A/12V DC

Contact resistance:

300m Ω max.

Insulation resistance:

100MΩ min. 100V DC

Dielectric strength:

100V AC for 1 min

Full travel :

0.7±0.4mm

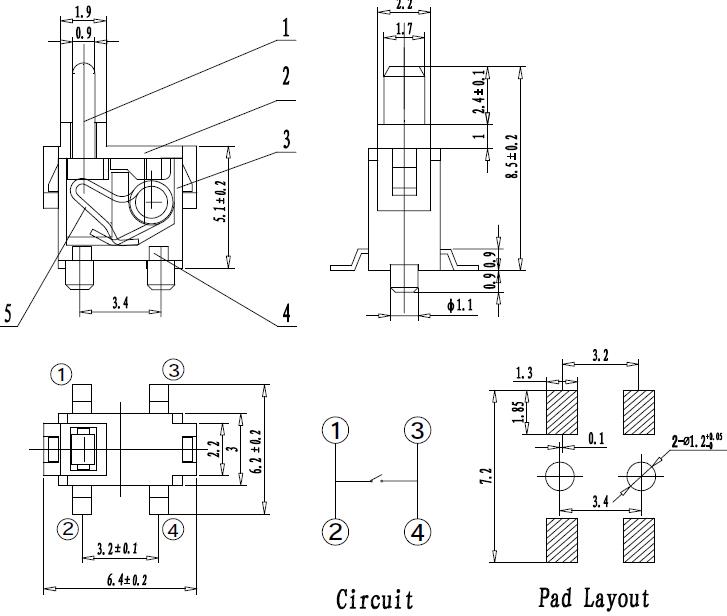

Drawing :


Application:

Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
