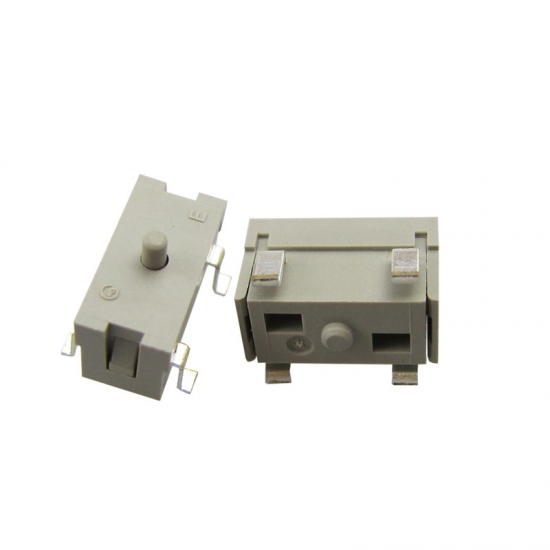

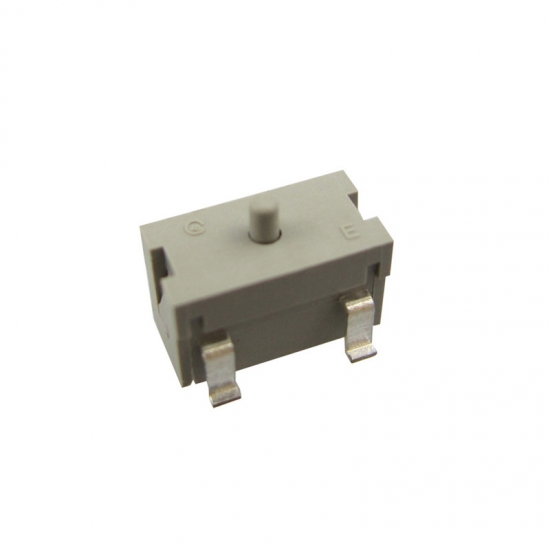

3.8x7.5mm motion detector switch for Samsung Panasonic

3.8x7.5mm motion detector switch smd detector switches factory mini electric switch for Samsung Panasonic,  super mini, long using life. use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.

  • Brand:

    Gangyuan
  • Item No.:

    KAN7538-D1
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3-5 Working Days after payment
Product Details

3.8x7.5mm motion detector switch for Samsung Panasonic



Feature


Product Name: smd detector switches

Product specifications: 3.8×7.5×6MM

Product model: KAN7538-D1

Operational force: 0.25N

Product life: 100,000 times

Full Travel: 0.15+-0.1mm




Basic parameters

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

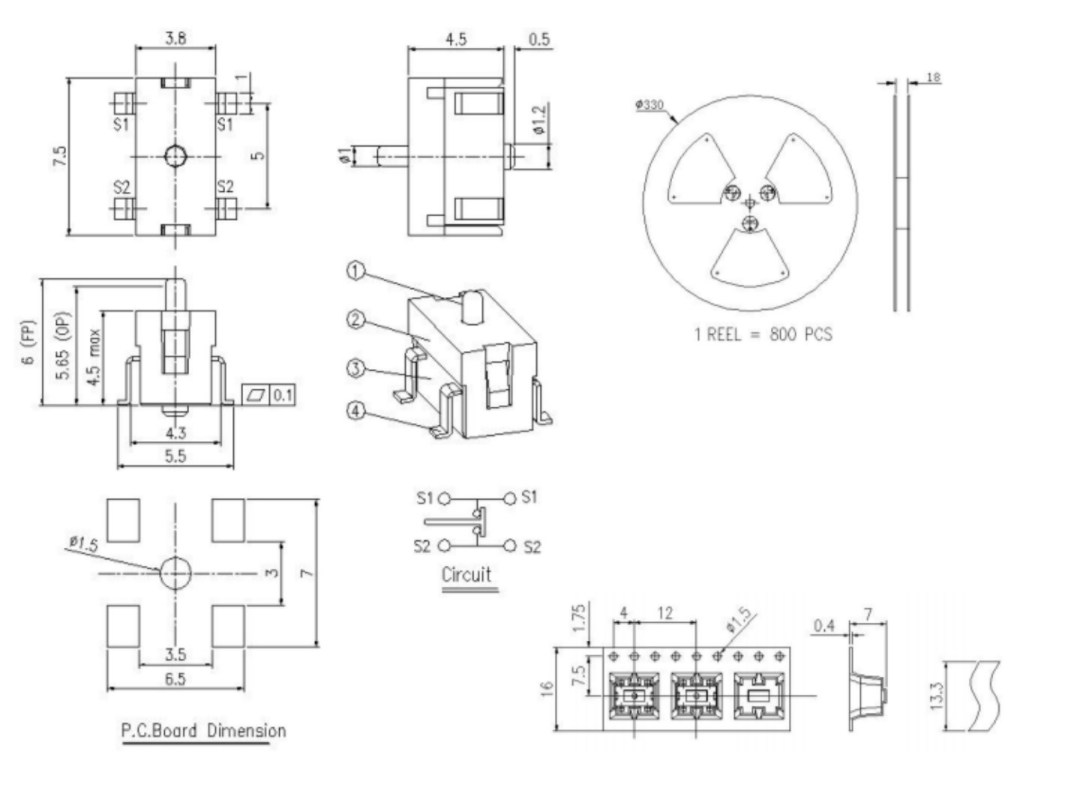

Dimension




Application

Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
