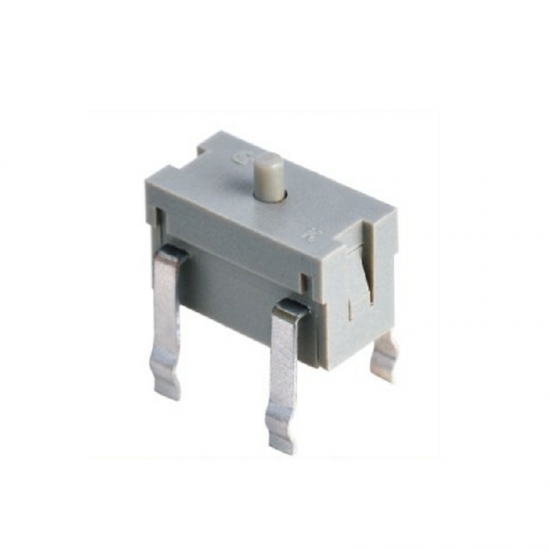

Private mold 4 long pin with push button Motion Detector Switch white color

Private mold 4 long pin with push button Motion Detector Switch white color, Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.

  • Brand:

    Gangyuan
  • Item No.:

    KAM7538-D1
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    Silver and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3-5 Working Days after paymen
Product Details

Product Item:

Private mold 4 long pin with push button Motion Detector Switch white color, super mini.


Feature:

Model Name:

4pin detector switch

Model No.:

KAM7538-D1

Dimension:

3.8×7.5×6MM

Operating force:

0.25N

Life cycles:

100,000Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Contact resistance:

150m Ω max.

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Full travel :

0.15+-0.1mm


Dimension:


Application:

Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
