Home Switch Detector Switches With mounting bosses detector switch

With mounting bosses detector switch

The detector switch is an electromechanical device used to detect the internal mechanical motion or circuit state of the device.

  • Brand:

    Gangyuan
  • Item NO.:

    KAM4736K-4L0375-A
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and Silver
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

With positioning column lever actuator detector switch

SPST normally open detector switch


Product Description


Max. Current: 50mA

Max. Voltage: DC12V

Contact Resistance: ≤200mΩ
Insulation Resistan: ≥100MΩ
Operating Force: 50±20 gf
Full Travel: 1.0±0.5mm
Operating Temperature: -20℃~+85℃
Operation life: 50,000 cycles

Solder temperature: 245±5℃

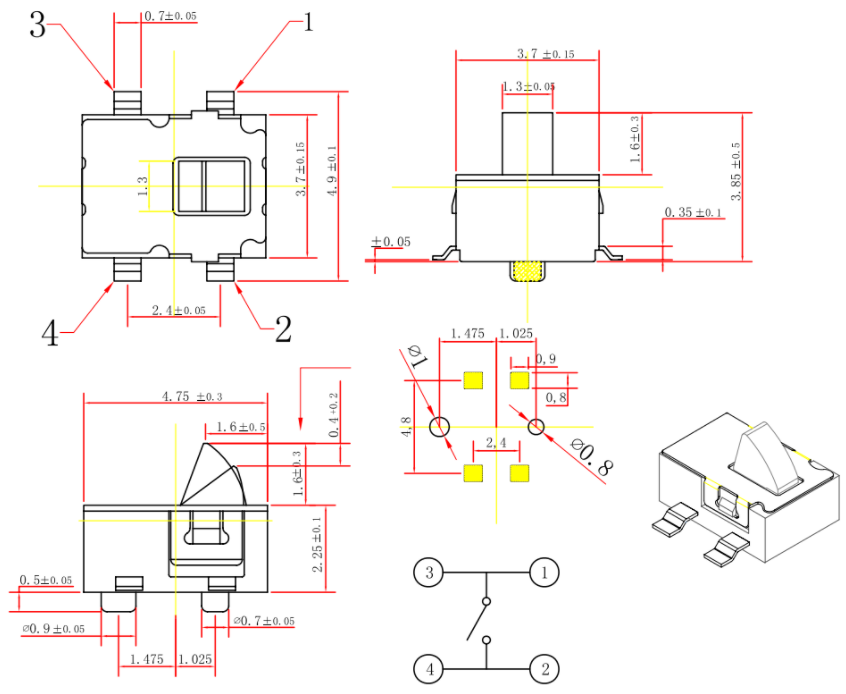

Drawing



Advantages of detector switches


1. Long life expectancy

The common detector switch can reach 100,000 times of braking, which is more suitable for consumer applications. The contact mechanism of the detector switch is a key element for prolonging the service life.

2. Small form factor

The detector switch is also used for the shutdown and startup functions of MP4 and video players, e-books and multimedia phones. This design usually requires the switch to have a very small form factor and package.

3. Design diversity

The diversity of detector switch designs is critical to their ability to meet the needs of different applications.

4.Expand beyond mobile and gaming devices


Types of detectior switches


1. Surface mount detector switch

2. Through hole detector switch

3. Inching type, lever drive and over-travel type

4.  It has a pendulum brake design for top, side, left and right side brakes



FAQ


 1. Q: Are you detector switch manufacture/ factory? Location?

     A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?

    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6. Q: Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery.
