If the flex cable terminal pads face down, use bottom contact models.
Brand:
GangyuanItem NO.:
GYFA0520Order(MOQ):
2000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and WhiteShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentRight Angle Low Contact SMT Type 50VAC,DC0.5A FPC Connector
Parameter
Fpc electronics
Contact Resistance: ≤40mΩ
Insulation Resistance: ≥50MΩ
FPC Retention Force: Pos. x 1.0N Min.

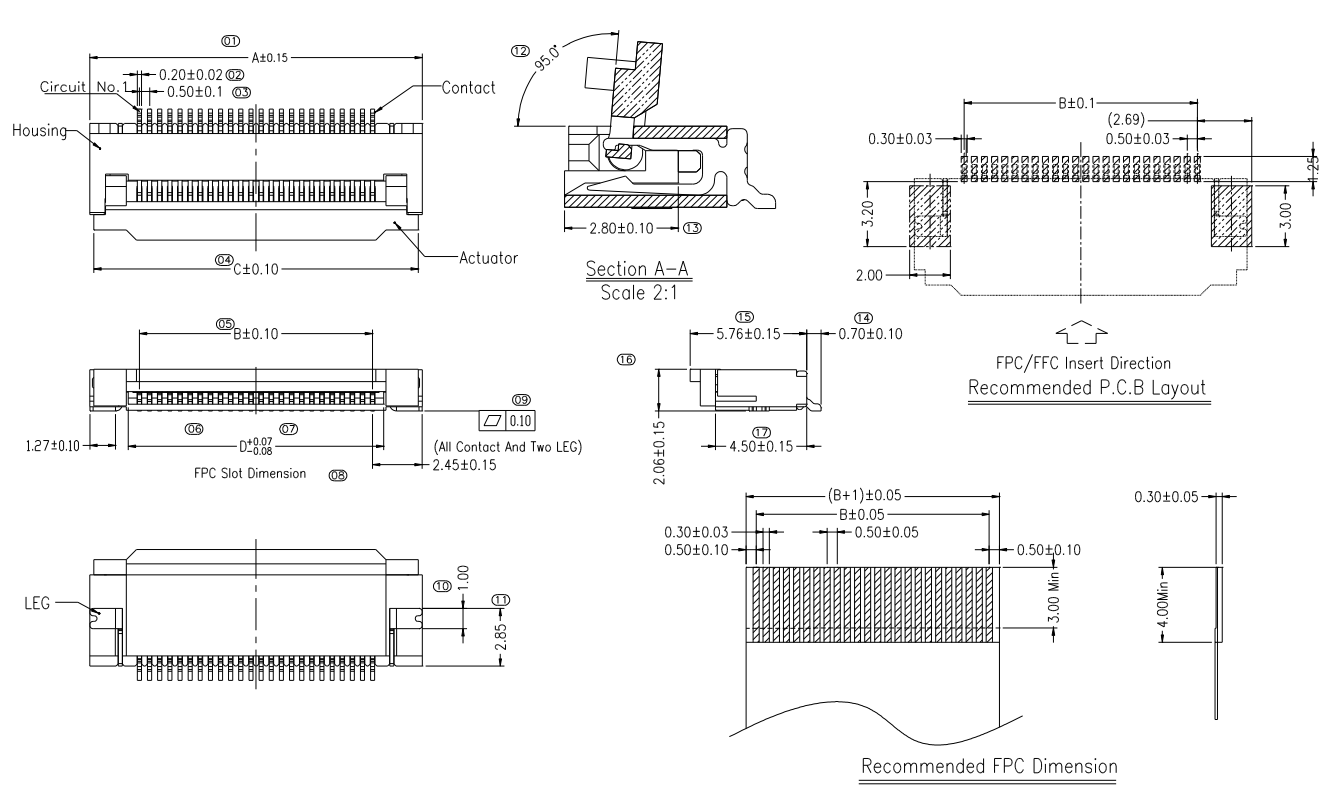

Drawing

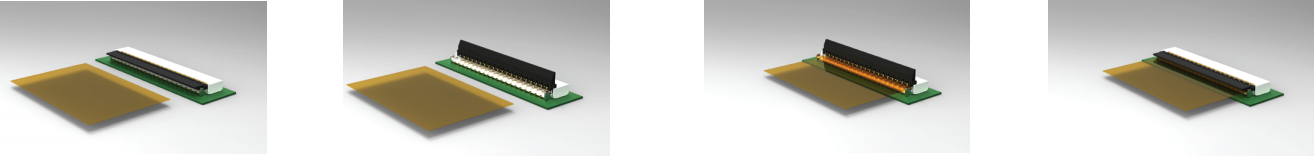

Front Flip Lock Actuator
Step One: Open the Flip Lock Actuator.
Step Two: Insert the FPC into the Connector
Step 3: After inserting the FPC, close the flip lock actuator.
Step 4: The FPC is now securely plugged into the connector
Features
0.5 mm fpc connector
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Two or more wire windings placed around a common magetic core is the physical structure of a transformer.
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
The extensive function of the connector is to rely on the connection of the cable (FPC or FFC) to conduct the signal between the two lines on the PCB.
FPC: Flexible Printed Circuit board, It uses soft materials and has good bending, folding and stretching properties.
The connector with double contact points can improve the directionality of the contact points of the cable assembly when the customer is in the research and development stage.
Flat Flexible Cable Connector with 0.5mm pitch. Orientation is side entry and surface mount, with a back flip lock actuator.
A type of connector intended to connect FPCs (Flexible Printed Circuits) and PCBs (Printed Circuit Boards). A method of connecting FPCs is directly inserting them into the connector. Connection with FFCs (Flexible Flat Cable) is also possible.
