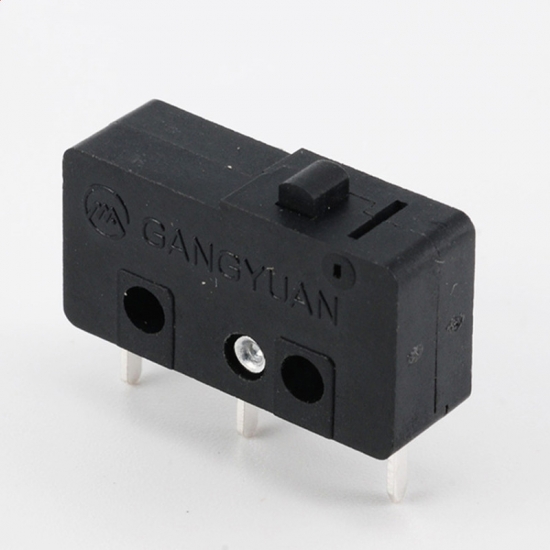

Home Switch Micro switch G15 Series T125 5e4 micro switch

T125 5e4 micro switch

Good quality T125 5e4 snap action micro pressure switch

  • Brand:

    Gangyuan
  • Item NO.:

    G15-10PM
  • Order(MOQ):

    1 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Good quality T125 5e4 snap action micro pressure switch

Basic Information

Model Name:

ENEC 3 pin micro limit micro pressure switch 40t85 5e4 ip67

Model No.:

G15-10PM

Dimension:

44X34X34 cm

Operating force:

150±50gf

Life cycles:

10,000Cycles

Waterproof:

High Level

Working tempreture:

-25℃~+125℃

Rating:

10A 125/250VAC

Insulation resistance:

100MΩ Min.

Operating relative humidity

≤85%

Contact resistance:

100m Ω max.


Dimension

micro switch 5a250v ac no 40no 20nc 8.jpg

micro switch hy50 17.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
