Home Switch Push button switch t125/55 DPST latching push button switch

t125/55 DPST latching push button switch

This push button sswitch are widely used on kind of device. Latching type will help you to reset your application or control easilly.  It is a SPDT switch.

  • Brand:

    Gangyuan
  • Item NO.:

    PS22H01-L1-E3
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Metal
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

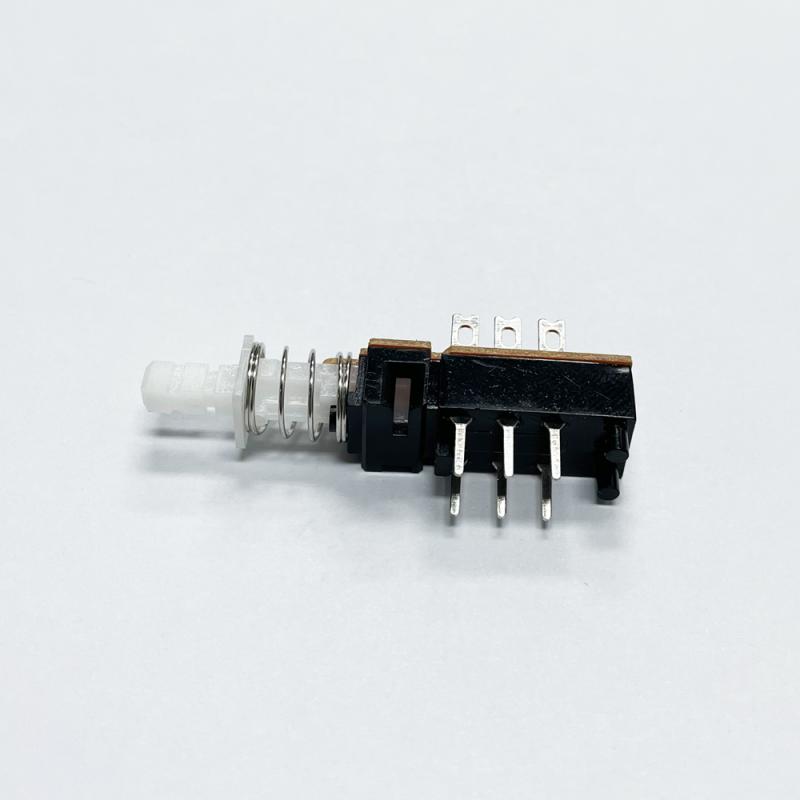

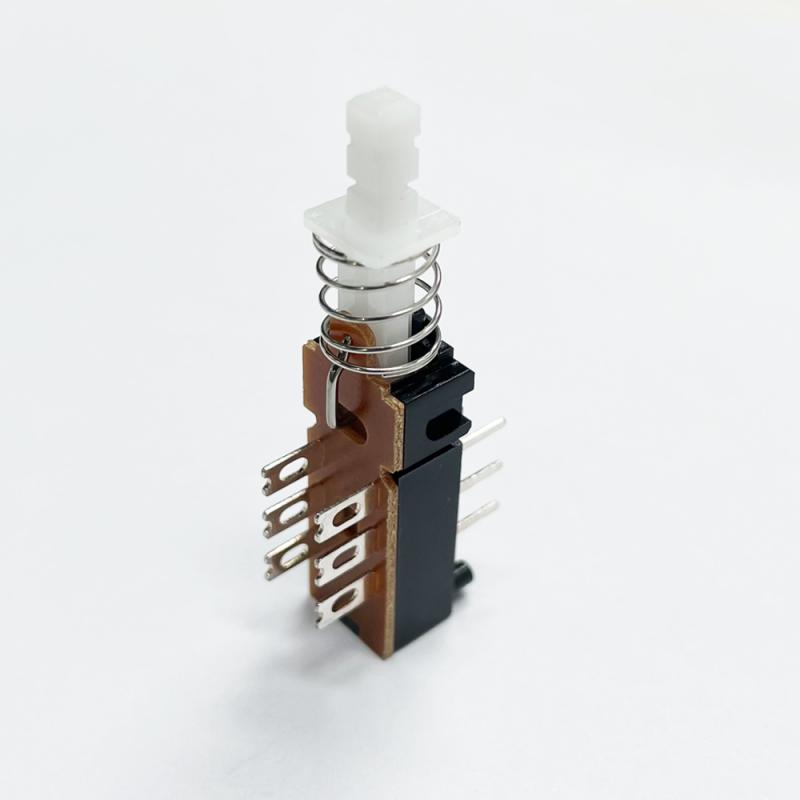

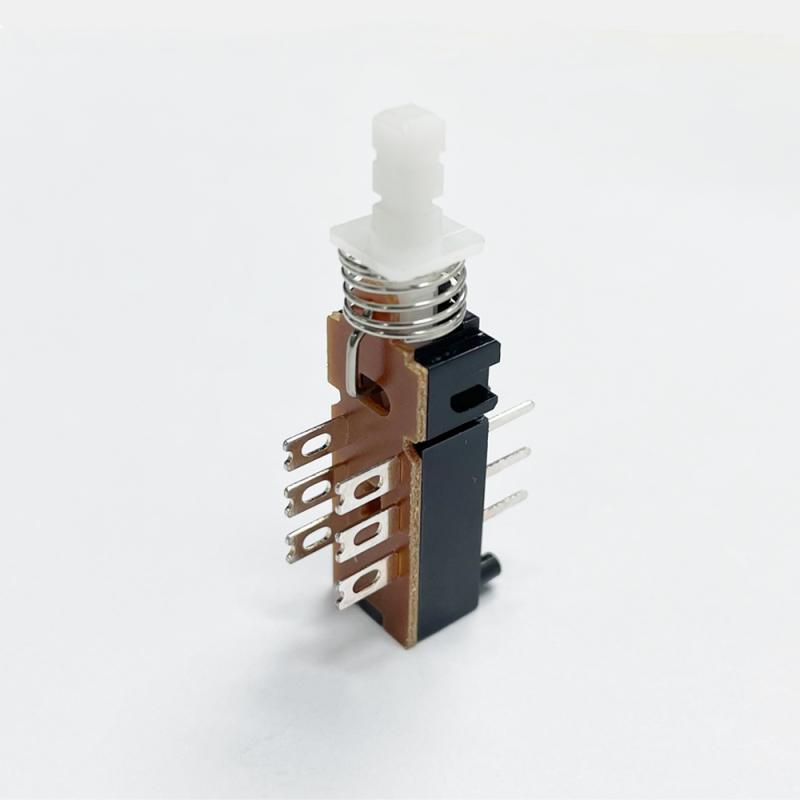

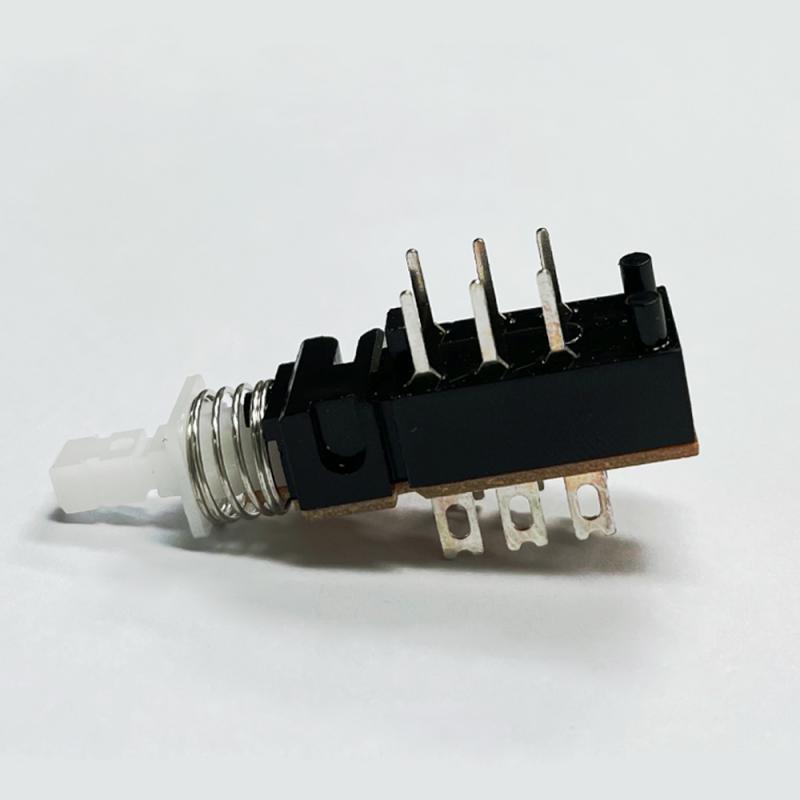

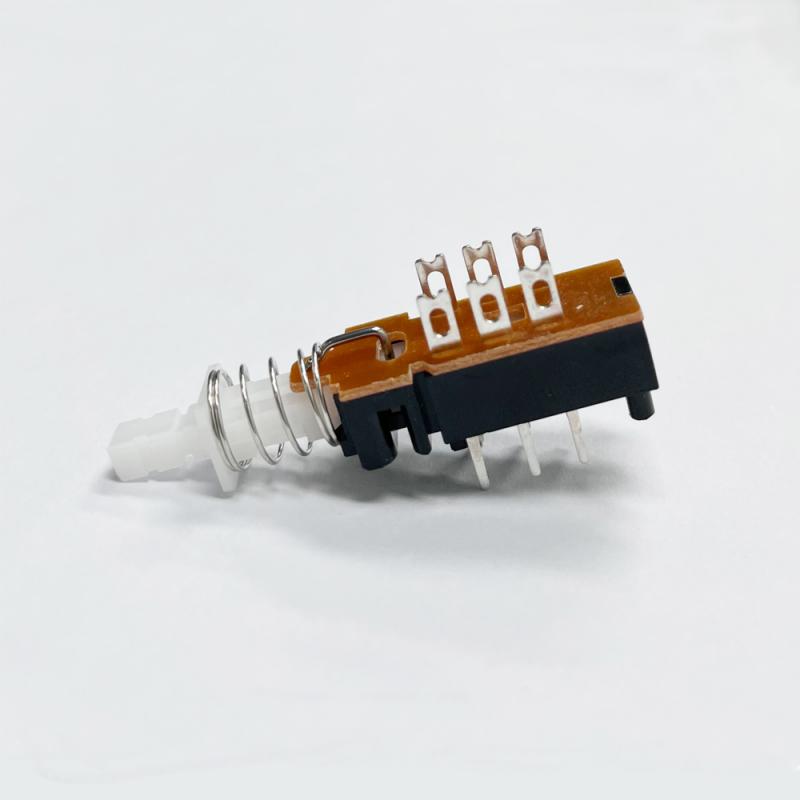

t125/55 latching push button switch

Connection form:supporting connector/welding wire.


 Push button switch datasheet


Type:  push button switches

Action form: Latching

Ratings:  24VDC,1A

Contact resistance: 30mΩ Max

Insulation resistance :DC100V 100M Ω/Min

Withstand voltage: AC250V/ 1 Min

Protection force: 800±100gf

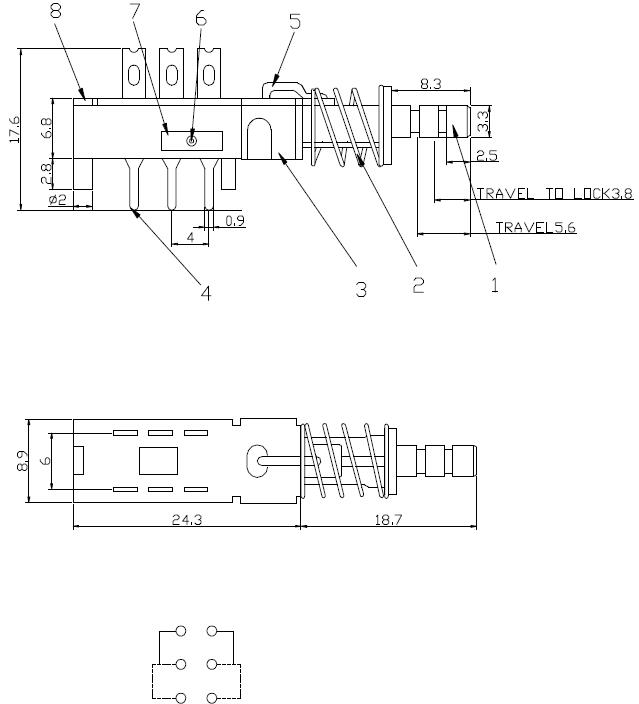

 Dimension

 How does the push button switch work?


push button switch  is latching switch which stop power on and off hwen push on the stem, in the state of an electrical circuit  ... A 'push to make' switch allows electricity to flow between its two contacts when held in. When the button is released, the circuit is broken.


 Application


  • automotive (air bags, heating/AC, door handles, column switches)
  • aerospace (main cabin lights, flight attendant buttons)
  • consumer (cell phones, headsets, remote controls, wearable electronics)
  • medical (hearing aids, health diagnostics, portable equipment)
  • industrial (control panels, instrumentation, power supplies)
  • computer (keyboards)
  • telecom/network equipment
  • handheld applications (power and selection switches, volume control, keyfobs)


  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
