Home Switch Push button switch 2 pin plastic smd push button smt tact switch

2 pin plastic smd push button smt tact switch

2 pin plastic smd mini on off pushbutton DC30V 1A push button switch

  • Brand:

    Gangyuan
  • Item NO.:

    ON-OFF 2 pin plasti
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

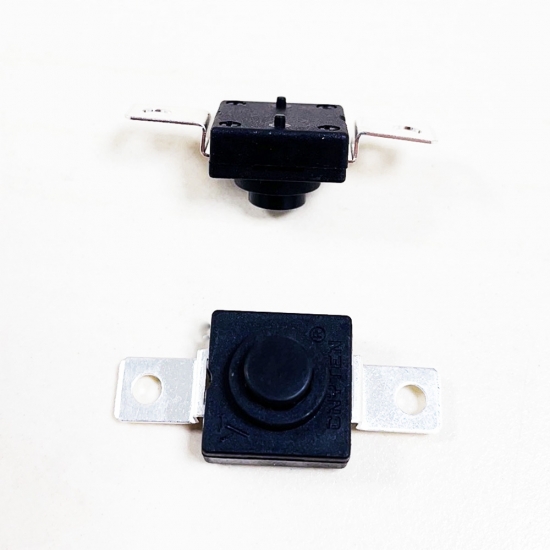

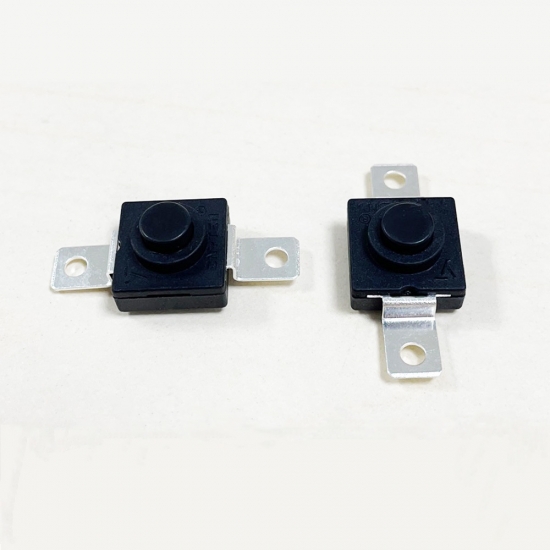

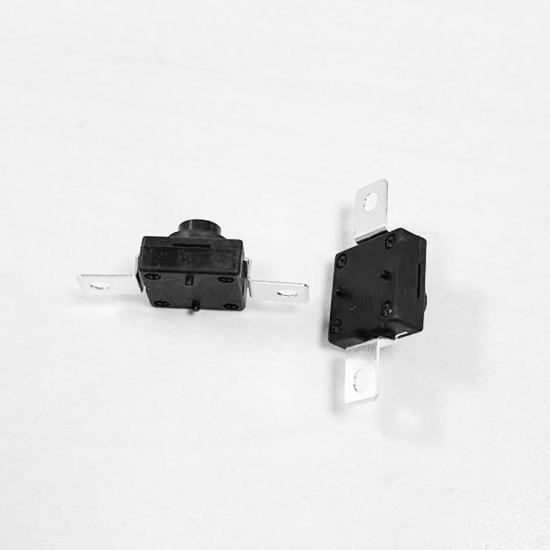

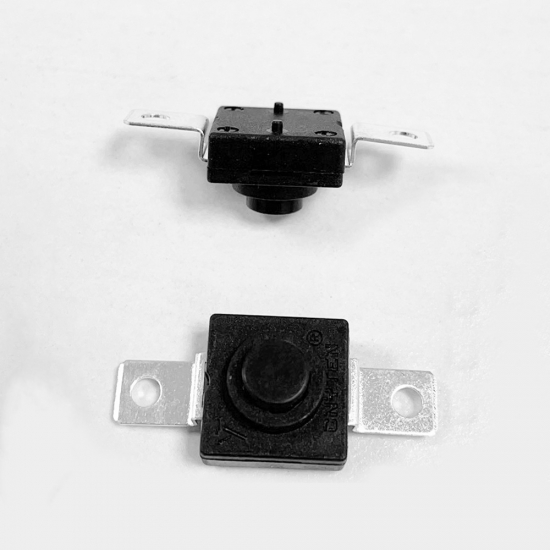

ON-OFF  2 pin plastic DC30V 1A smd push button smt tact switch


Basic Information

Model No.:

HH12B-112-Z-8.5H

Ratings:

30V DC, 1A

Contact Resistance:

≤100mΩ

Insulation Resistance:

≥100MΩ  500V DC

Withstand voltage:

500V  AC  / 1 min

Operating Force:

700±50gf

Dimension:

12-28mm x H mm

Full travel:

2.2±0.2mm

Life cycles:

50000times

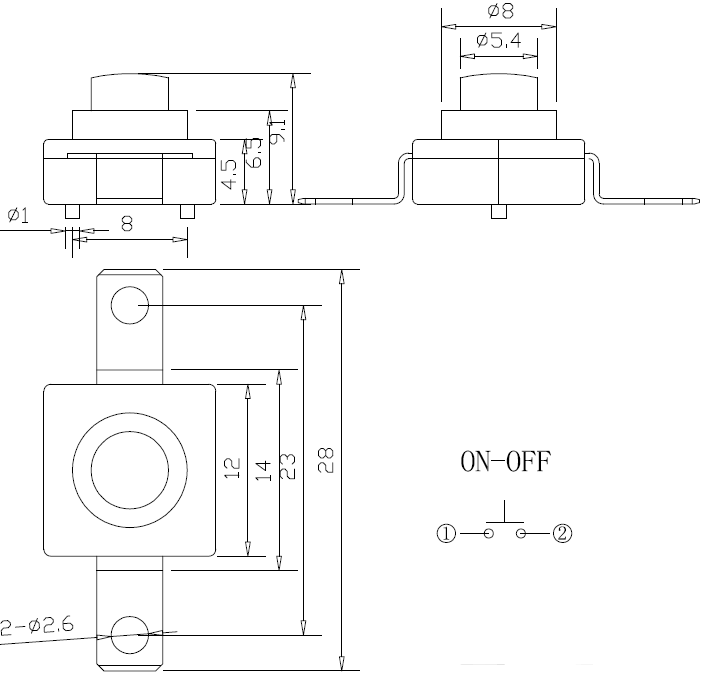

Dimension

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
