Home Switch Micro switch G15 Series snap action micro switch T125 5E4

snap action micro switch T125 5E4

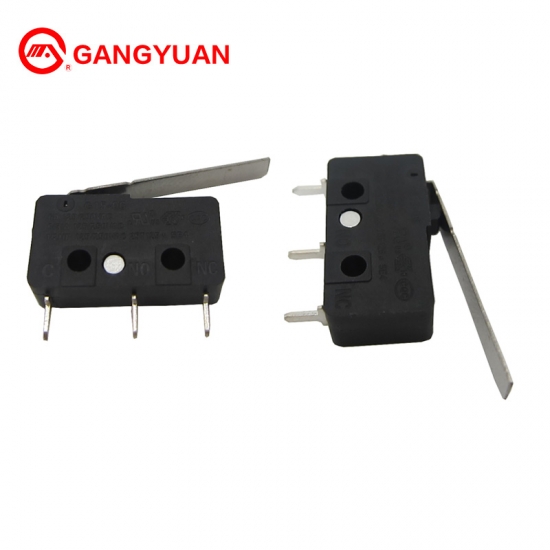

3 pin electronic push button micro switch mini snap action micro switch T125 5E4

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06SM03-30-15
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail


3 pin electronic push button micro switch mini snap action micro switch T125 5E4



Basic Information

Product name micro switch
Operating temperature -25℃~85℃
Operating Relative Humidity ≤85℃
Dielectric withstanding Voltage 1500V AC 1Min
Voltage Rating 250V  AC
Current Rating 6A
Operation force 30±15gf
Mechanical life 50000 Cycles

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
