smd tact switch

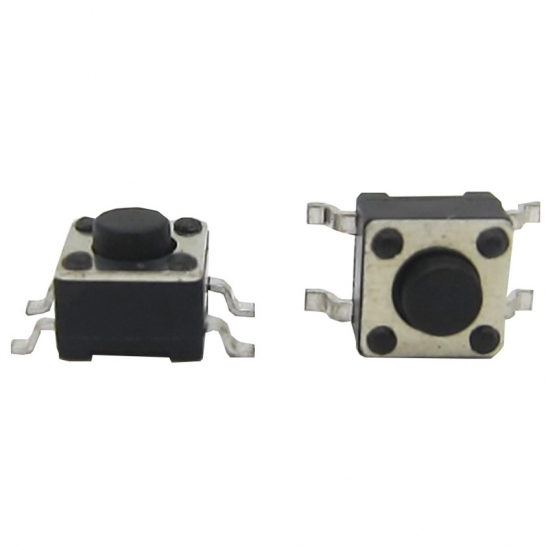

4 Pin 4.5*4.5mm Electrical Pushbutton switch smd tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN4541
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

4 Pin 4.5*4.5mm Electrical Pushbutton switch smd tact switch


Basic Information

Model Name:

SMD tact switch

Model No.:

KAN4541 series

Dimension:

4.5×4.5×H/ H=3.8/4.3/4.5/5/5.5/6/7MM

Operating force:

100gf/160gf/260gf

Life cycles:

100000/200000/500000/1,000,000 times

Working tempreture:

 -20℃to+70

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.2+-0.1mm


Dimension

KAN4541 SIZE-1.png



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
