12V momentary 3 pin tact switch

Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.

  • Item No.:

    KAN4562
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

4.5x4.5 side push tact switch 12V momentary 3 pin tact switch

Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.

Product Description:

Model Name:
3 pin tact switch
Model No.:
KAN4562
Dimension:
4.5x4.5x H (3.8-7)mm
Operating force:
100gf/160gf/260gf
Life cycles:
80,000/50,000/30000 Cycles
Working tempreture:
-20℃to+70℃
DC rating:
0.05A.12V DC
Insulation resistance:
100MΩ min.100V DC
Dielectric strength:
250V AC for 1 min
Contact resistance:
100m Ω max.
Full travel :
0.25±0.1mm
Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change

of temperature /Moisture resistance

/Sulfuration Resistance etc

Certifications:
CE,ROHS, REACH, ENEC,
Features:
High quality, durable using life

Dimension:

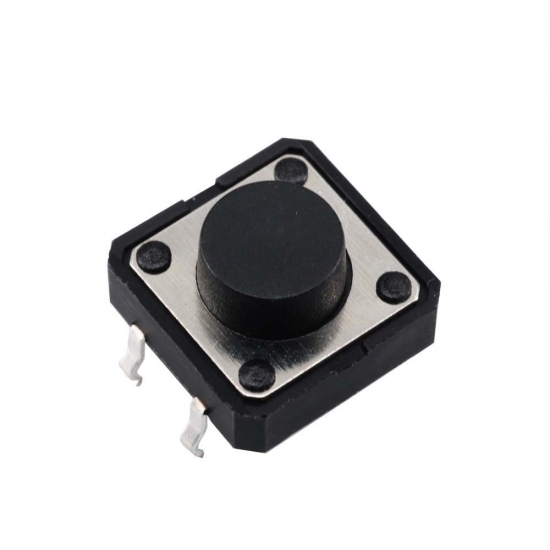

Products photos:
