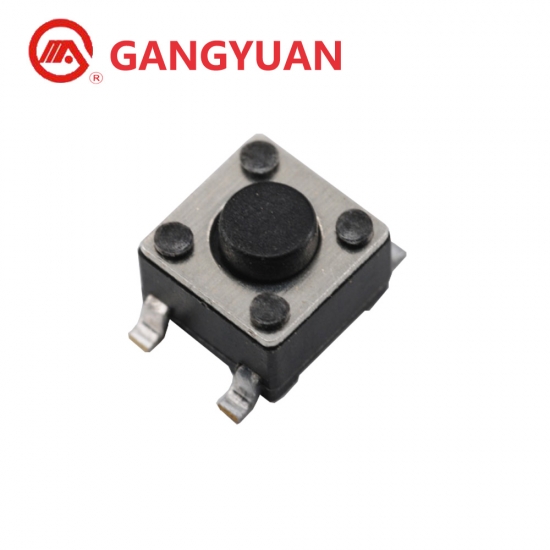

4.5mm 12Volt 4 Pins SMT Tactile Switch

4.5mm 12Volt 4 Pins Surface Type Mounting Tactile Switch Push Button

  • Brand:

    Gangyuan
  • Item No.:

    KAN4542
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

4.5mm 12Volt 4 Pins Surface Type Mounting Tactile Switch Push Button

PRODUCT DESCRIPTION


P/N: KAN4542
Type: SMD tact switch
Dimension: 4.5x4.5mm
Operating force: 100gf/160gf/260gf
life cycles: 60,000/80,000/100,000 cycles
Travel: .0.25mm±0.1mm

Specification

PCB layout size
Circuit



Contact resistance
≤50mΩ
Heat resistance
80±2℃, 96h
Insulation Resistance
≥100MΩ
Moisture resistance
60±2℃, 96h
Dielectric voltage proof
250V AC(50Hz/60Hz)/1min
Sulfuration resistance
40±2℃, 72h
Resistance to low temperature
-30±2℃, 96h
Salt Mist
35±2℃, 8h±1h
