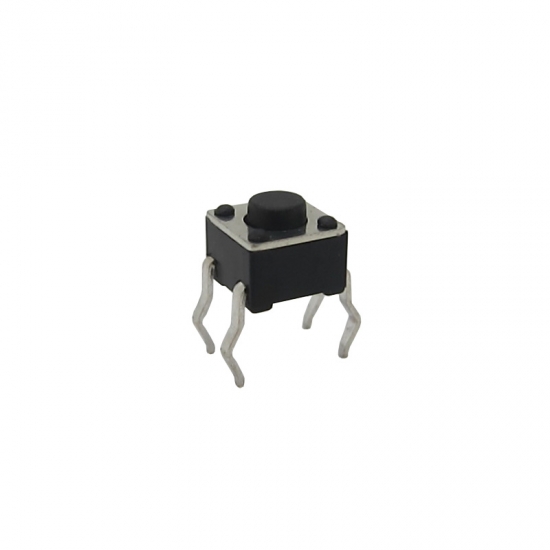

Micro 4 Pin Smd Tact Switch Tactile Switch

KAN4511: 4.5*4.5mm, height=3.8/ 5 / 6 / 7 / mm, micro mini tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN4511
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days depend on order quatity
Product Details

Micro 4 Pin Smd Tact Switch Tactile Switch


Basic Information

P/N
KAN4511
Dimension
4.5x4.5mm
Rating current
12VDC 50mA
Operating force
100gf, 160gf, 260gf(at customers request)
Life cycles

600,000/800,000/100,000cycles

Travel

0.25±0.1mm

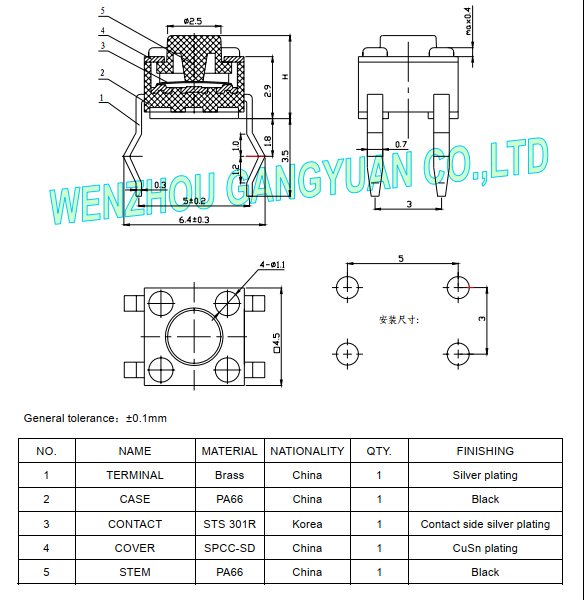

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our Factory View

1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
