smd side tactile switch

smd side tactile waterproof ip68 push button latching switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN4546-035B
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

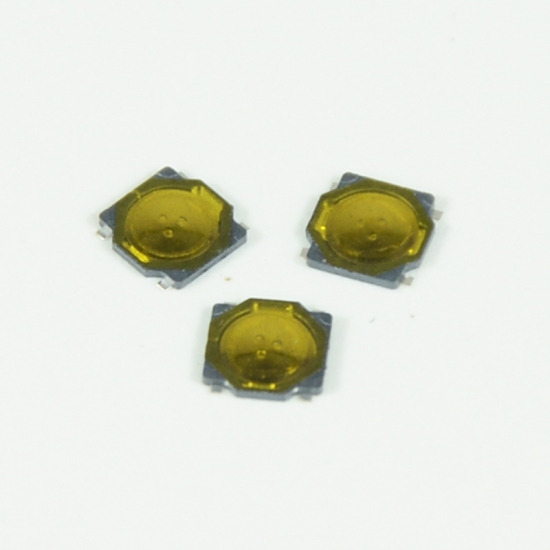

smd side tactile waterproof ip68 push button latching switch



Product Description:

Model Name:

SMD tact switch

Model No.:

KAN4546 series

Dimension:

3.7×3.7×H/ H=0.35MM

Operating force:

160±50gf

Life cycles:

50,000 times

Working tempreture:

 -25℃to±85

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.250V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.2±0.1mm
