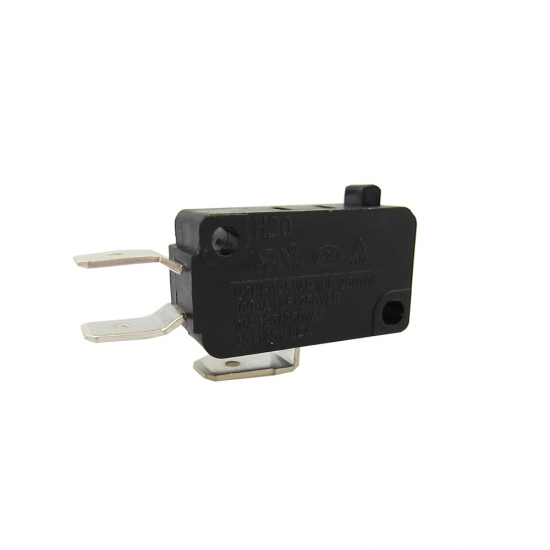

Home Switch Micro switch G20 Series cherry Micro switch 5a 125/250vac

cherry Micro switch 5a 125/250vac

High quality mini cherry Micro switch 5a 125/250vac switch 250v 5e4 t125

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16CM-150-08
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

High quality mini cherry Micro switch 5a 125/250vac switch 250v 5e4 t125


Product description

P/N G20-16CM-150-08
Rating 125/250VAC   16A
Operating Force 150±50gf
Life Time 50,000 Cycles
Operating Temperature Range -25℃~+125℃
Dielectric Withstanding Voltage 1500V AC 1Min
Certificate UL,ENEC,CQC
Insulation Resistance ≥100MΩ
Contact Resistance ≤200mΩ
Soldering Temperature 260±5℃ 5s

Drawing
