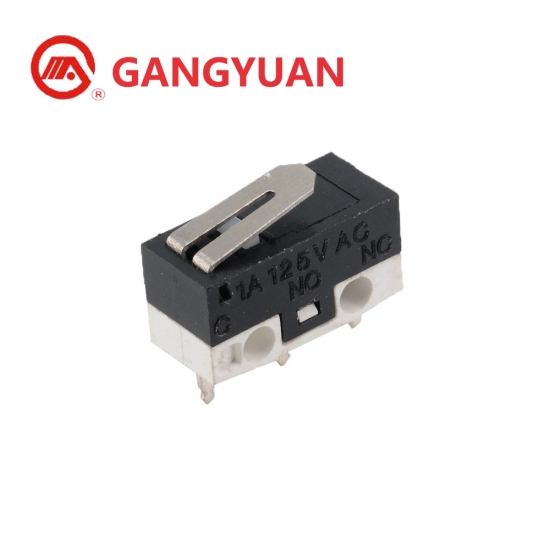

Silver contact 1A 3A 125V switch pressure sensitive micro switch
Brand:
GangyuanItem NO.:
DM1-07PW-30-3Order(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after paymentSilver contact 1A 3A 125V switch pressure sensitive micro switch
Basic Information
|
Item No.
|
DM1-07PW-30-3
|
|
Dimension
|
12.8mmx5.8mm
|
|
Contact resistance
|
≤100mΩ
|
|
Insulation resistance
|
AC 500V 1Minute
|
|
Operating temperature
|
-25℃+85℃
|
|
Operating force
|
80±15gf
|
|
Life expectancy
|
500,000Cycles
|
|
Rating
|
AC 125V 1A/AC 125V 3A
|
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
