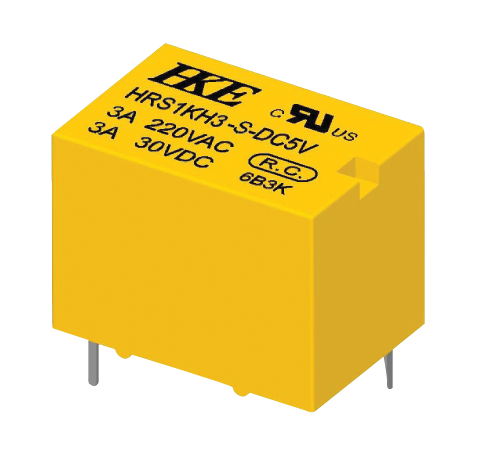

Miniature Size Sealed Protect Feature and PCB Usage Power Relay

Basic Information

Insulation Resistance

Min. 100MΩ 500VDC

Dielectric Strength

Between open contacts

750VAC, 1min



Between coil and contacts

1,000VAC, 1min

Operate Time

Max. 6ms

Release Time

Max. 5ms

Operating Temperature

-25℃ to +70

Humidity

35~95 RH, +40

Shock Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 4.0g




Insulation Resistance

Min. 100MΩ 500VDC

Dielectric Strength

Between open contacts

750VAC, 1min



Between coil and contacts

1,000VAC, 1min

Operate Time

Max. 6ms

Release Time

Max. 5ms

Operating Temperature

-25℃ to +70

Humidity

35~95 RH, +40

Shock Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 4.0g
