Home Relay & Sensor 3 contact auto relay

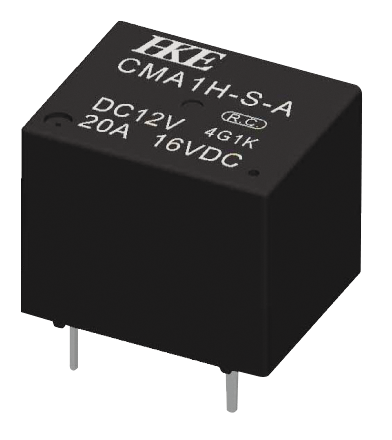

3 contact auto relay

General Purpose Usage and High Power Contact Load 3 contact auto relay

  • Brand:

    HKE
  • Item NO.:

    CMA1
  • Order(MOQ):

    1pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

General Purpose Usage and High Power Contact Load 3 contact auto relay

Basic Information

Contact Form

1 Form A, 1 Form B, 1 Form C

Contact Material

Ag Alloy

Contact Rating

15A 14VDC Resistive (B, C) 20A 14VDC Resistive (A)

Contact Resistance

Max. 100mΩ (6VDC 1A)



Load

Max. Switching Voltage

75VDC



Max. Switching Current

20A



Max. Switching Power

280W



Life

Electrical

100,000 operations at nominal load



Mechanical

10,000,000 operations


Insulation Resistance

Min. 100MΩ 500VDC

Dielectric Strength

Between open contacts

750VAC, 1min



Between coil and contacts

1,000VAC, 1min

Operate Time

Max. 15ms

Release Time

Max. 10ms

Operating Temperature

-40℃ to +85

Humidity

35~95 RH,+40

Shock Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 10.0g


Dimension

30 relay.jpgtbb89 relay.jpg
