Home Relay & Sensor 6pin electronics relay

6pin electronics relay

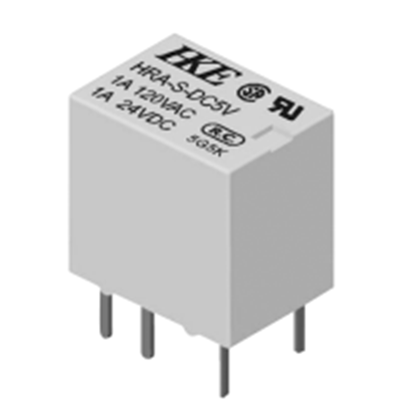

Wholesale new mini Relay module 6pin electronics relay

  • Brand:

    HKE
  • Item NO.:

    HRAH-S-DC12V
  • Order(MOQ):

    1pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    gray
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


Wholesale new mini Relay module 6pin electronics relay


Basic Information

Product name

Relay

Contact Form

1 Form C

Contact Material

AuAg overlay

Contact Rating

1A 120VAC/24VDC

Contact Resistance

Max. 50mΩ (6VDC 0.1A)

Max. Switching Voltage

120VAC/30VDC

Max. Switching Current

2A

Mechanical

10,000,000 operations

Insulation Resistance

Min. 100MΩ 500VDC

Operating Temperature

-25℃ to +70℃


Dimension

OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)

magnetic relay.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
