Home Relay & Sensor DC Power Relay Availble in PCB

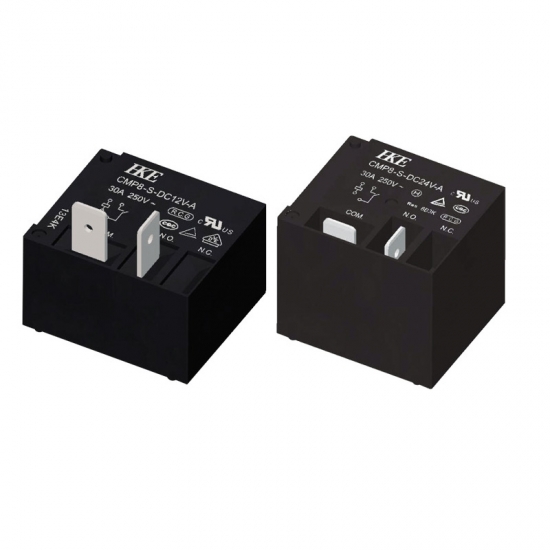

DC Power Relay Availble in PCB

High contact capacity, up to 30A/250VAC

Dielectric strength of 2500V between coil and contacts

Available in both PCB and quick connect terminals

Exposed or concealed quick connect terminals

Applications: industrial and home appliances, HVAC, etc


  • Item NO.:

    CMP8
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    20 working days after payment
  • Product Detail

Product Item: DC Power Relay Availble in PCB


Datasheet

Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
