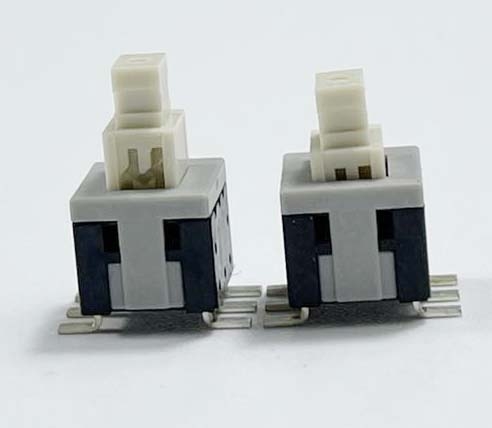

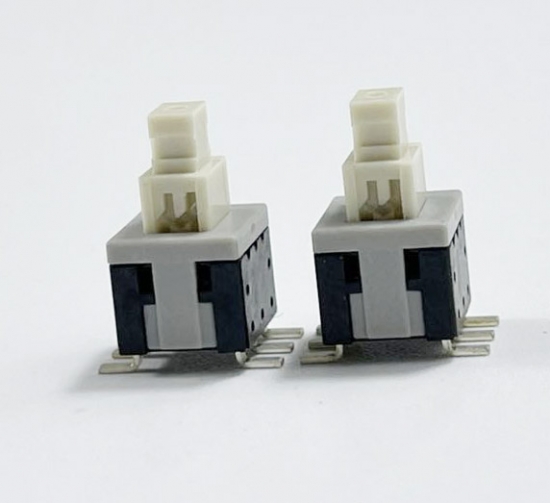

Home Switch Non locking Switch New slilent latching momentary SMT push button switch

New slilent latching momentary SMT push button switch

size 5.8*5.8mm momentary  push button switch

OFF-ON circuit dessign push button switch

  • Brand:

    Gangyuan
  • Item NO.:

    PB11M06371-04
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T
  • Product Detail

Quick Details

Place of Origin: Zhejiang, China
Brand Name: GANGYUAN
Model Number: PB11M06371-04
Protection Level: normal
Max. Current: 0.1A
Max. Voltage: 30V DC
Product Name: Auto lock switch

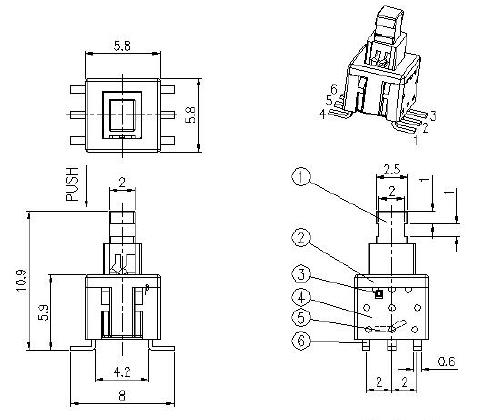

Dimension: 5.8x5.8mm
Operation life: 10000cycles
Soldering: wave soldering
Spring: SUS
Full Travel: 2±0.2mm
Lock Travel: 1.2±0.2mm
Certificate: CQC CE ROHS ISO9001
Operation Force: 180g/250g

Function: No-locking


Packaging & Delivery

Normal Packing: 1000pcs/ polybag per box, 18boxes in one carton
Net weight: 30kg Gross weight: 32kg
Reference carton size: 45*35*28cm
(we also packing based on product using ,such as ringing style for SMD switches. )
Shipment: airline express ,sea way, express, etc. at your request.
Port :  Shanghai, Shenzhen
Lead Time :  Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 5 To be negotiated

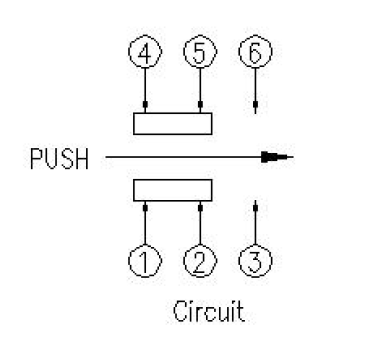

PCB design



Lately, a few new switch items are put into mass production. such as SMT push button switch with latching and momentary styles.Normal PCB circuit design and opposite one.
