Wenzhou Gangyuan Electronics Co.,Ltd.
The lock push button switch is mainly used in automobiles and is used for overhead light switches.
Brand:
GangyuanItem NO.:
CH-02Order(MOQ):
100PCSPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：

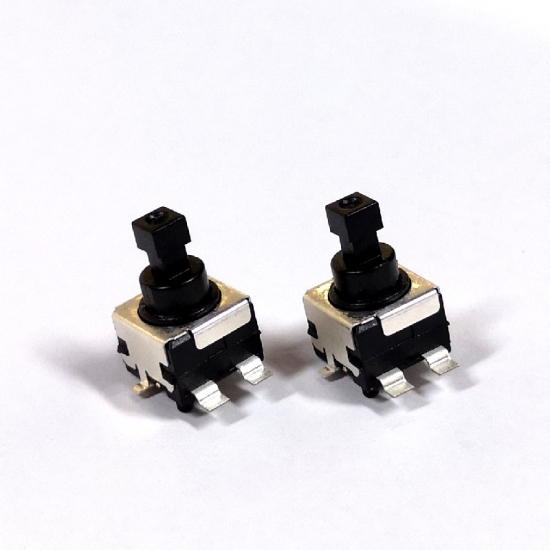

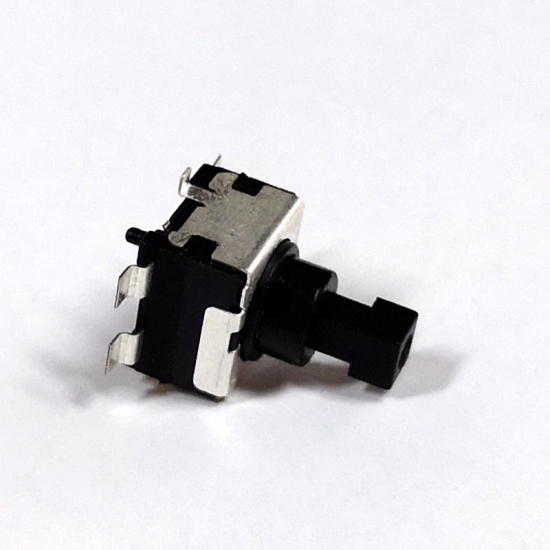

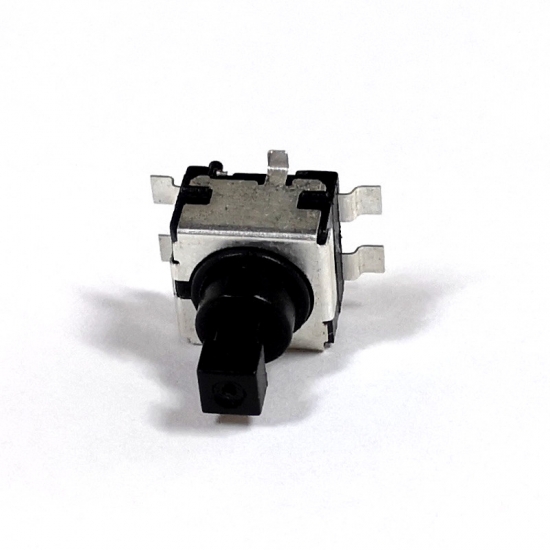

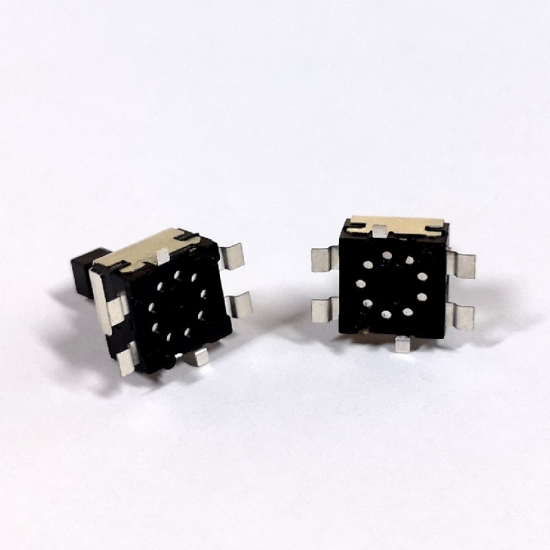

7-14 working days for paymentAutomobile SMD 4 pin push button lock switch
When the switch is in the self-locking state, a reverse pull-off force of more than 10N cannot be applied to the switch button to avoid damage to the internal structure of the switch.
Specification Information
| Product Name | Lock Push Button Switch |
| Operation Force | 3±1N |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤100mΩ |
| Rating | 0.5A DC12V |
| Total travel | Max 2.8mm |
| Locking stroke | 1.5±0.3mm |
| Pin | 4 Pin |
| Application |
Car |

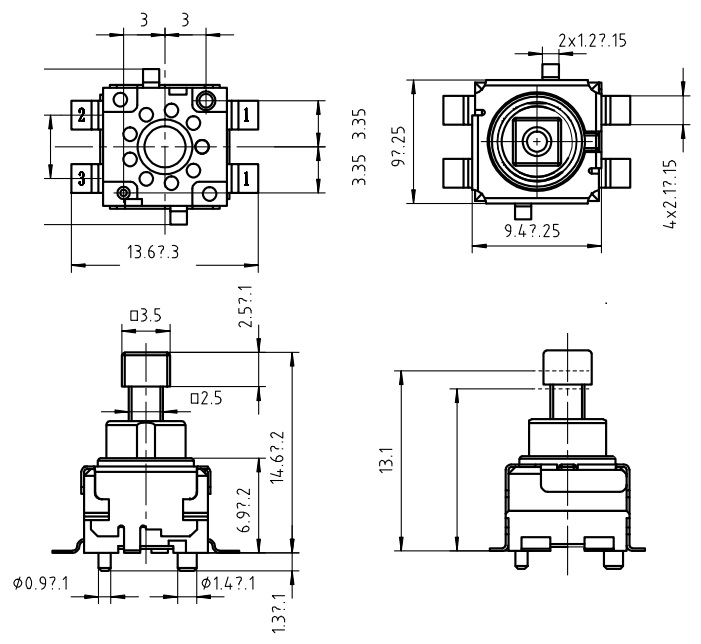

Dimension
Application

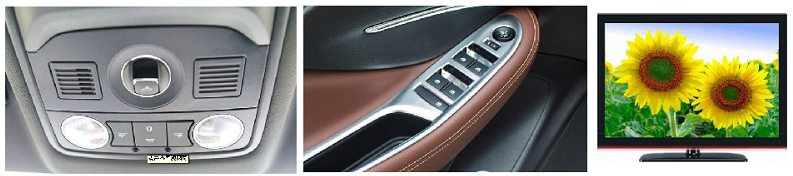

This auto push button switch can be used in reading lamp and window locking switches. Or it can be used for black household appliance, like TV set.
Switch operation mode
The operation of the switch is divided into 2 ways: pressing and rotating.
Most of the latching auto lock momentary push button switch operations are done by pressing, including push and pull. A few switches are done in a rotary way.
For example: ignition switch, headlight switch, auxiliary switch on steering column handle, light adjustment switch.
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
