Home Switch Non locking Switch Latching keyboard 6pin reset push button switch
6pin non momentary 30volt push button switch 6pin non momentary 30volt push button switch 6pin non momentary 30volt push button switch

Latching keyboard 6pin reset push button switch

Latching push button switch used for keyboard

effective value :30V DC, 0.1A

  • Brand:

    Gangyuan

  • Item NO.:

    PB22E08431-06

  • Order(MOQ):

    500

  • Payment:

    EXW

  • Market Price:

    $0.045

  • Price:

    $0.045/pc
  • Price Range:1000 - 10000/$0.045

  • Product Origin:

    Zhejiang , China

  • Color:

    black natural

  • Shipping Port:

    Shanghai,Shenzhen

  • Lead Time：

    7-10 working days
Contact Us

  • Product Detail

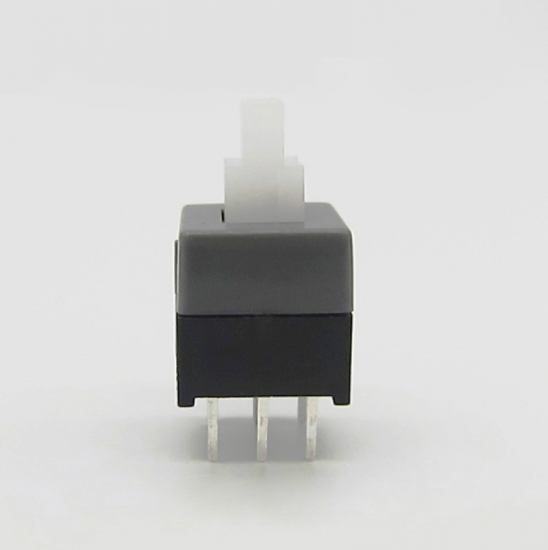

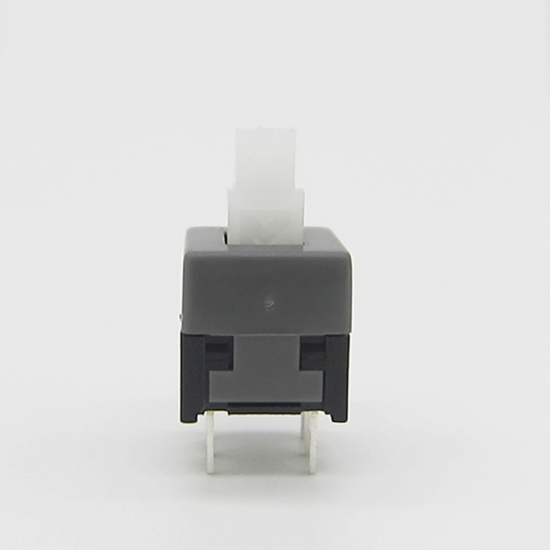

Latching keyboard 6pin reset push button switch

Quick review:

Effective value :30V DC, 0.1A

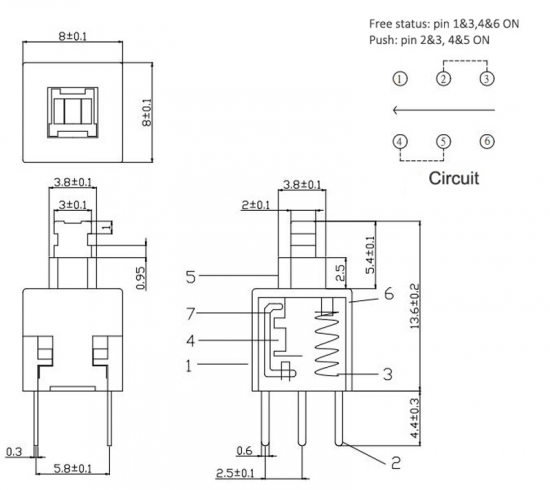

Dimension:8x8 mm
Operating Force: 300±80gf
Contact resistance:100mΩ Max
Certificate: CQC CE ROHS ISO9001
Operation life: 10,000 cycles
Travel: 2.4mm±0.2mm
Insulation resistance: 100MΩ Min

Contact resistance: 100mΩ

Protection Level: normal

Capability: 1000000pcs/month

Package Type:

1000pcs/polybag, then in carton,

carton size: 44*34*34cm, GW: 111 KGS, N.W. 9.7 KGS
Leadtime :
MOQ or sample in 5-7 working days
Mass production: 10 working days or based on your volume.

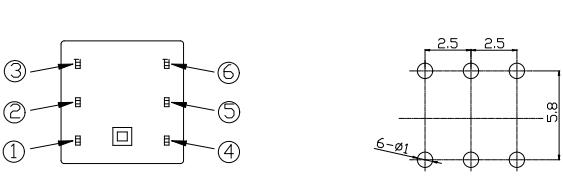

Design in PCB:

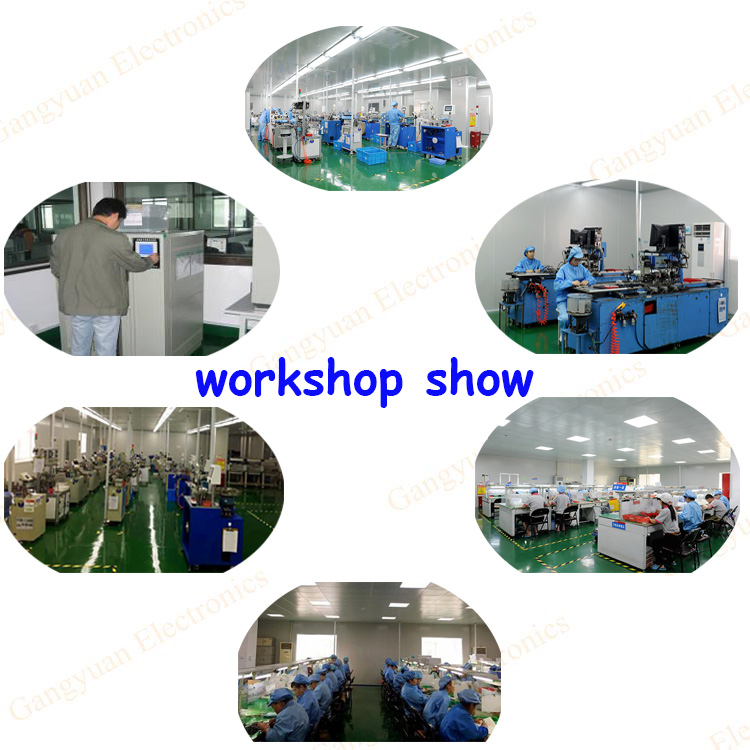

Factory shot:


Certifications:
Factory passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
Products passed CE,ROHS, UL, REACH, ENEC, CQC,CCC

FAQ:
Q1: Where is your factory located ?
 A:We have three factories locates in Wenzhou,Hubei and Shenzhen

Q2: Is free samples available ?
  A: Sure

Q3:How to deal with the quality control ?
  A:  1) Factories all passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
        2) Supply kinds of tactile switch for famous brand such as SAMSUNG,LG,PANASONIC, MIDEA, HISENSE, SCHNEIDER, ARCADUAN,FLYCO, OMARON, CANON for more than 24 years.
        3) The the defected rate of production can be controlled within less than 0.1 %. once problem happen, we will offer you problem solution within 8 hours once get complaint and deal with the problem at customer processline or online guide.
Please set assurance to do business with us.
