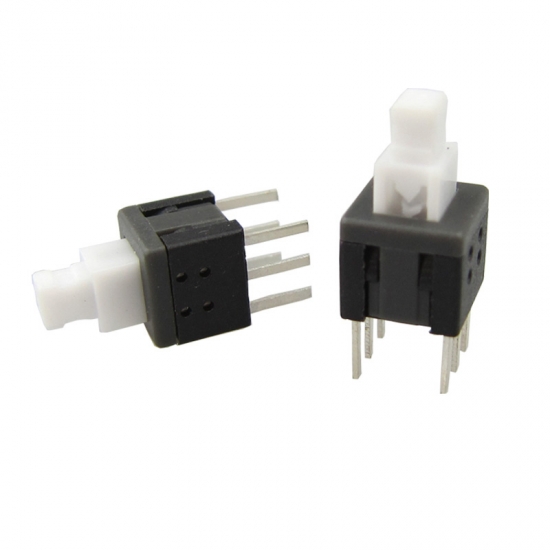

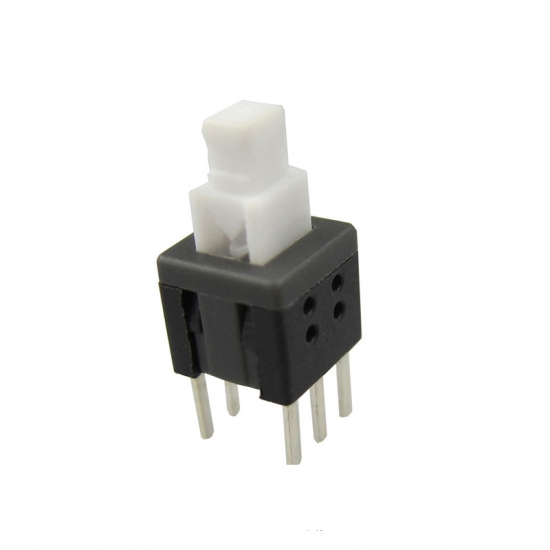

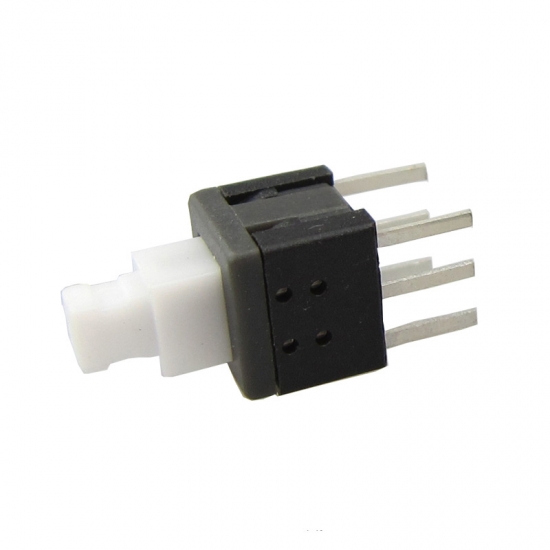

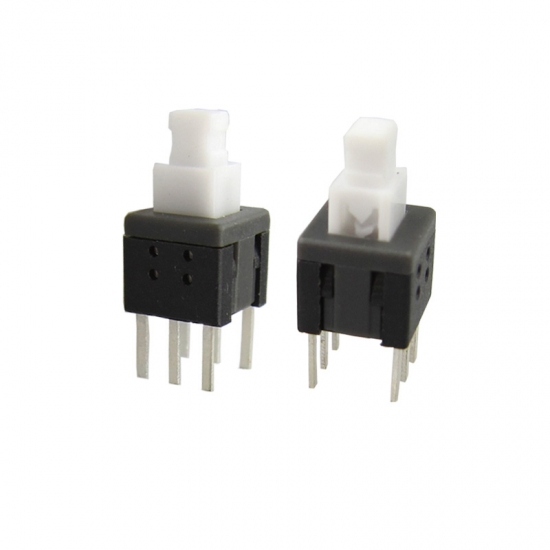

6 Pin Latching Momentary Push Button Switch

Momentary contact, 6 pins, square white push button, DIP through hole mounting, Non locking style ,5.8x 5.8mm push button switches, etc.

  • Brand:

    Gangyuan
  • Item No.:

    PB21E06371-06
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black Grey Red Blue Pink etc
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Product Item: 6 Pin Latching Momentary Push Button Switch

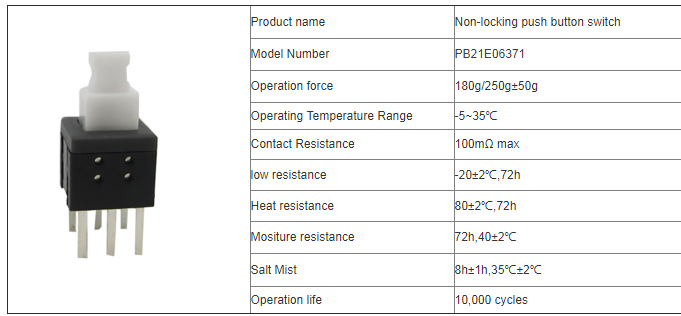

Basic Information

push button switches micro.jpg

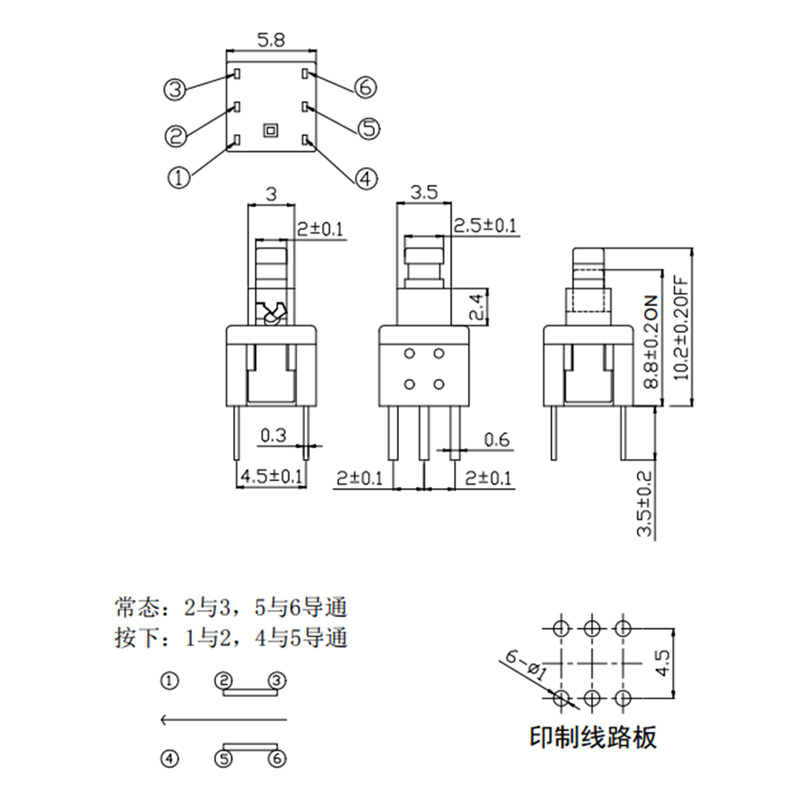

Dimension

on off button switch.jpg

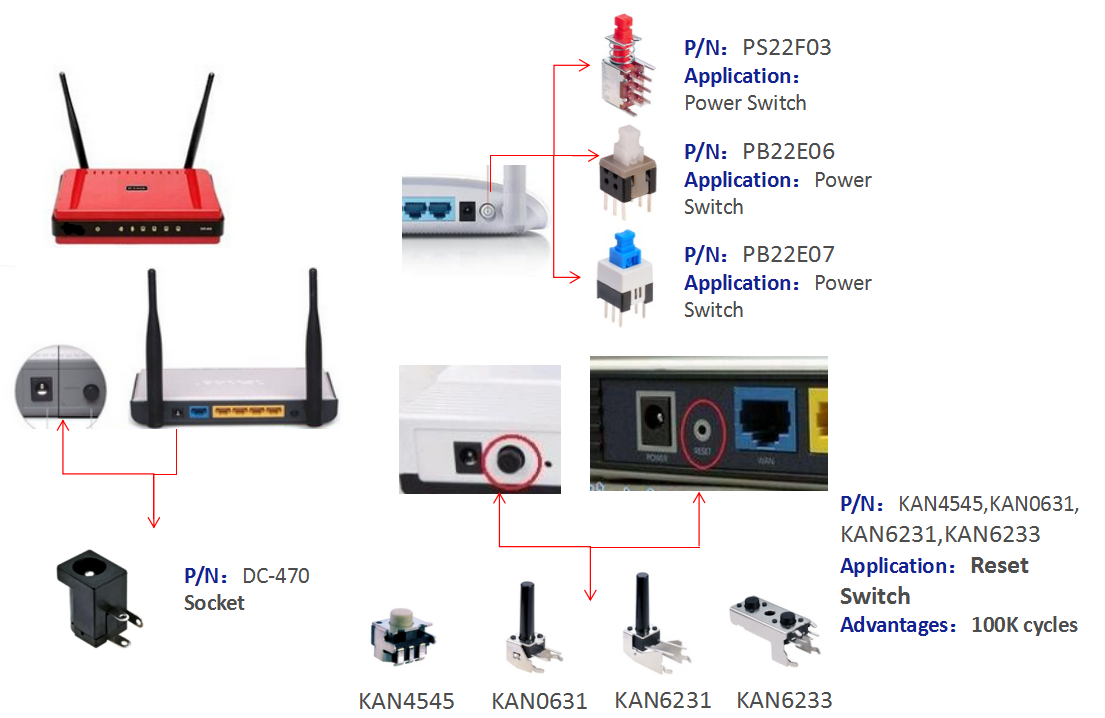

Application

Used in the fields of electronic products,setupbox, household appliances and more. High precision mechanism design offers acute operation and long service life.

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
