mini push button tact switch

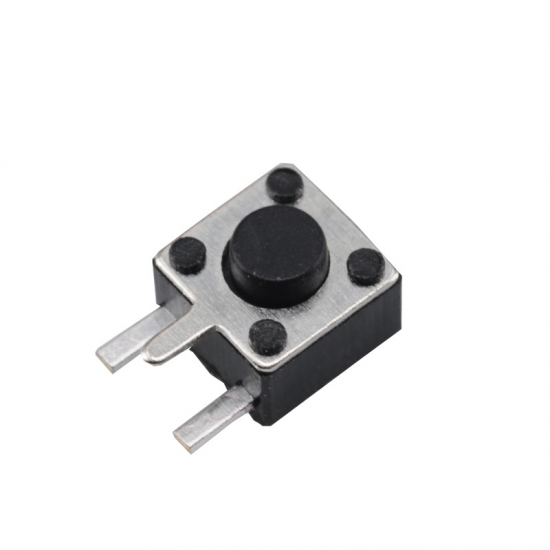

4.5x4.5 3 pin right angle automotive mini push button tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN4562
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

4.5x4.5 3 pin right angle automotive mini push button tact switch



Product Description:



Model Name:

3 pin tact switch

Model No.:

KAN4562

Dimension:

4.5x4.5x H (3.8-7)mm

Operating force:

100gf/160gf/260gf

Life cycles:

80,000/50,000/30000 Cycles

Working tempreture:

 -20℃~70℃

DC rating:

0.05A 12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm



Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:   CE,ROHS, REACH, ENEC,
 Features:  High quality, durable using life





Dimension:






20161020075131.jpg 20161020075148.jpg
