Mini Micro Switch 5A 125/250VAC

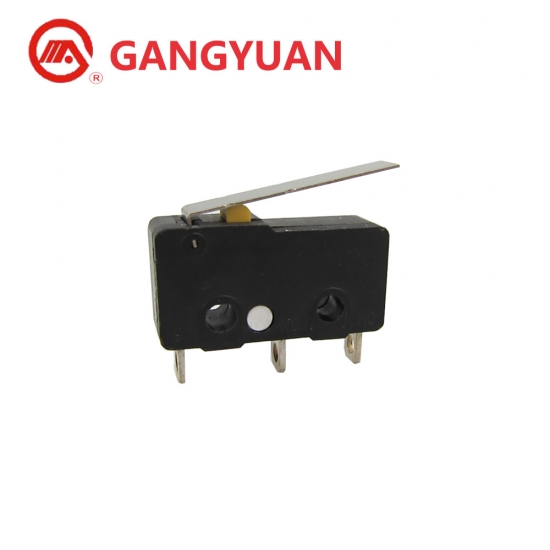

Long Straight Lever Mini Micro Switch 1A 3A 5A 125/250VAC

  • Brand:

    Gangyuan
  • Item No.:

    KW2-4-03N-40-2
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Long Straight Lever Mini Micro Switch 1A 3A 5A 125/250VAC


Prodacuct Descryption


Application

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.



Specification

Item No.
KW2-4-03N-40-2
Dimension
19.8mmx6mm
Contact resistance
≤100mΩ
Insulation resistance
 AC 500V 1Minute
Operating temperature
-25℃+85℃
Operating force
40±10gf
Life expectancy
1,000,000Cycles
Rating
AC 125V 5A/AC 250V 3A
