Home Switch Micro switch G15 Series enec micro switch t85 5e4

enec micro switch t85 5e4

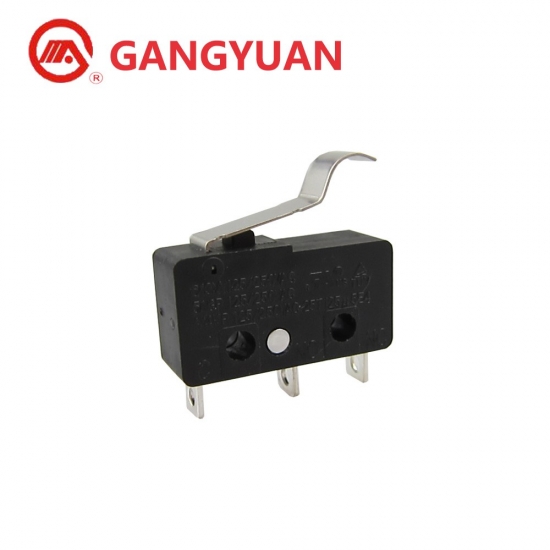

3 pin enec t85 5e4 heater micro switch with button

  • Brand:

    Gangyuan
  • Item NO.:

    G15-10SM04
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail


3 pin enec t85 5e4 heater micro switch with button


Basic Information

P/N G15-10SM04
Rating 250VAC   10A
Operating Force 40±20gf
Life Time 10,000 Cycles
Operating Temperature Range -25℃~+125℃
Certificate UL,ENEC,CQC
Insulation Resistance ≥100MΩ
Contact Resistance ≤100mΩ

Dimension

5e4t125 micro switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
