Micro Switch for Mouse

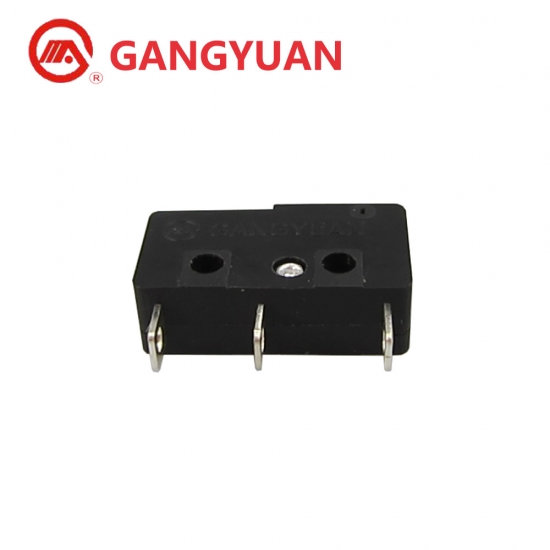

10A 125/250VAC Electronic Micro Switch for Mousec

  • Brand:

    Gangyuan
  • Item No.:

    G15-10SM-150
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

10A 125/250VAC Electronic Micro Switch for Mouse

Basic Information

Model Name:

Micro Switch

Model No.:

G15-10SM-150

Dimension:

12.8mm*5.8mm

Operating Temperature

-25℃~85℃

Operating Relative Humidity

≤85℃

Dielectric withstanding Voltage

1500V AC 1Min

Voltage Rating

125/250V AC

Current Rating

10A

Operation Force

40±20gf

Soldering Temerature

260±5℃.5S

Circuit Code:

SPDT


Dimension


push button micro switches.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
