micro switch 5e4 25t125

10a 250v zippy push button micro switch  5e4 25t125

  • Brand:

    Gangyuan
  • Item No.:

    G15-10SM04
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

10a 250v zippy push button micro switch 5e4 25t125



Product Description:



Model Name:

zippy waterproof push button micro switch 26A 250v 5e4 t125

Model No.:

G15-10SM04

Dimension:

44X34X34 cm

Operating force:

40±20gf

Life cycles:

100,000 Cycles

Waterproof:



High Level

Working tempreture:

-25℃~+125℃

DC rating:

10A 125/250VAC

Insulation resistance:

100MΩ Min.

Operating relative humidity

≤85%

Contact resistance:

100m Ω max.



Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:   CE,ROHS, REACH, ENEC,
 Features:  High quality, durable using life

750px * 400px
A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Product

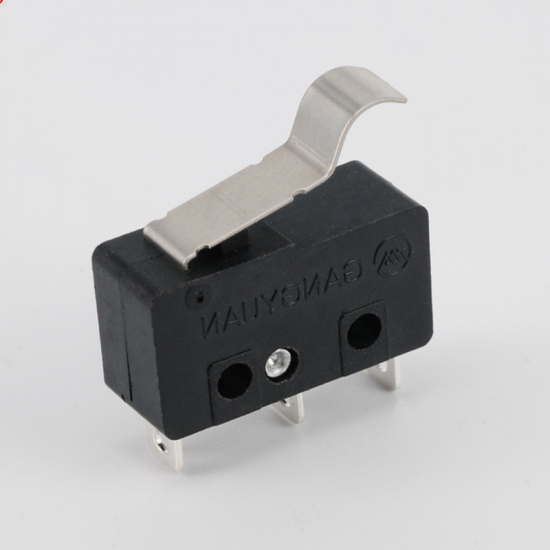

Limit Micro Switch
