micro switch 10a 250vac

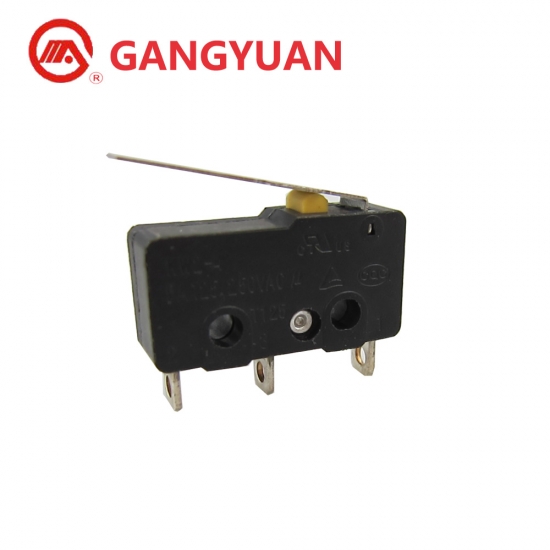

Long life expectancy kw2 momentary limit micro switch 10a 250vac

  • Brand:

    Gangyuan
  • Item No.:

    KW2-4-03N-40-2
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    50 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

Long life expectancy kw2 momentary limit micro switch 10a 250vac

Basic Information

Model Name:

Micro Switch

Model No.:

KW2-4-03N-40-2

Dimension:

19.8x6mm

Operating Temperature

-25℃~85℃

Voltage Rating

125/250V AC

Operation Force

40±10gf

Life expectancy

1,000,000 cycles

Contact resistance

≤100mΩ


Dimension

micro switch a division of minneapolis honeywell regulator co freeport illinois 117070.jpg

HTB1SJKnfdHJFXa7.png HTB1tgQF.png

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
